Installation Procedure

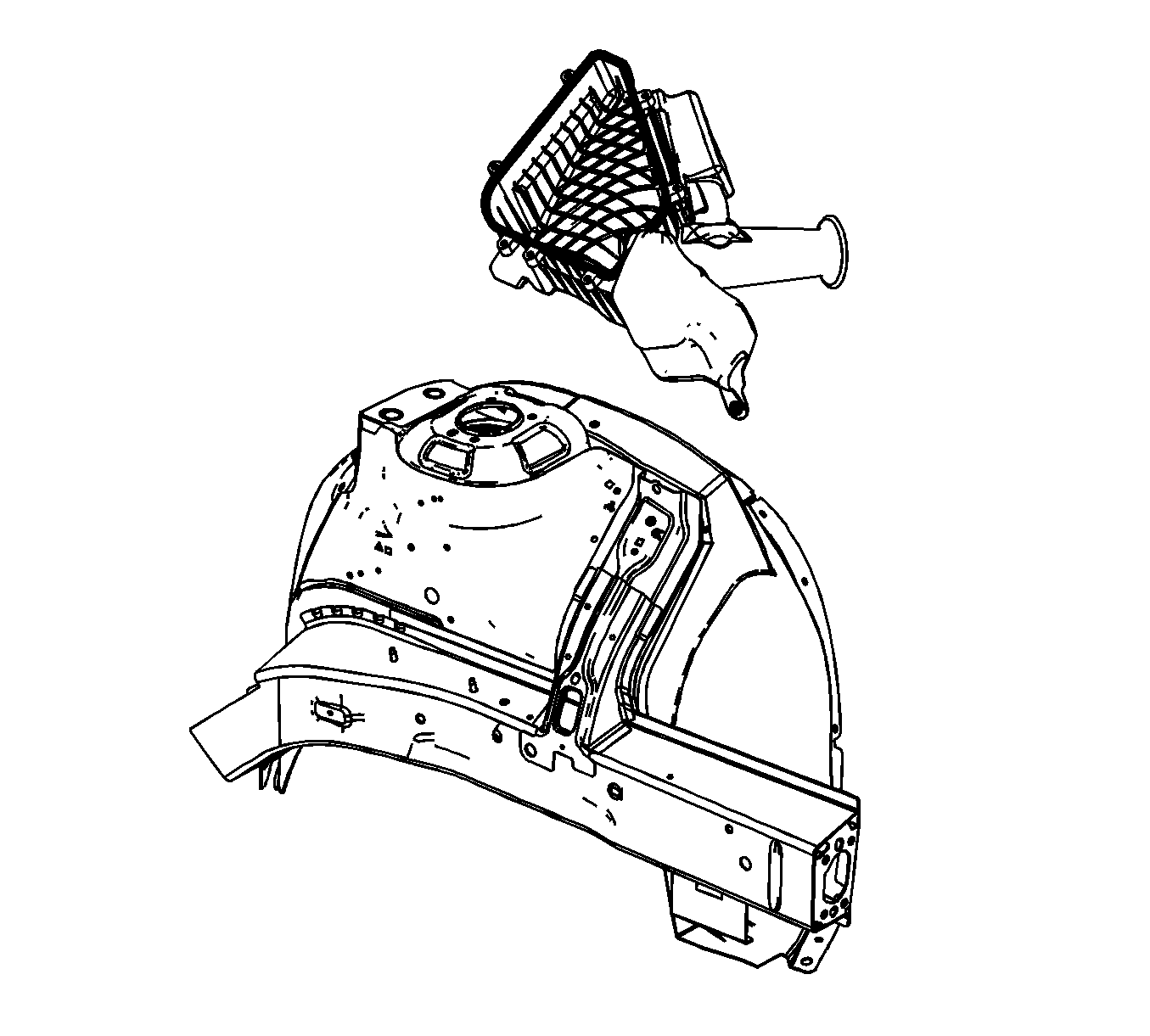

    Fig 1: Identifying Air Cleaner Lower Housing
    GM1860637Courtesy of GENERAL MOTORS COMPANY
  1. Position the air cleaner lower housing to the side rail.
    2. Fig 2: Identifying ECM Retaining Tab
    GM1857963Courtesy of GENERAL MOTORS COMPANY
  2. Position and install the ECM to the bracket.

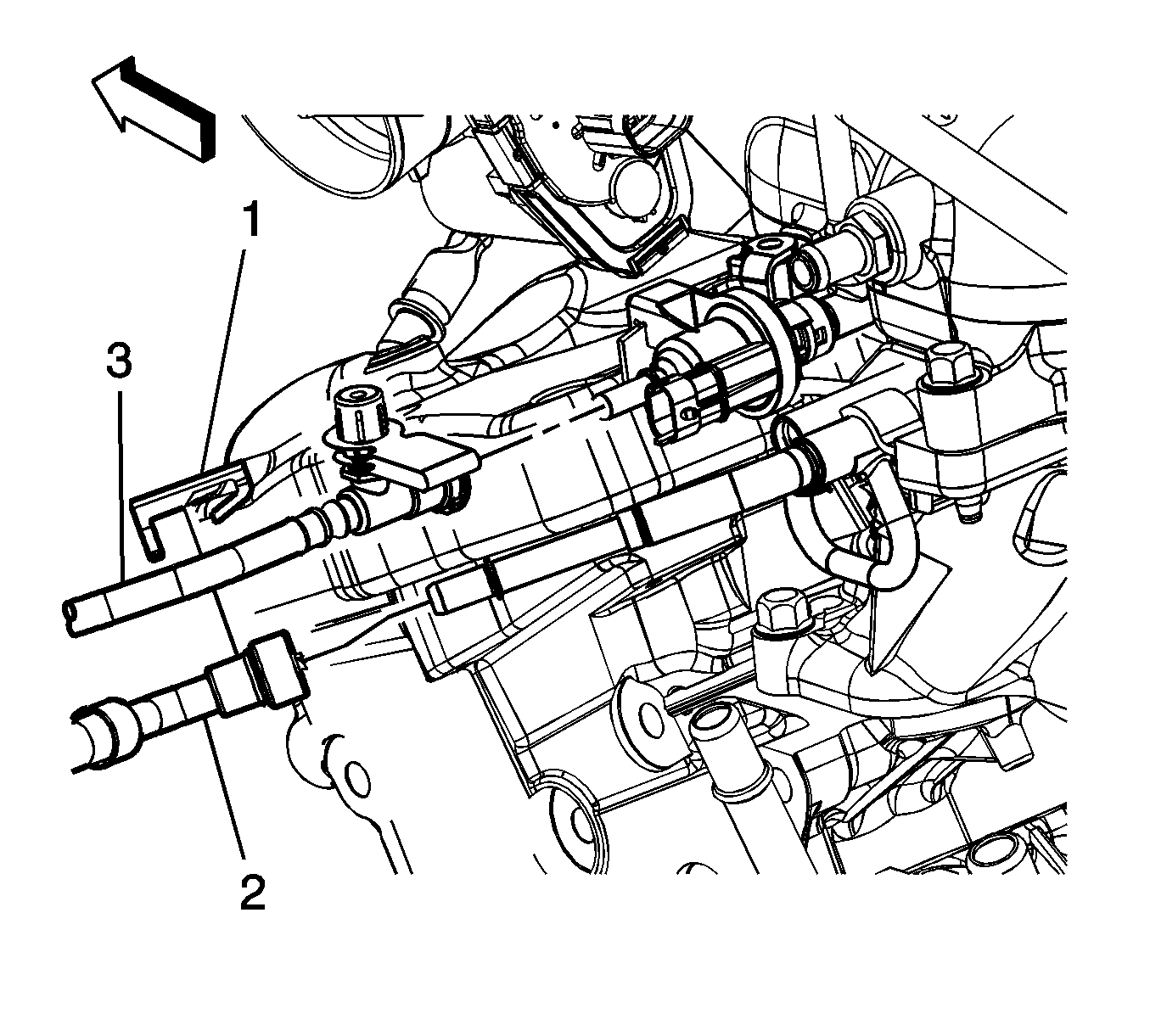

    3. Fig 3: View Of EVAP Pipe
    GM1860283Courtesy of GENERAL MOTORS COMPANY
  3. Connect the evaporative emission (EVAP) pipe (3) quick connect fitting to the EVAP purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Connect the fuel feed pipe (2) quick connect fitting to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
    5. Fig 4: Identifying Hood Release Cable Clip
    GM1926994Courtesy of GENERAL MOTORS COMPANY
  5. Install the hood release cable clip (1) to the air cleaner lower housing.

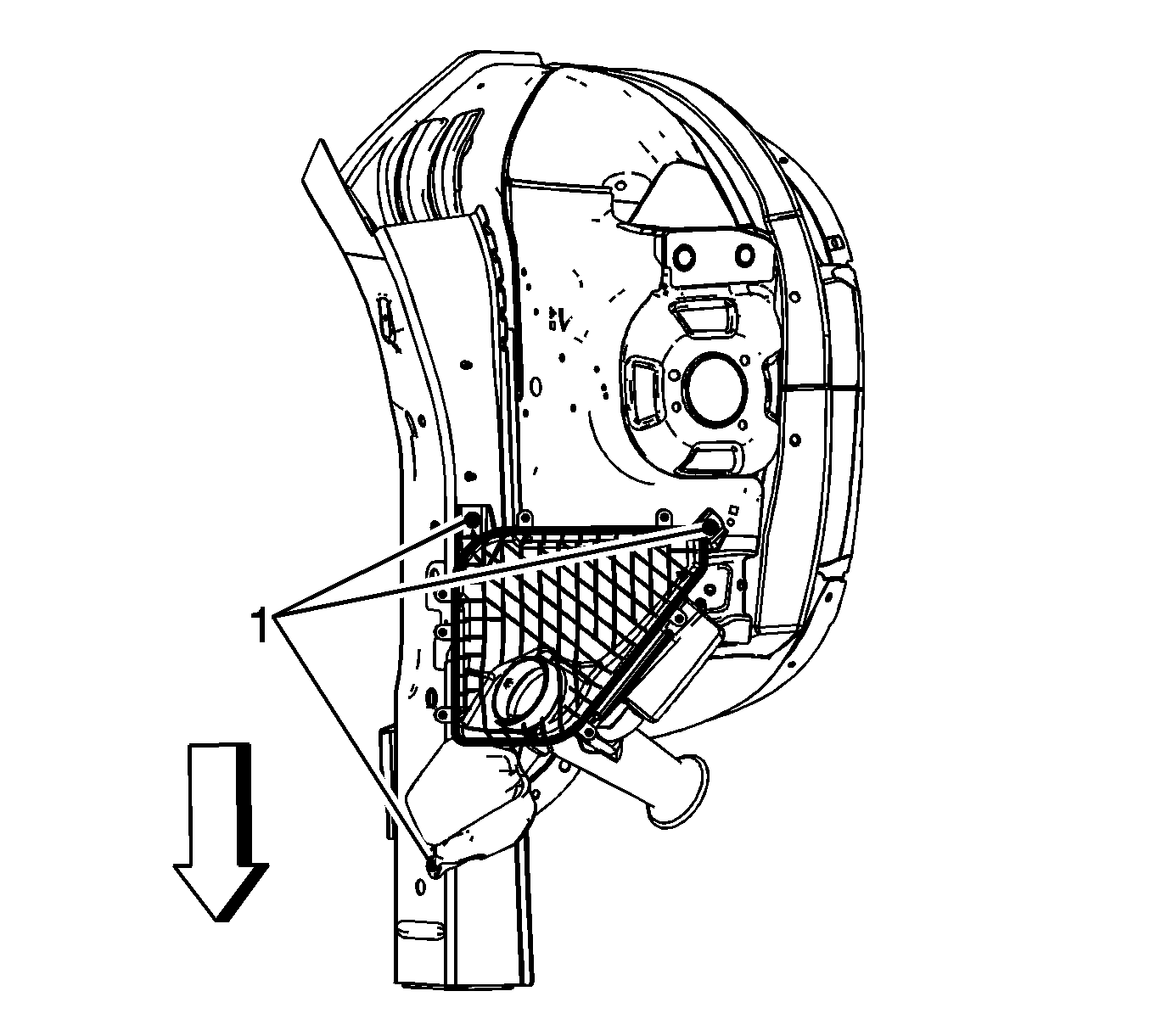

    6. Fig 5: Identifying Air Cleaner Lower Housing Screws
    GM1860635Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  6. Install the air cleaner lower housing screws (1).

    Tighten

    Tighten the screws to 9 N.m (80 lb in).

  7. Install the air cleaner element. Refer to Air Cleaner Element Replacement .
