Installation Procedure

    Fig 1: View Of CMP Sensor Bolt & Sensor
    GM1860459Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the CMP sensor (2) and bolt. Tighten the bolt to 10 N.m (89 lb in).

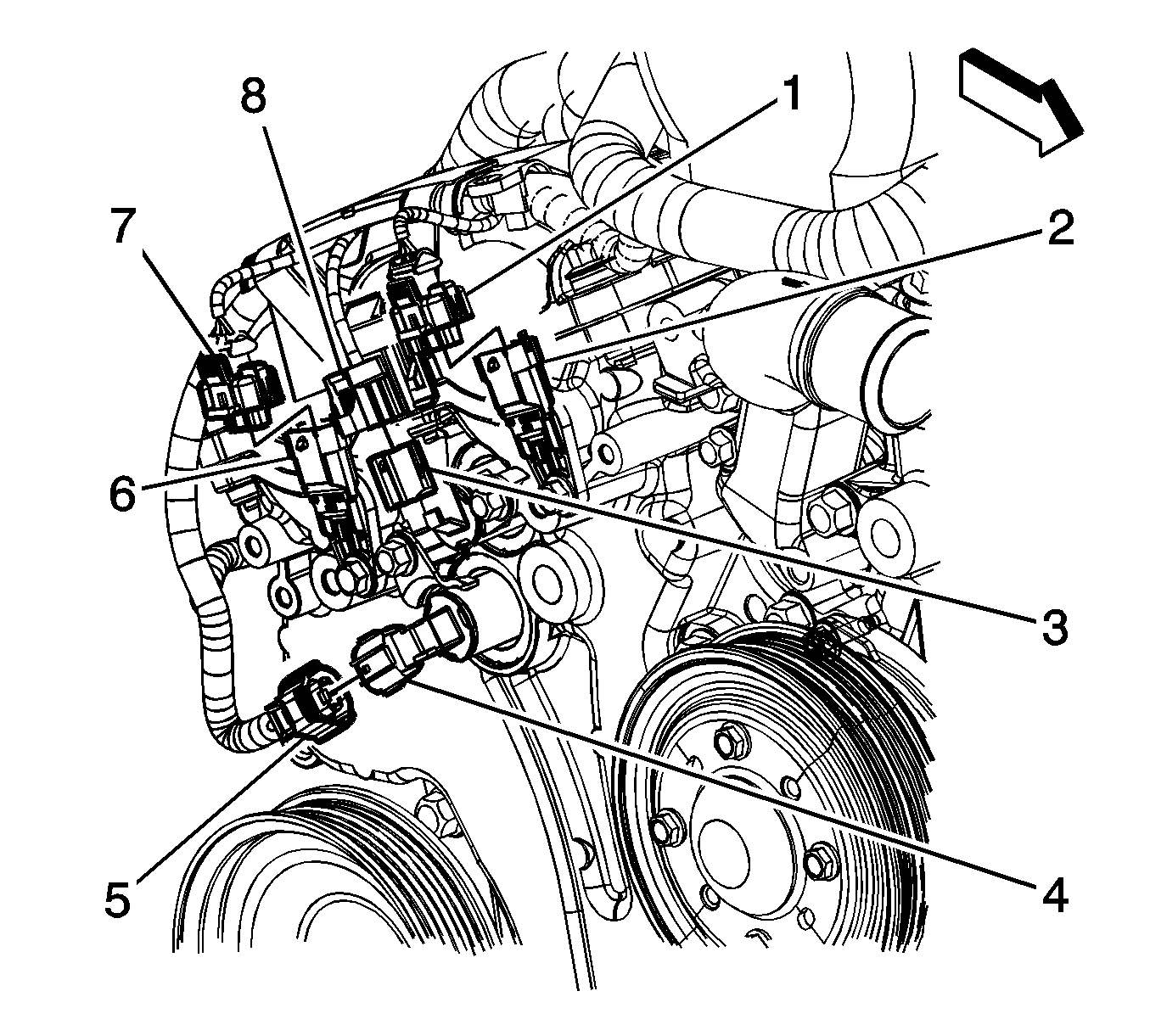

    2. Fig 2: Identifying Intake & Exhaust Camshaft Position (CMP) Sensors
    GM1860428Courtesy of GENERAL MOTORS COMPANY
  2. Connect the engine wiring harness electrical connector (1) to the bank 1 intake CMP sensor (2).
