Installation Procedure

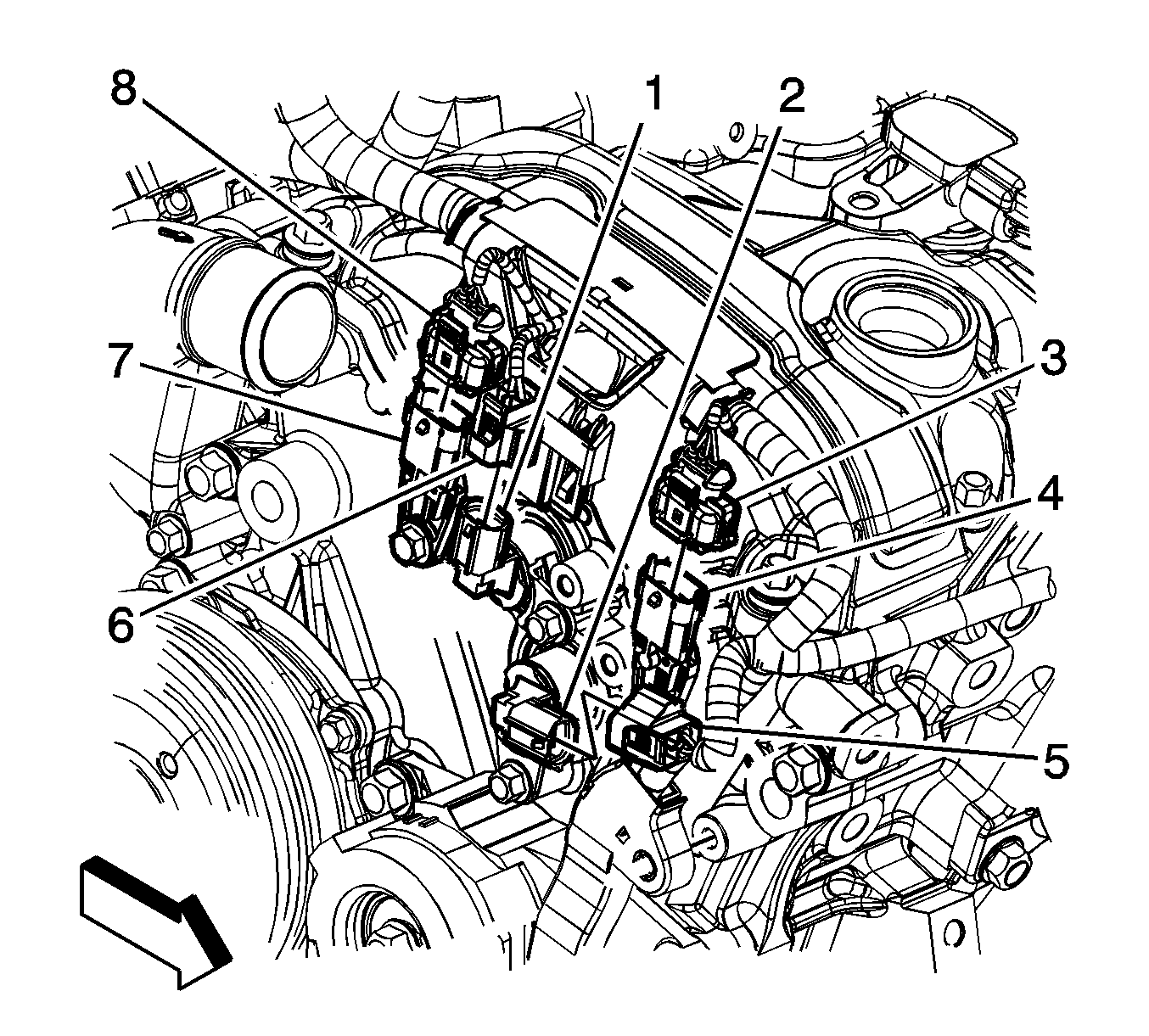

Fig 1: View Of CMP Sensor Bolt & Sensor

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the CMP sensor (3) and bolt.
Tighten

Tighten the bolt to 10 N.m (89 lb in).

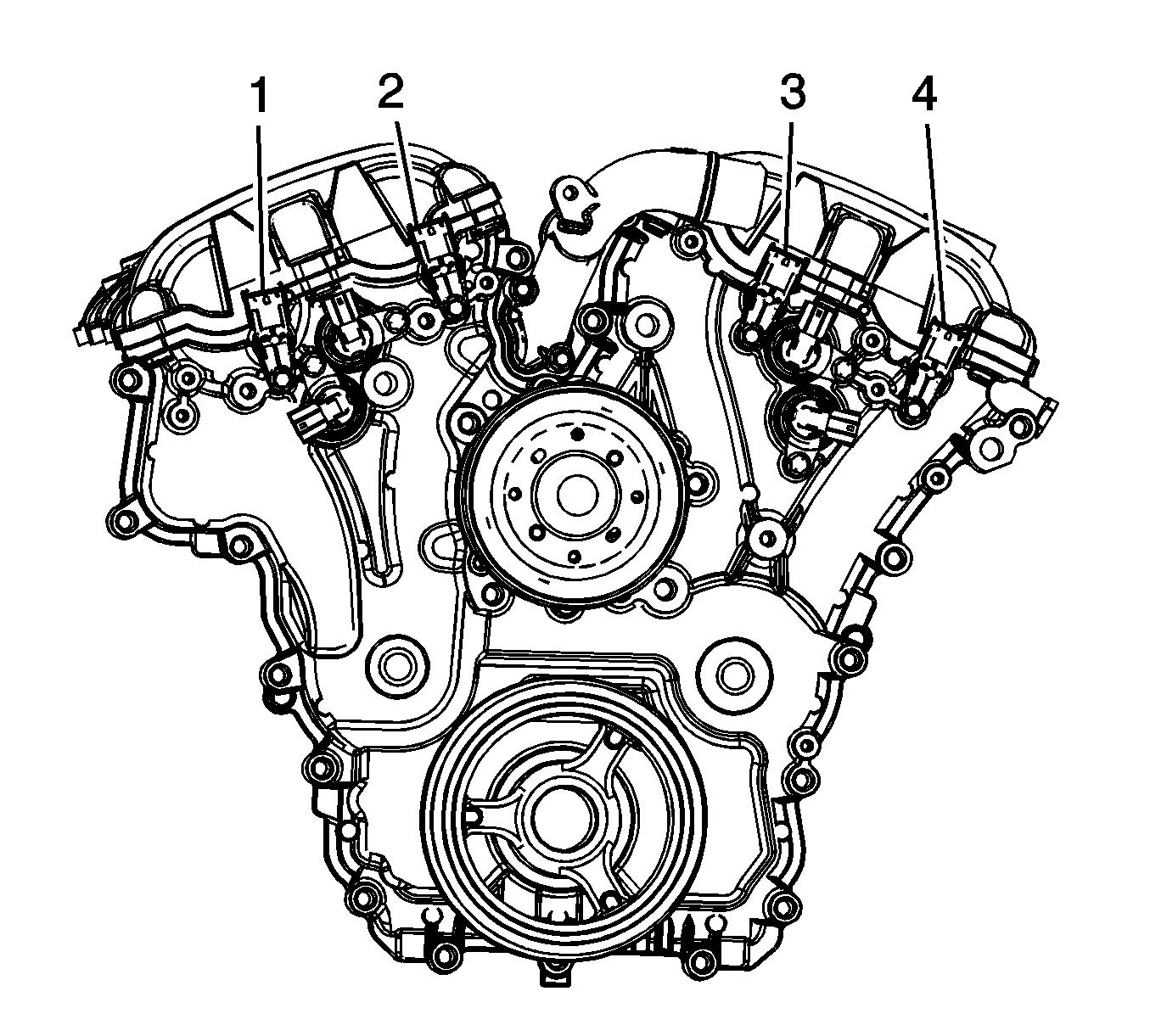

Fig 2: Identifying Intake & Exhaust Camshaft Position (CMP) Sensors

Courtesy of GENERAL MOTORS COMPANY

Connect the engine wiring harness electrical connector (8) to the bank 2 intake CMP sensor (7).

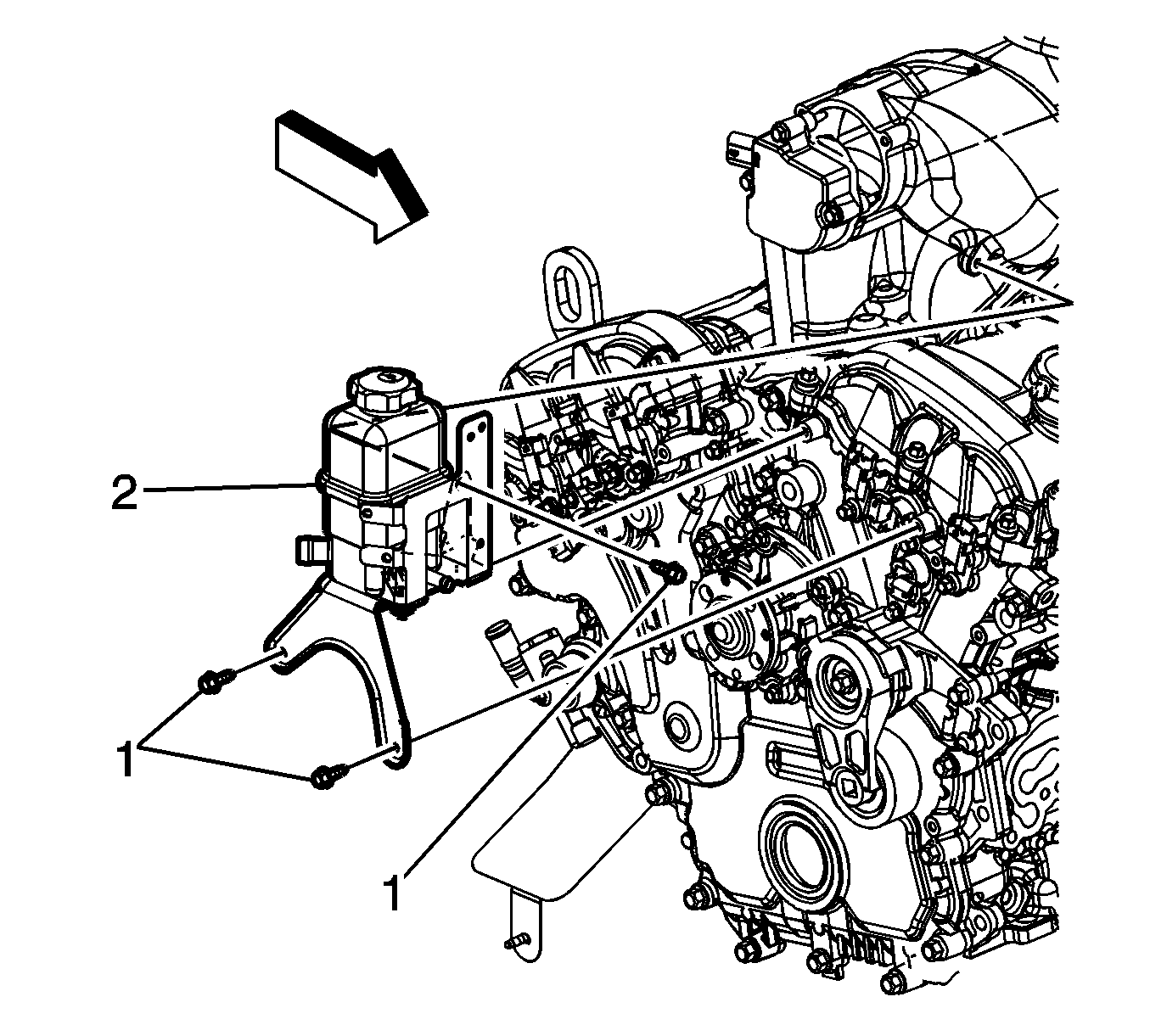

Fig 3: Identifying Remote Power Steering Fluid Reservoir, Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Position and install the power steering fluid reservoir bracket (2).
Install the power steering fluid reservoir bracket bolts (1).
Tighten

Tighten the bolts to 9 N.m (8 lb in).
Install the radiator inlet hose to the water outlet. Refer to Radiator Inlet Hose Replacement .
Install the engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement - Right Side .
