Fuel Pipe Shield Replacement

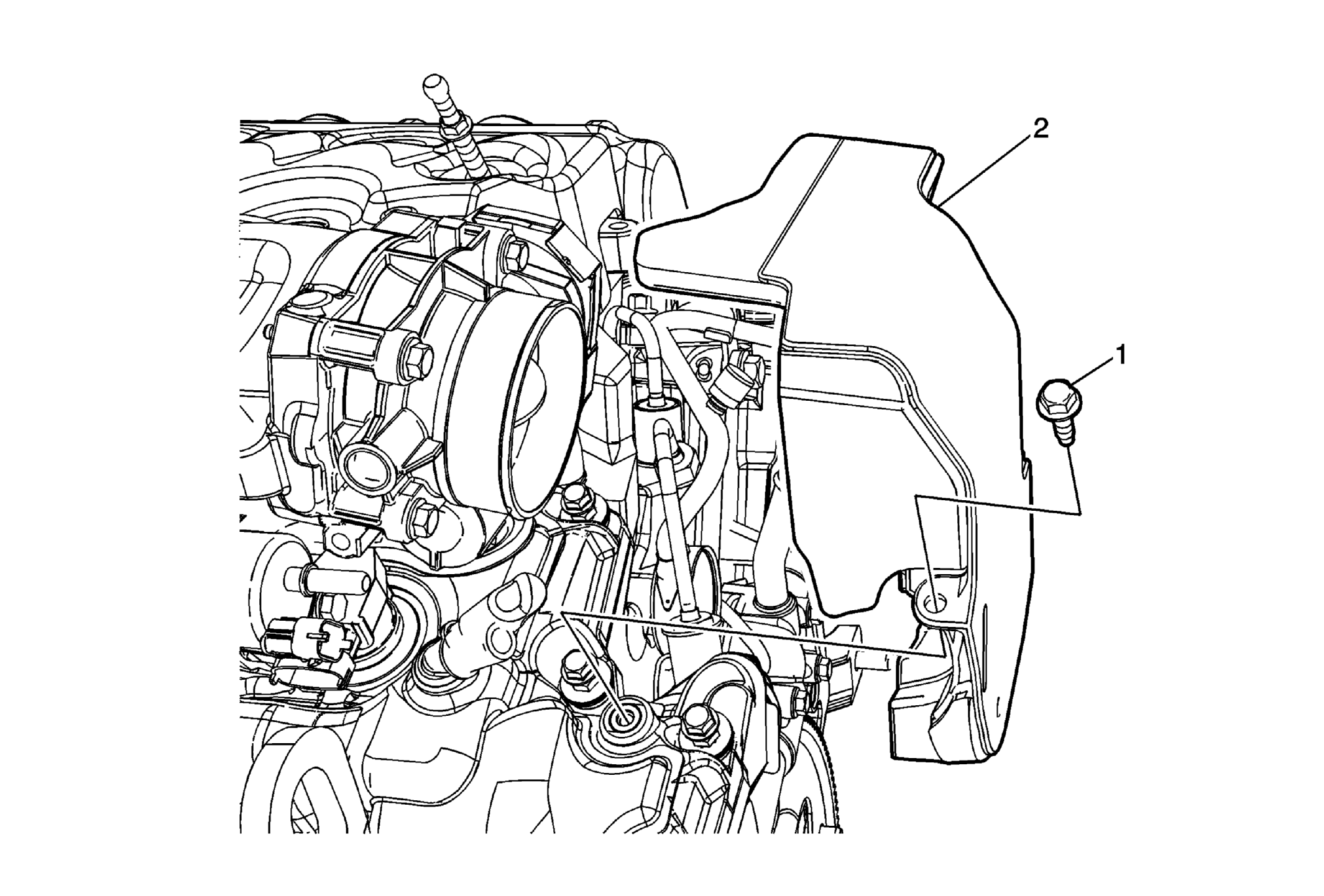

Fig 1: View Of Fuel Pipe Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel injection sight shield. Refer to Fuel Injector Sight Shield Replacement . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Fuel Pump Shield Bolt CAUTION: Refer to Fastener Caution . Tighten 10Y (89 lb in)
2	Fuel Pump Shield

Callout

Component Name

Preliminary Procedures

Remove the fuel injection sight shield. Refer to Fuel Injector Sight Shield Replacement .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Fuel Pump Shield Bolt

CAUTION:

Tighten
10Y (89 lb in)

Fuel Pump Shield
