Fuel Pump Fuel Feed Hose Replacement

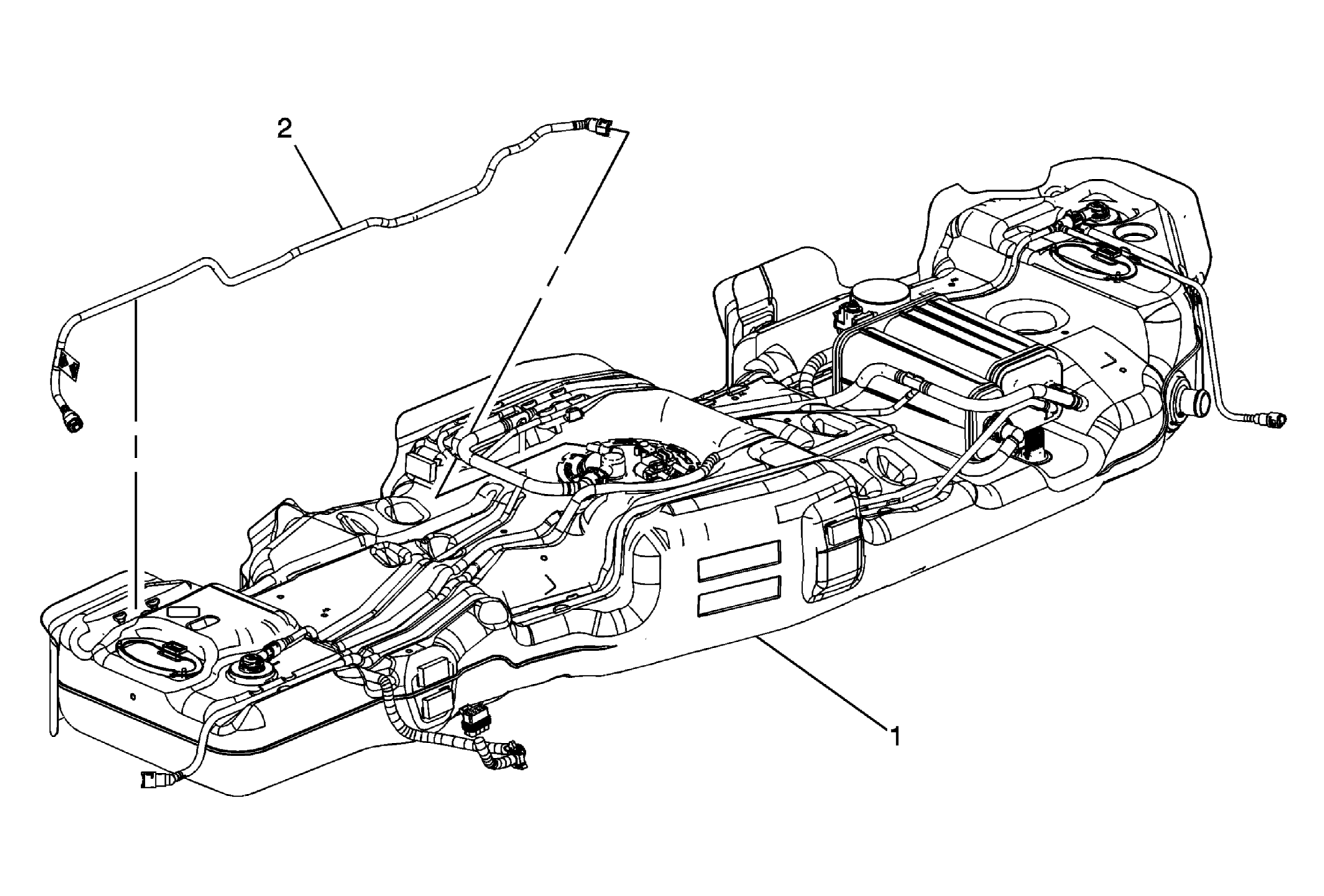

Fig 1: View Of Fuel Pump Fuel Feed Hose
GM1860252Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Fuel Feed Hose Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the fuel tank. Refer to Fuel Tank Replacement .
  2. Remove the foam pad insulators.
1 Fuel Tank
2 Fuel Pump Fuel Feed Hose

Procedure

  1. Disconnect the quick connect fitting from the module. Refer to Plastic Collar Quick Connect Fitting Service .
  2. Disengage from the tank retaining features.
  3. When installing, route under the evaporative emission (EVAP) canister vent front pipe.
