Fuel Tank Pressure Sensor Replacement

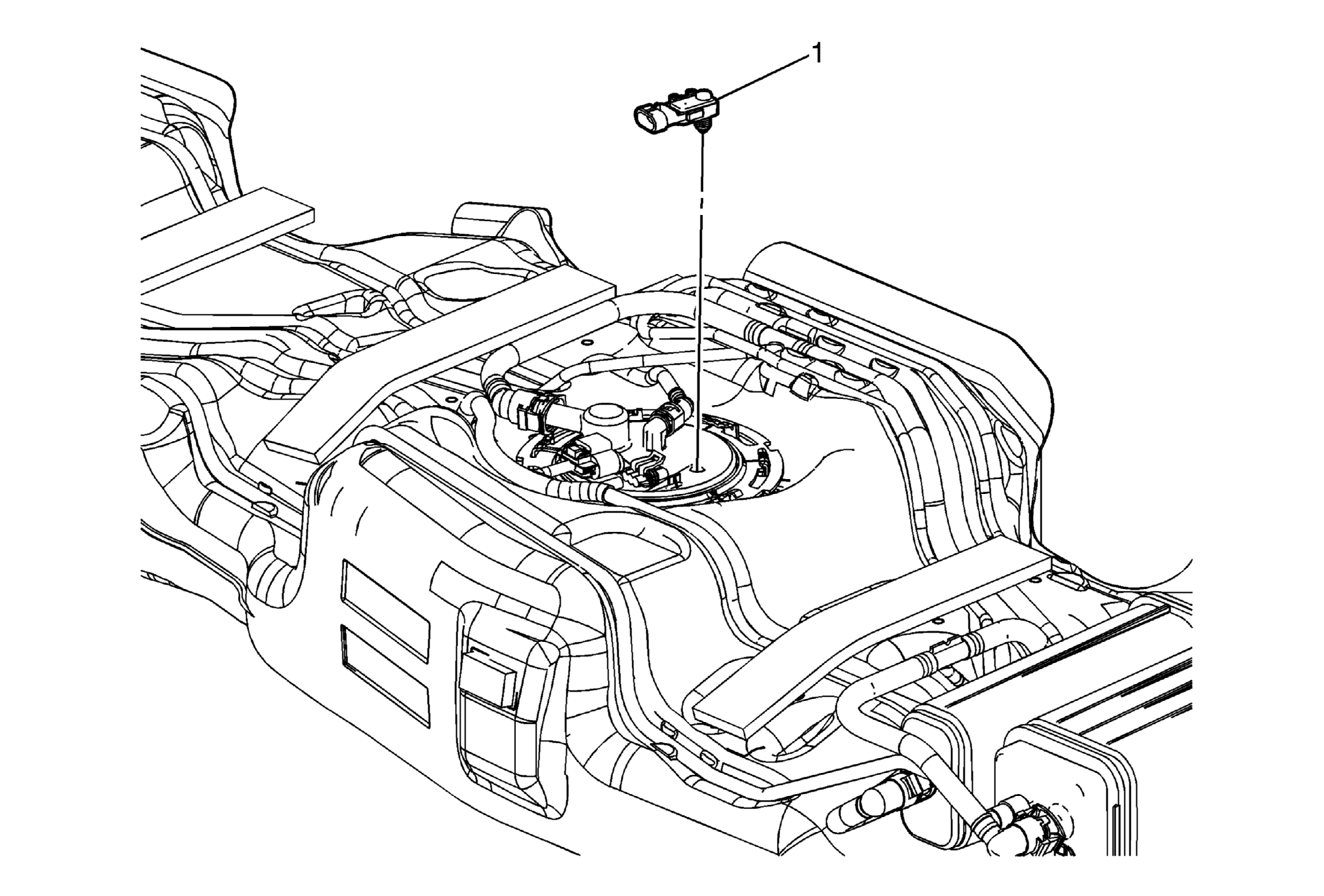

Fig 1: Identifying Fuel Tank Pressure Sensor
GM1860138Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Pressure Sensor Replacement

Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the fuel sender wiring harness electrical connector.
