Removal Procedure

CAUTION:

Refer to Heated Oxygen and Oxygen Sensor Caution .

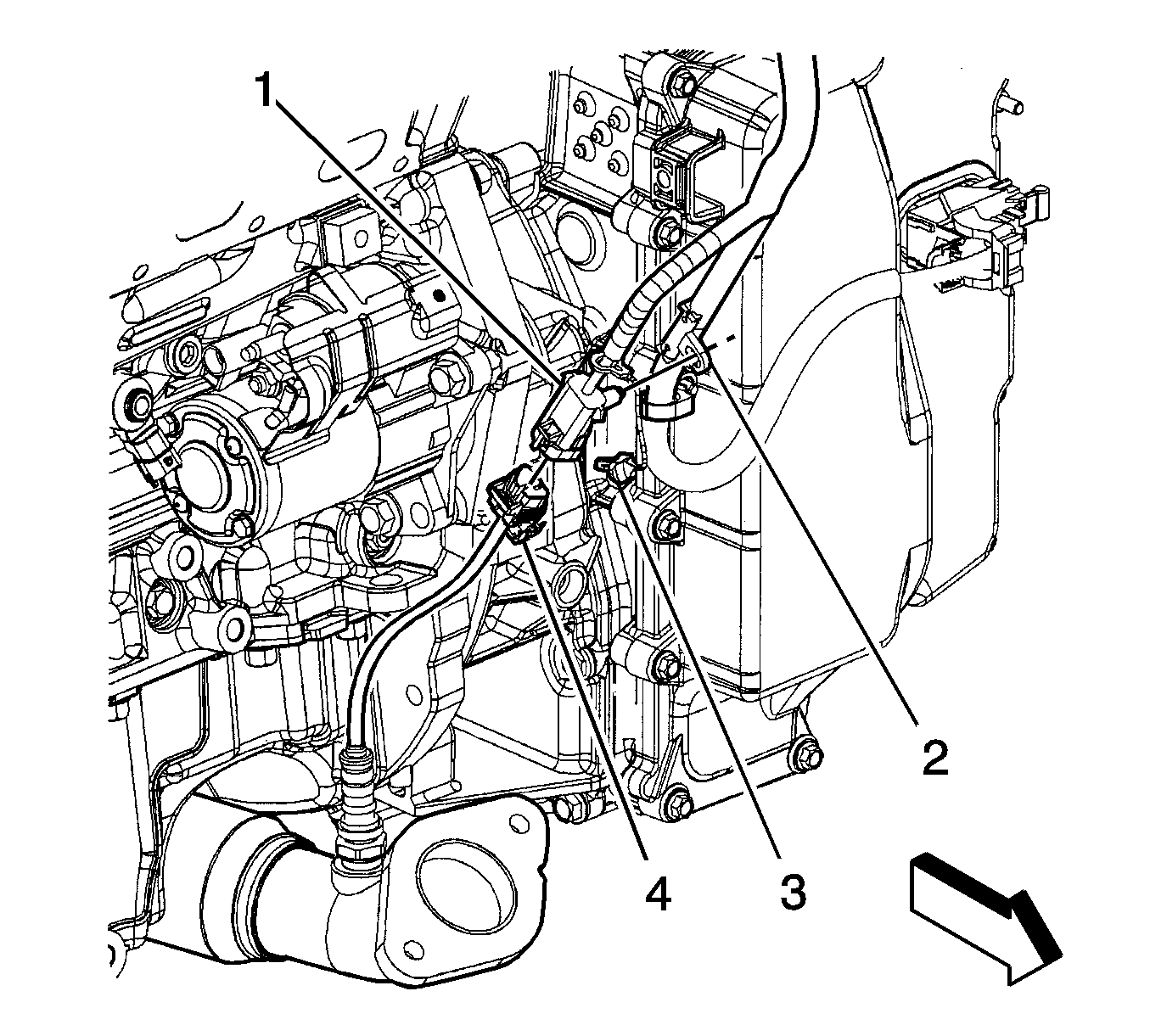

    Fig 1: Identifying Heated Oxygen Sensor Electrical Connector
    GM1861456Courtesy of GENERAL MOTORS COMPANY
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the connector position assurance (CPA) retainer (3).
  3. Disconnect the heated oxygen sensor (HO2S) electrical connector (4) from the engine wiring harness electrical connector (1).
    4. Fig 2: Identifying Heated Oxygen Sensors & Exhaust Manifold
    GM1858130Courtesy of GENERAL MOTORS COMPANY
  4. Remove the HO2S (4) from the exhaust pipe.
