Installation Procedure

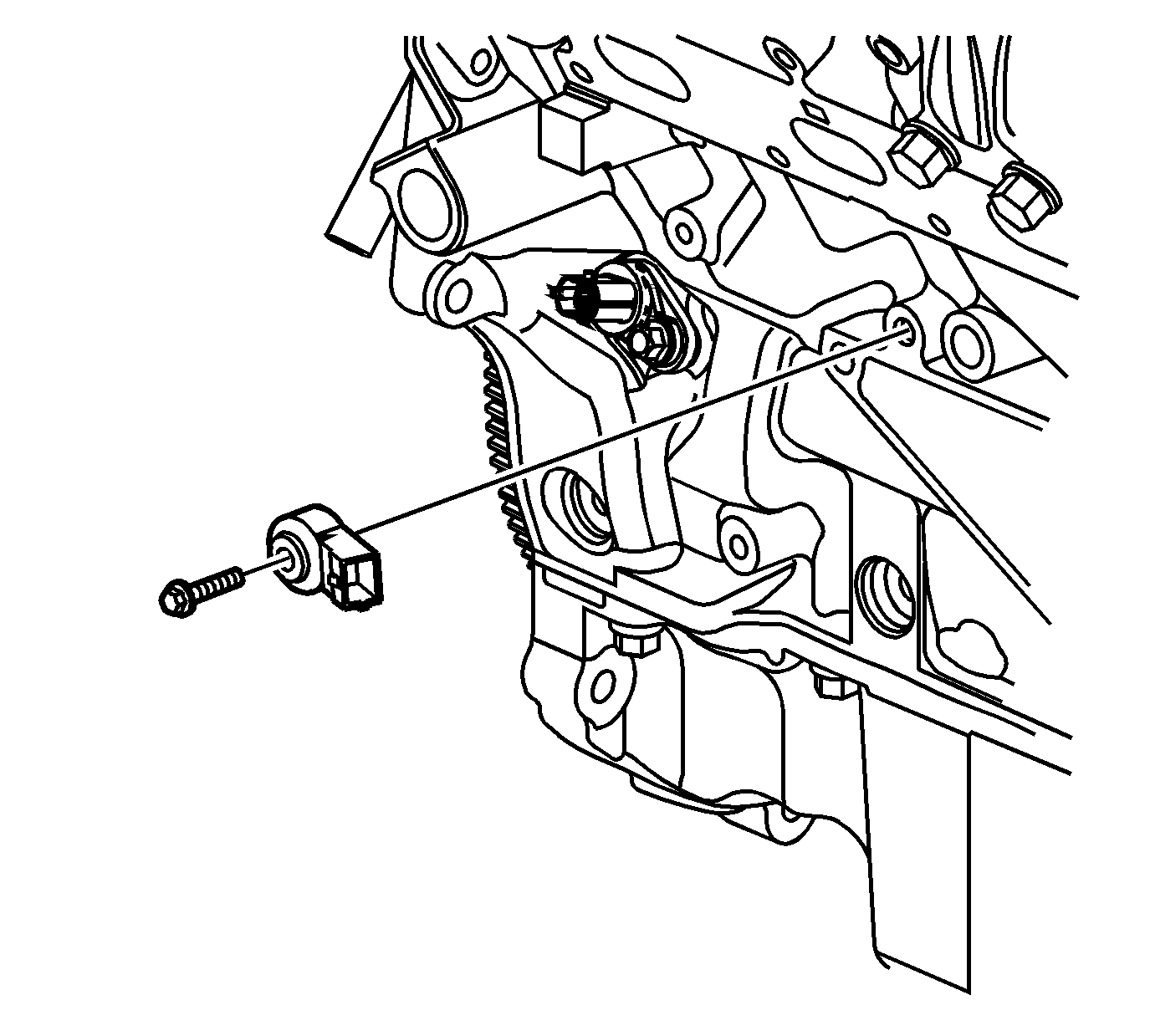

    Fig 1: View Of Right Knock Sensor & Bolt
    GM860801Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the knock sensor and tighten the knock sensor bolt.

    Tighten

    Tighten the bolt to 23 N.m (17 lb ft).

    2. Fig 2: Identifying Knock Sensor & crankshaft position (CKP) sensor Electrical Connectors
    GM1860405Courtesy of GENERAL MOTORS COMPANY
  2. Connect the engine wiring harness electrical connector (1) to the bank 1 knock sensor (2).
  3. Install the exhaust manifold lower heat shield. Refer to Exhaust Manifold Lower Heat Shield Replacement .
