Installation Procedure

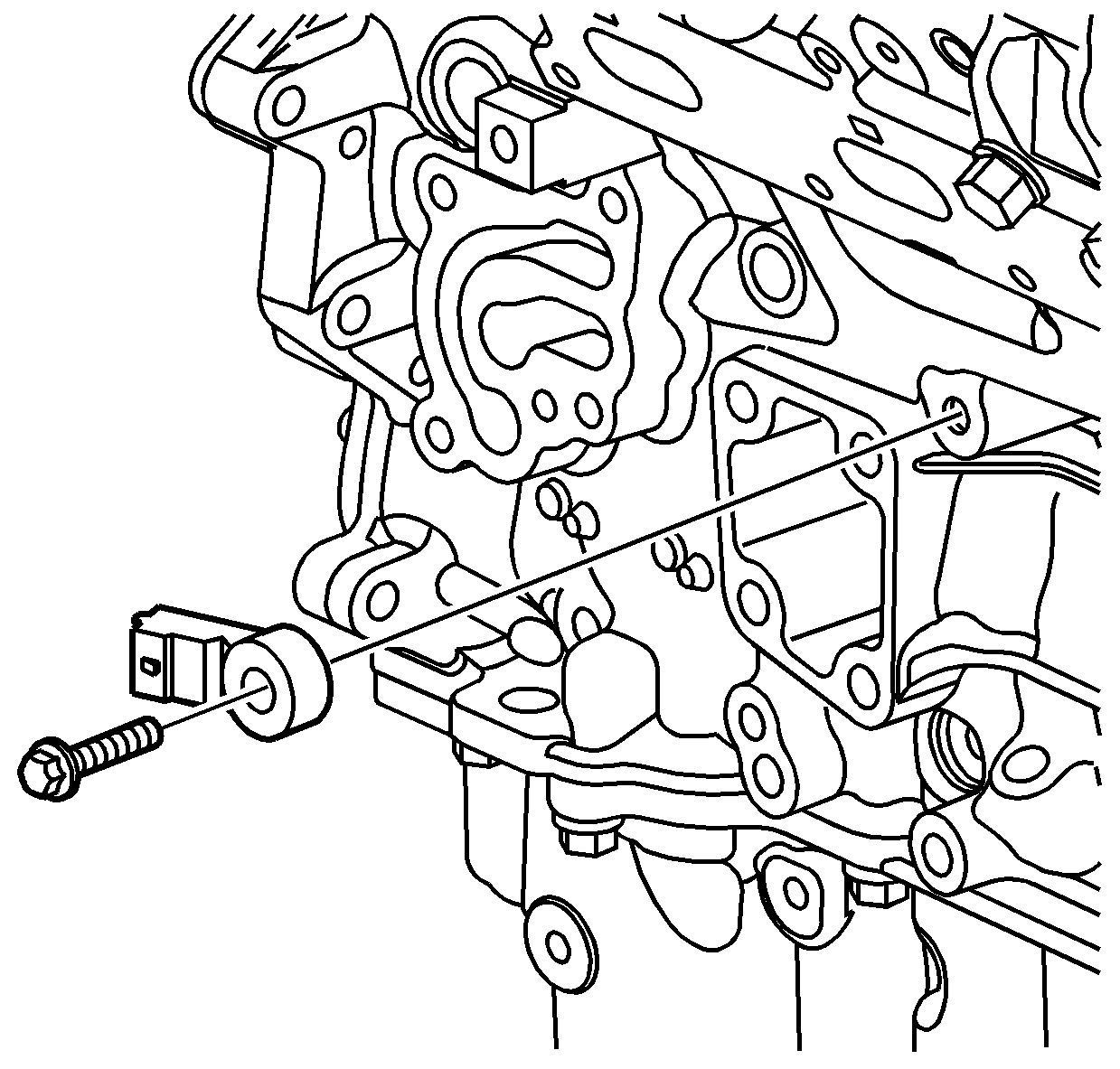

    Fig 1: View Of Left Knock Sensor
    GM860802Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the knock sensor and tighten the knock sensor bolt.

    Tighten

    Tighten the bolt to 23 N.m (17 lb ft).

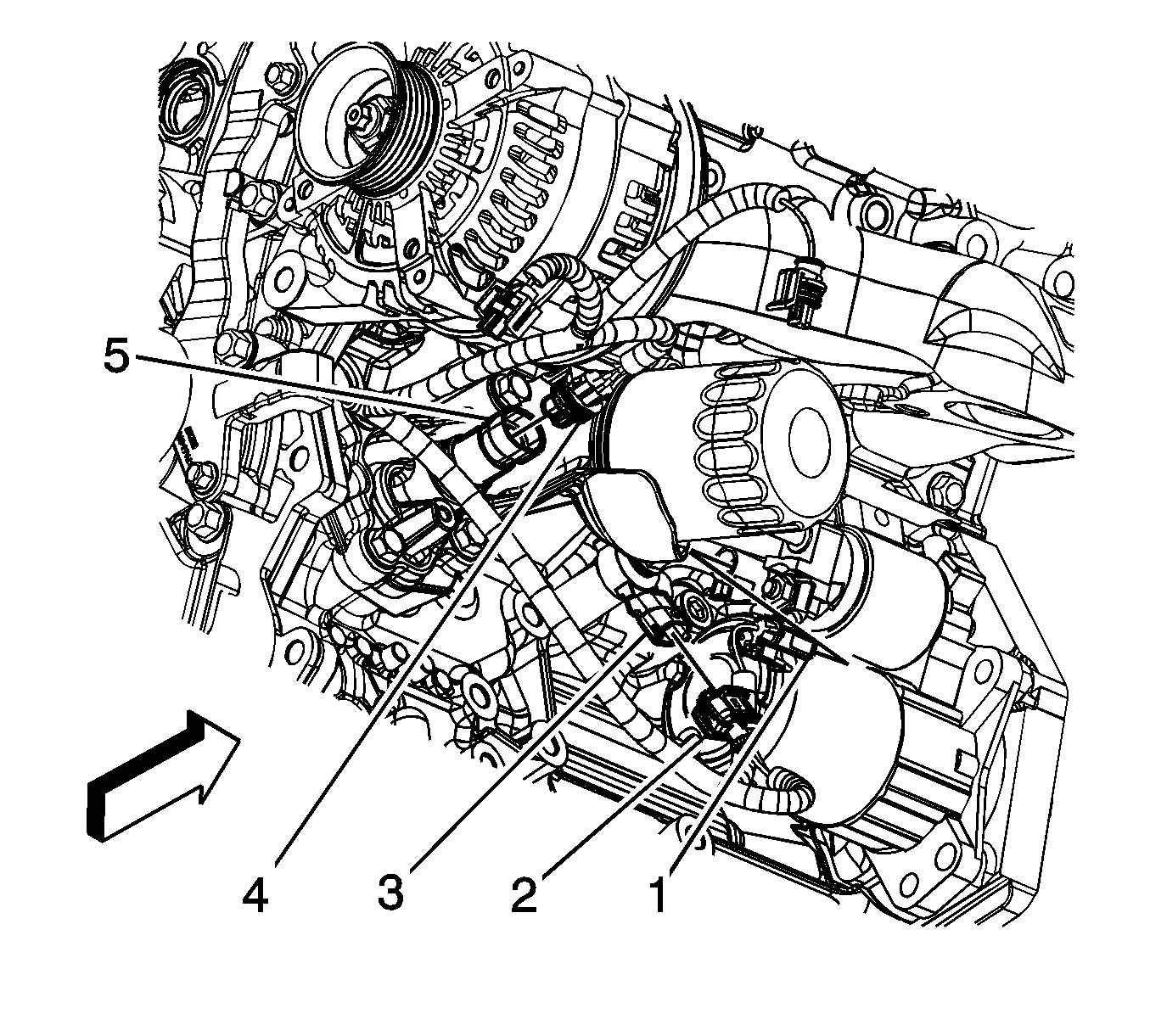

    2. Fig 2: Identifying Engine Wiring Harness Electrical Connector
    GM1860484Courtesy of GENERAL MOTORS COMPANY
  2. Connect the engine wiring harness electrical connector (2) to the bank 2 knock sensor (3).
  3. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Install a NEW engine oil filter. Refer to Engine Oil And Oil Filter Replacement .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
