Manifold Absolute Pressure Sensor Replacement

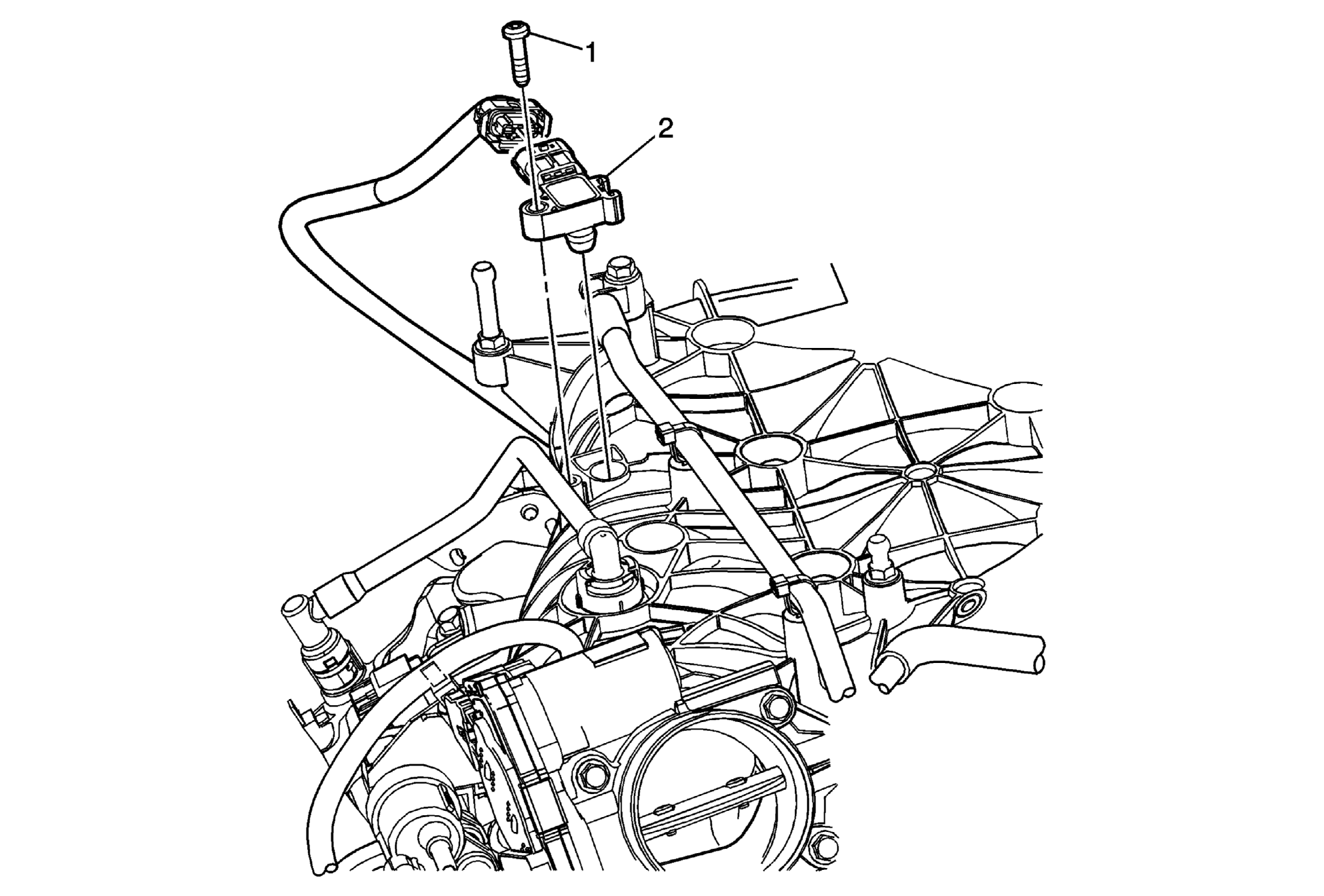

Fig 1: Manifold Absolute Pressure Sensor
GM2193078Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor Replacement

Callout Component Name
Preliminary Procedure
Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
1 Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Manifold Absolute Pressure Sensor
Procedure
Disconnect the electrical connector.
