Removal Procedure

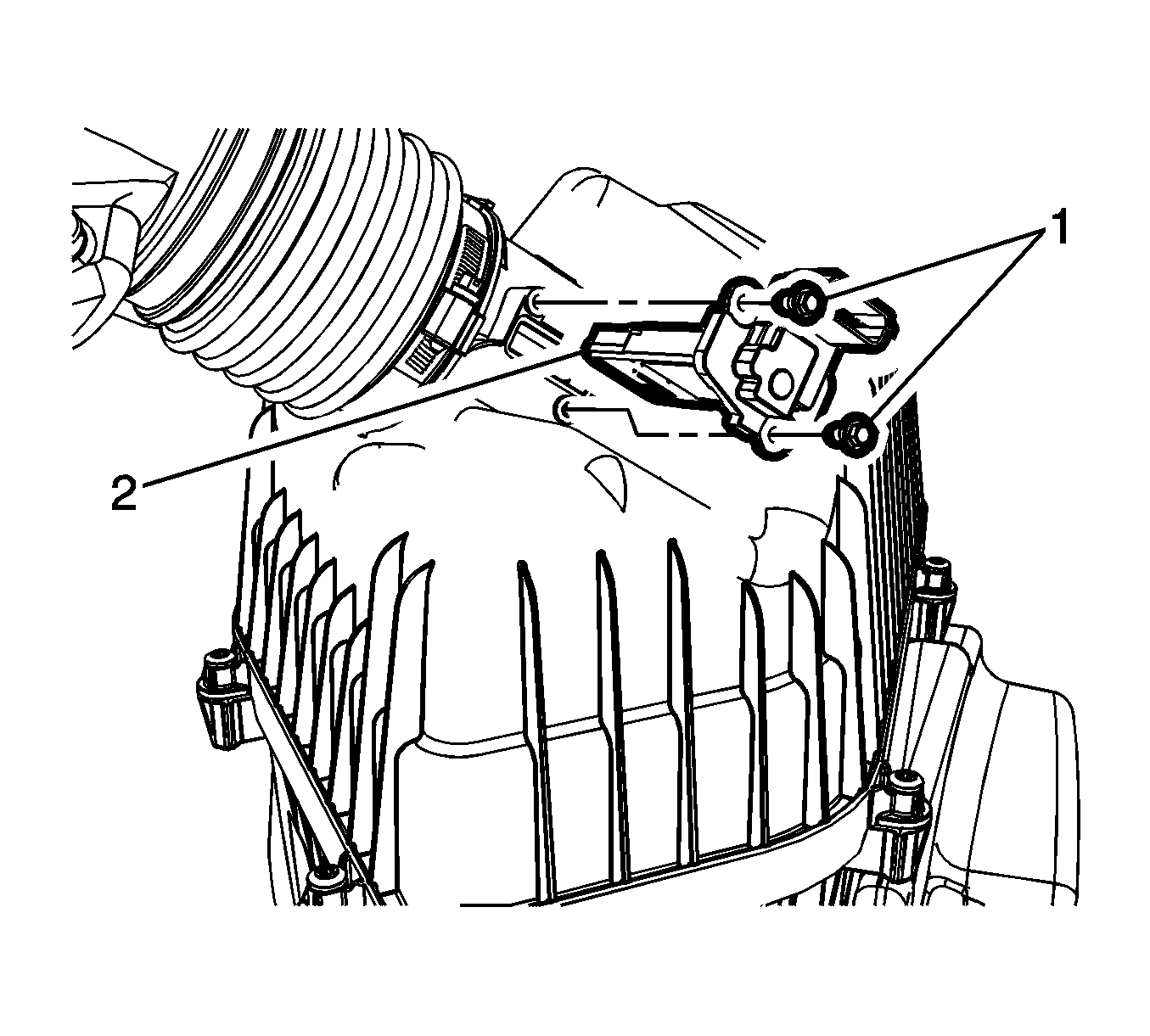

    Fig 1: MAF/IAT Sensor Screws
    GM2667675Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the engine wiring harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.
  2. Remove the MAF/IAT sensor screws (1).
  3. Remove the MAF/IAT sensor (2) from the air cleaner assembly.
