Installation Procedure

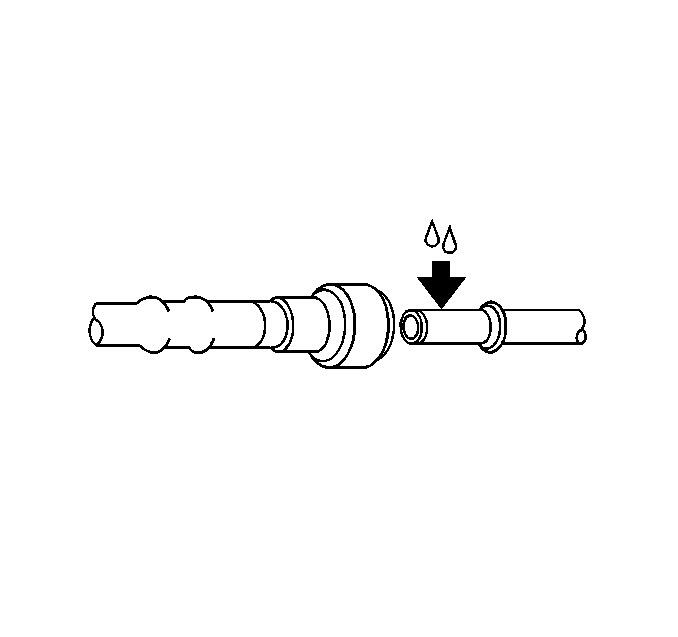

    Fig 1: Oiling Male Pipe Ends (Metal Collar)
    GM12784Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Fuel Pipe Fitting Warning .

  1. Apply a few drops of clean engine oil to the male pipe end.

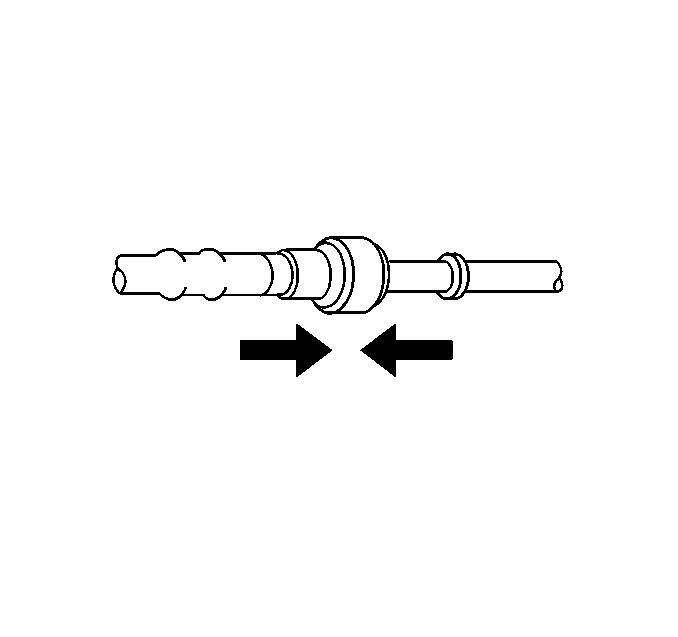

    2. Fig 2: View Of Connectors (Metal Collar)
    GM12786Courtesy of GENERAL MOTORS COMPANY
  2. Push both sides of the fitting together in order to snap the retaining tabs into place.

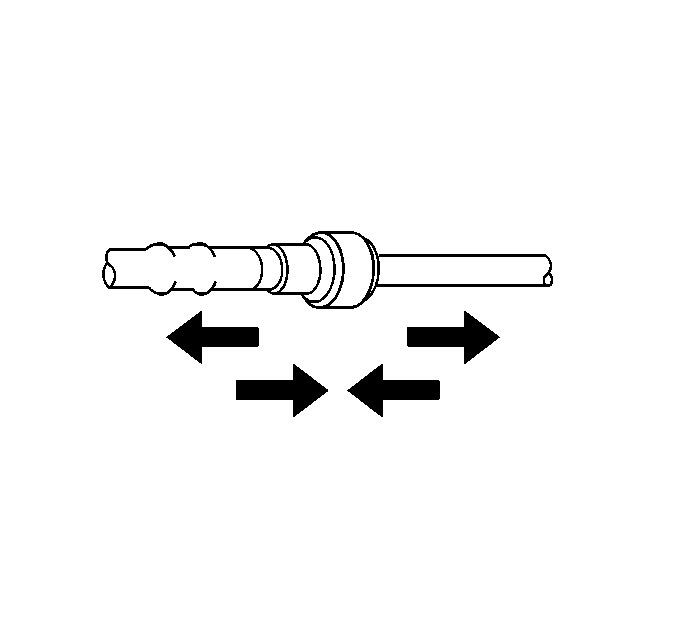

    3. Fig 3: Ensuring Connection (Metal Collar) Is Secure
    GM12787Courtesy of GENERAL MOTORS COMPANY
  3. Once installed, pull on both sides of the fitting in order to make sure the connection is secure.

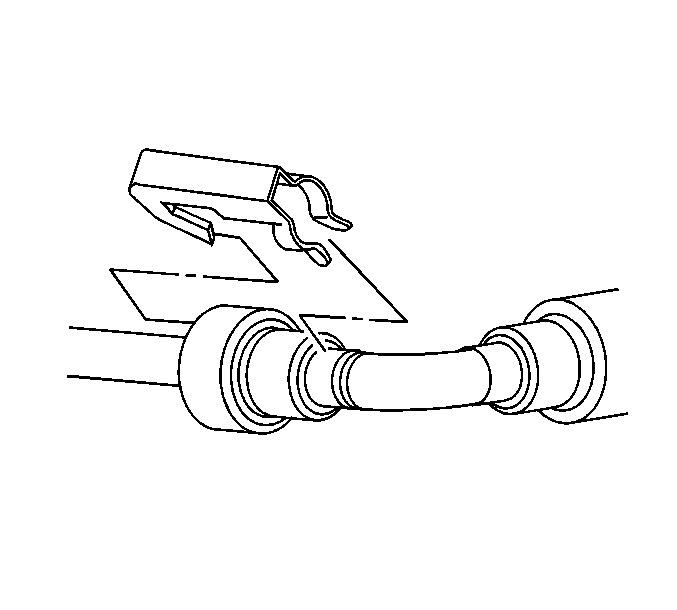

    4. Fig 4: View Of Quick-Connect Fitting Retainer (Metal Collar)
    GM730809Courtesy of GENERAL MOTORS COMPANY
  4. Install the retainer to the quick-connect fitting.
