Auxiliary Blower Control Module Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

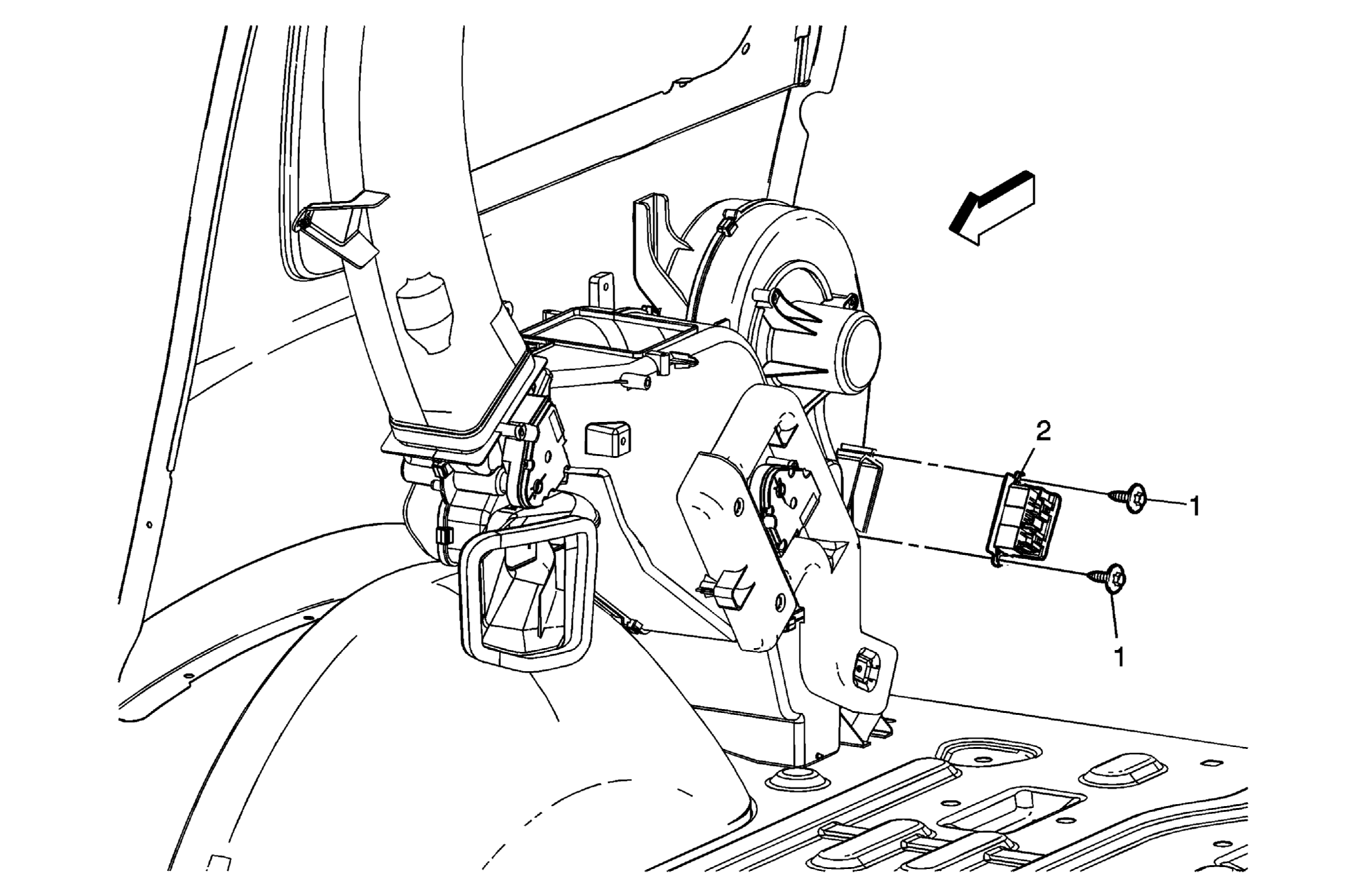

Fig 1: Auxiliary Blower Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right rear quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5) , Quarter Lower Rear Trim Panel Replacement (Traverse with TB4) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB5) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB4) , Quarter Lower Rear Trim Panel Replacement (Acadia with TB5) or Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) . Disconnect the blower motor control module electrical connector.
1	Blower Motor Resistor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Blower Motor Control Module

Callout

Component Name

Preliminary Procedures

Remove the right rear quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5) , Quarter Lower Rear Trim Panel Replacement (Traverse with TB4) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB5) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB4) , Quarter Lower Rear Trim Panel Replacement (Acadia with TB5) or Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
Disconnect the blower motor control module electrical connector.

Blower Motor Resistor Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Blower Motor Control Module
