HVAC Control Module Replacement
WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
HVAC Control Module Replacement

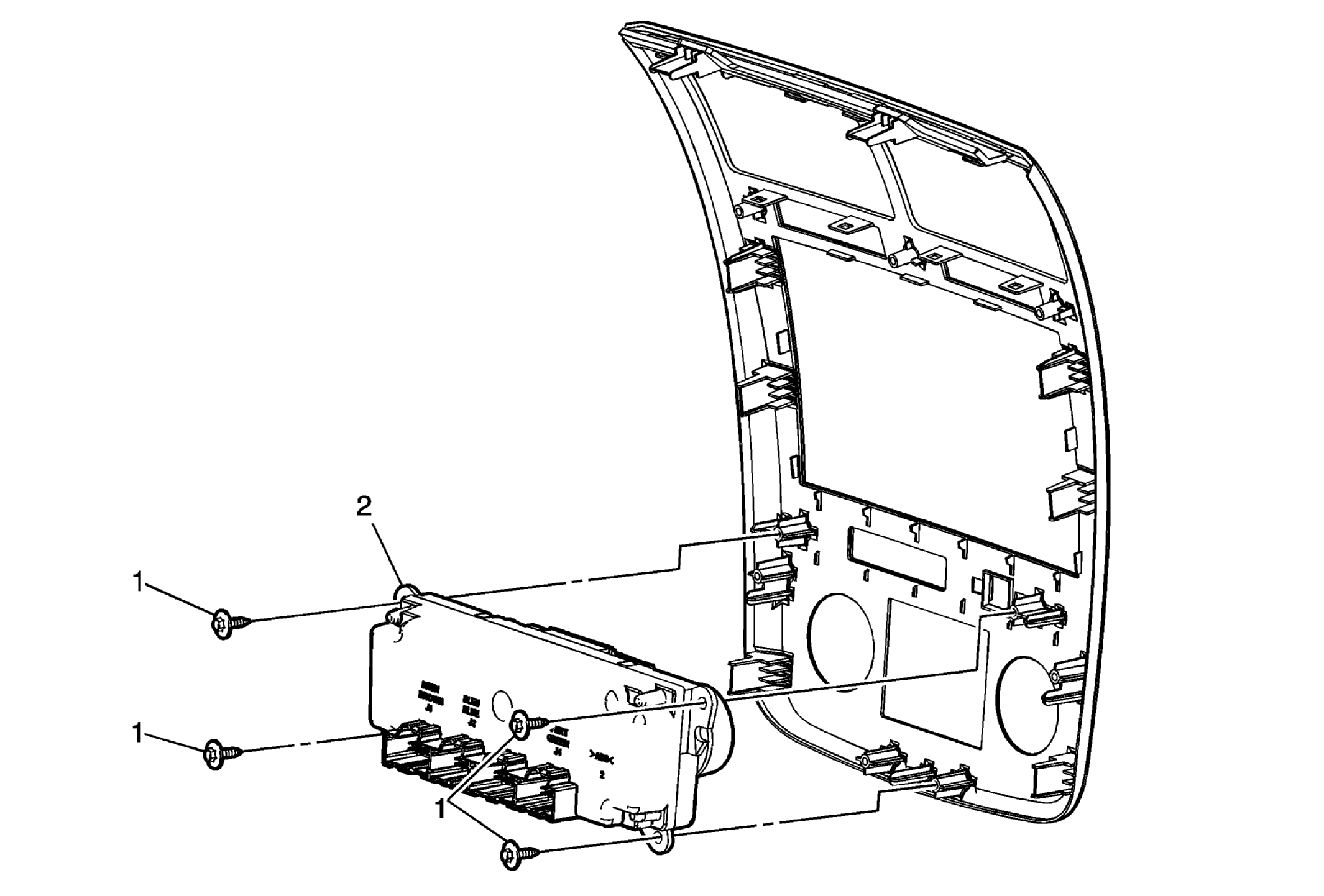

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel (I/P) accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) , Instrument Panel Accessory Trim Plate Replacement (Enclave) and Instrument Panel Accessory Trim Plate Replacement (Traverse) . |
|
| 1 | HVAC Control Module Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | HVAC Control Module Procedure Reprogram the HVAC Control Module. Refer to Control Module References . |
