Body Control Module Bracket Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

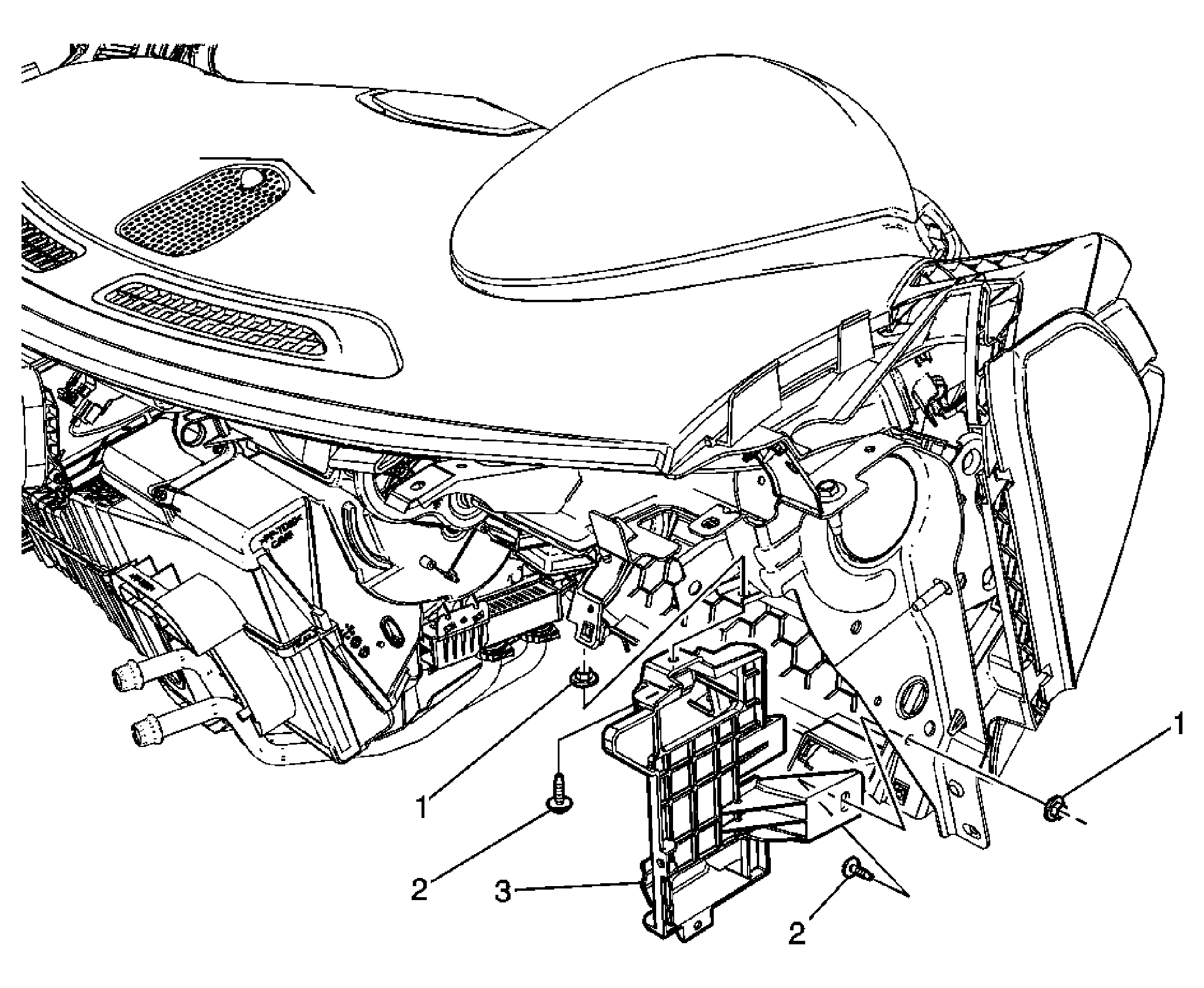

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the body control module. Refer to Body Control Module Replacement . |
|
| 1 | Body Control Module Bracket Nuts (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Body Control Module Bracket Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 3 | Body Control Module Bracket |
