Body Control Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

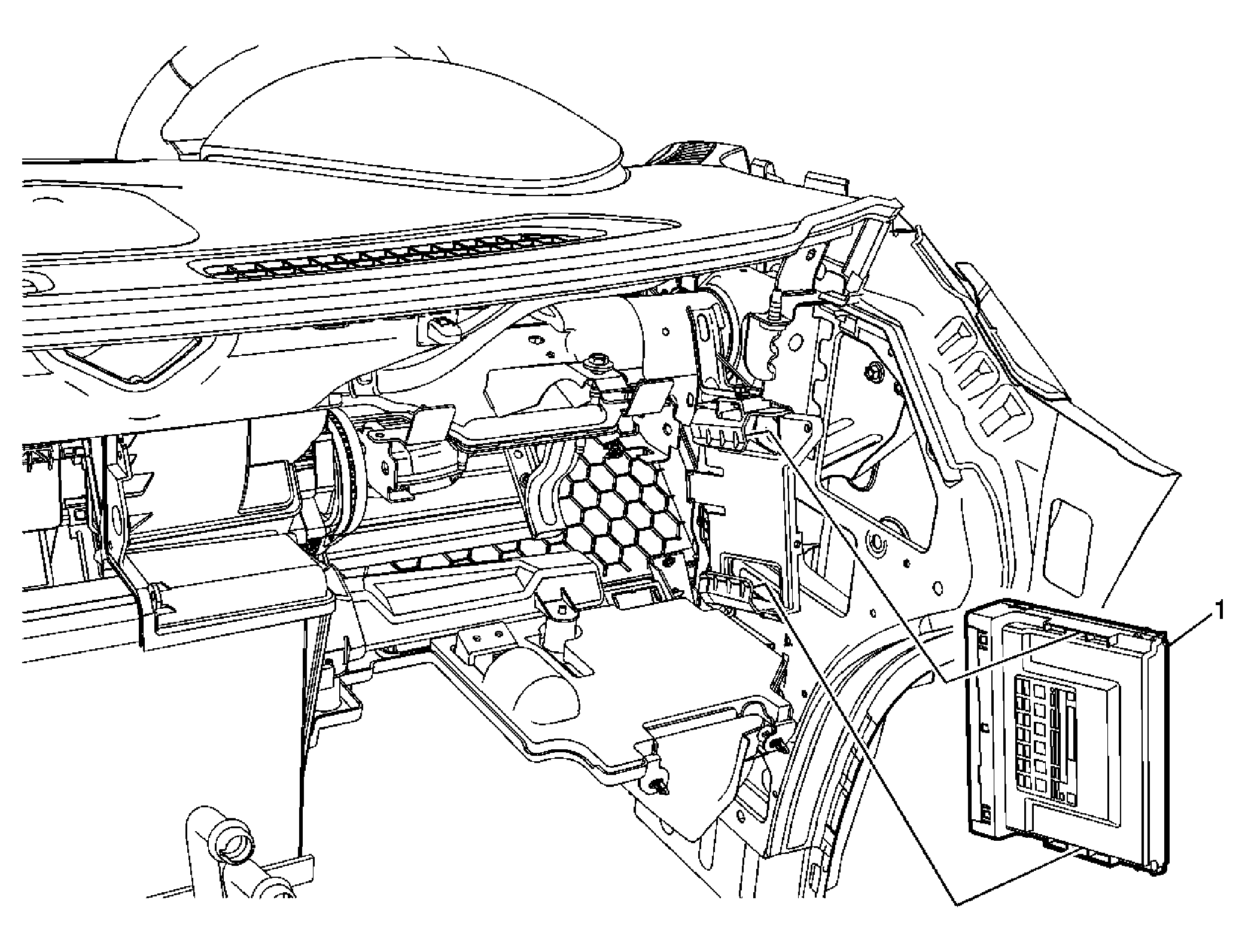

Fig 1: Locating Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement
1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs to release the body control module from the bracket. Reprogram the module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement

Body Control Module

Procedure

Disconnect the electrical connectors.
Push tabs to release the body control module from the bracket.
Reprogram the module if replaced. Refer to Control Module References .
