Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

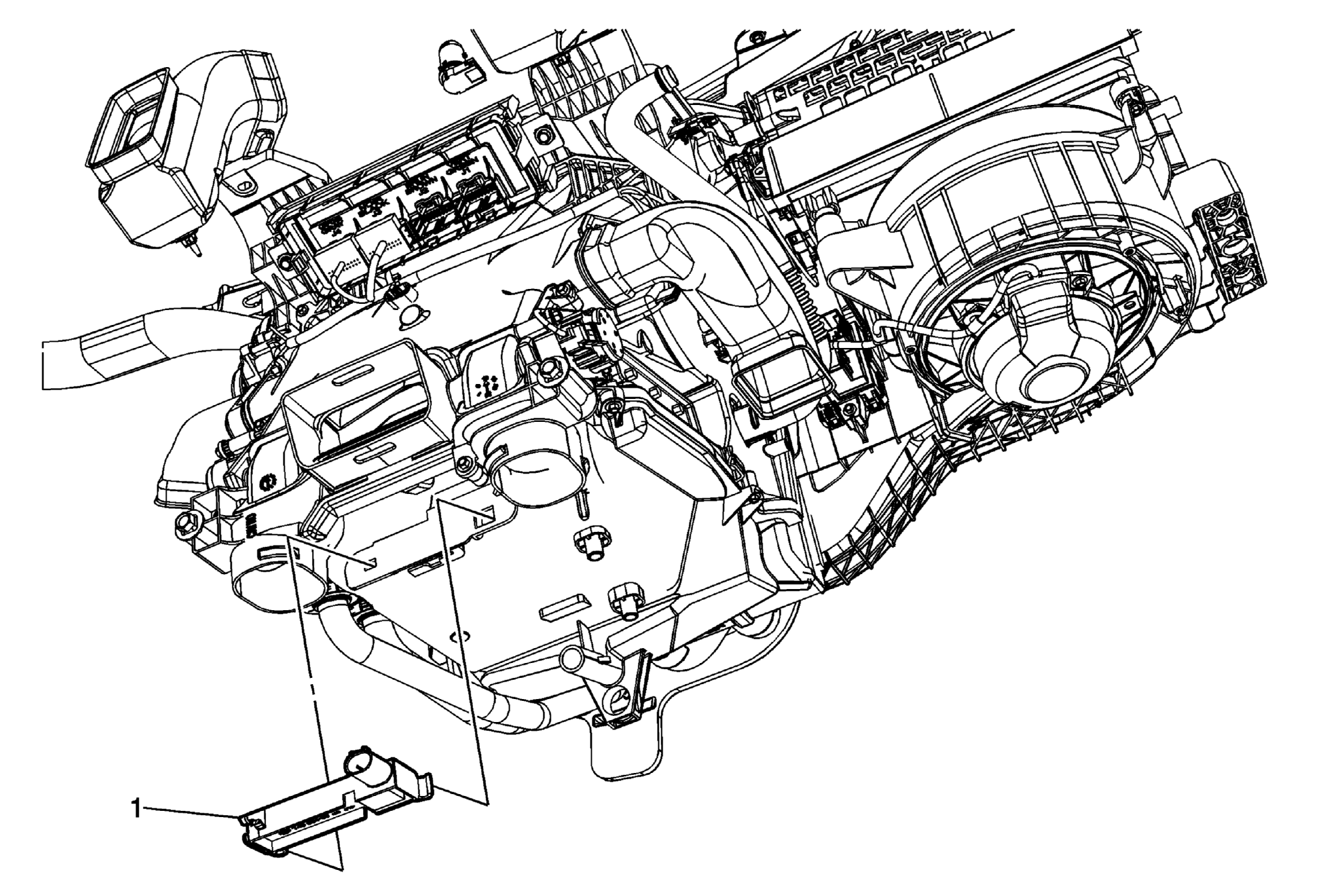

Fig 1: Identifying Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console. Refer to Front Floor Console Replacement
1	Ignition Lock Key Transmitter Antenna Assembly Procedure Reposition air duct as required. Disconnect the electrical connector. Unsnap antenna from the heater module.

Callout

Component Name

Preliminary Procedure:
Remove the front floor console. Refer to Front Floor Console Replacement

Ignition Lock Key Transmitter Antenna Assembly

Procedure

Reposition air duct as required.
Disconnect the electrical connector.
Unsnap antenna from the heater module.
