Remote Control Door Lock Receiver Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

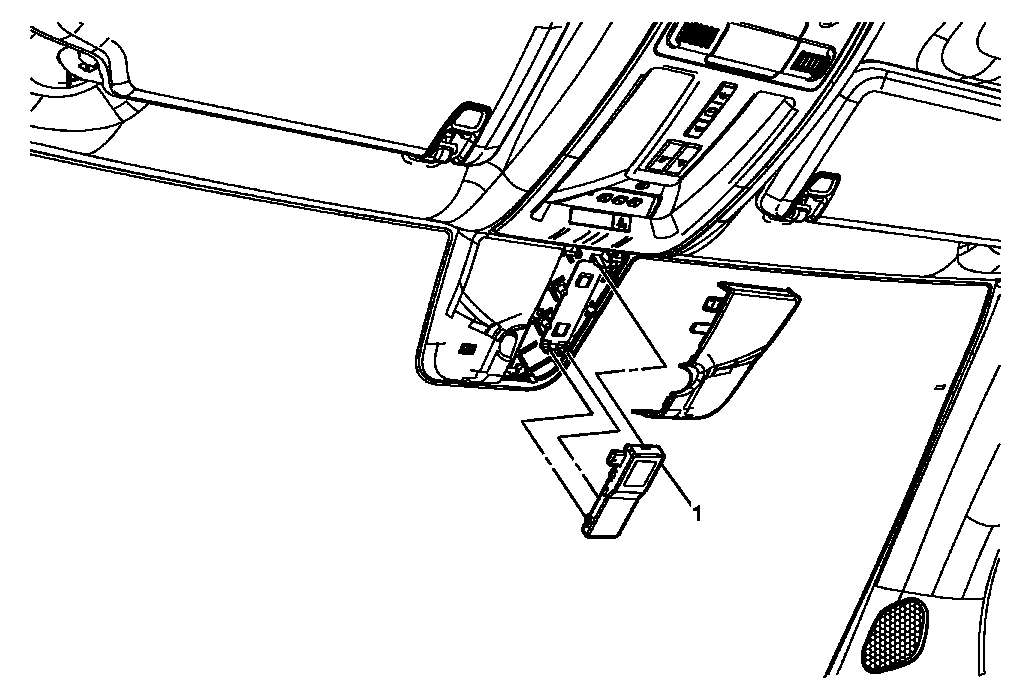

Fig 1: Locating Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inside rear view mirror mount plate cover.
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the windshield bracket. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure:
Remove the inside rear view mirror mount plate cover.

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Unsnap the receiver from the windshield bracket.
For programming and set up, refer to Control Module References
