Airbag Instrument Panel Module Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

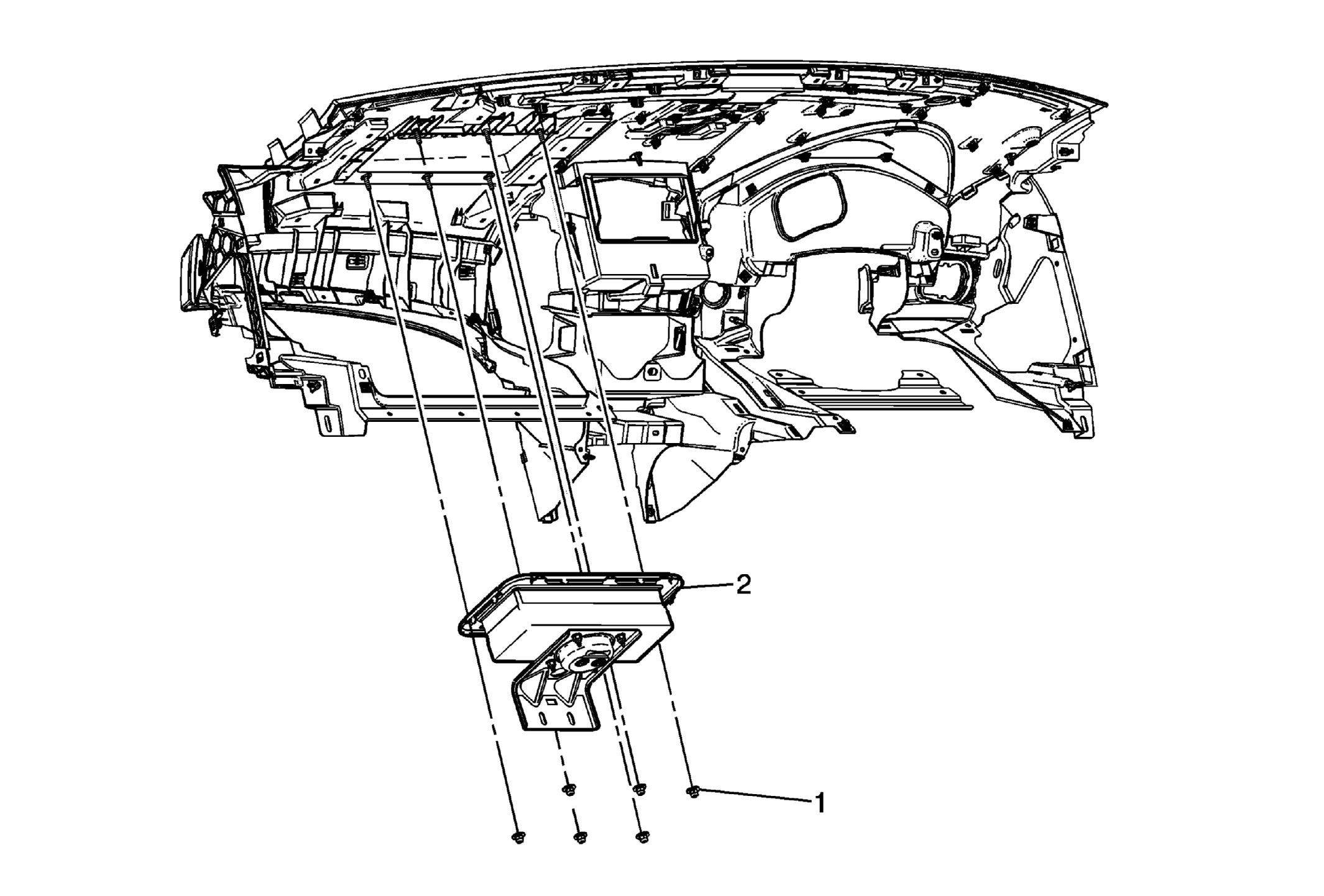

Fig 1: Identifying Instrument Panel Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the instrument panel assembly. Refer to Instrument Panel Assembly Removal . Remove the air distribution duct. Refer to Air Distributor Duct Replacement .
1	Instrument Panel Inflatable Restraint Module Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (79 lb in)
2	Instrument Panel Inflatable Restraint Module Procedure Refer to Inflatable Restraint Module Handling and Scrapping (Europe) Inflatable Restraint Module Handling and Scrapping (Except Europe) .

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Removal .
Remove the air distribution duct. Refer to Air Distributor Duct Replacement .

Instrument Panel Inflatable Restraint Module Nut (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (79 lb in)

Instrument Panel Inflatable Restraint Module
Procedure
Refer to Inflatable Restraint Module Handling and Scrapping (Europe) Inflatable Restraint Module Handling and Scrapping (Except Europe) .
