Airbag Sensing and Diagnostic Module Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

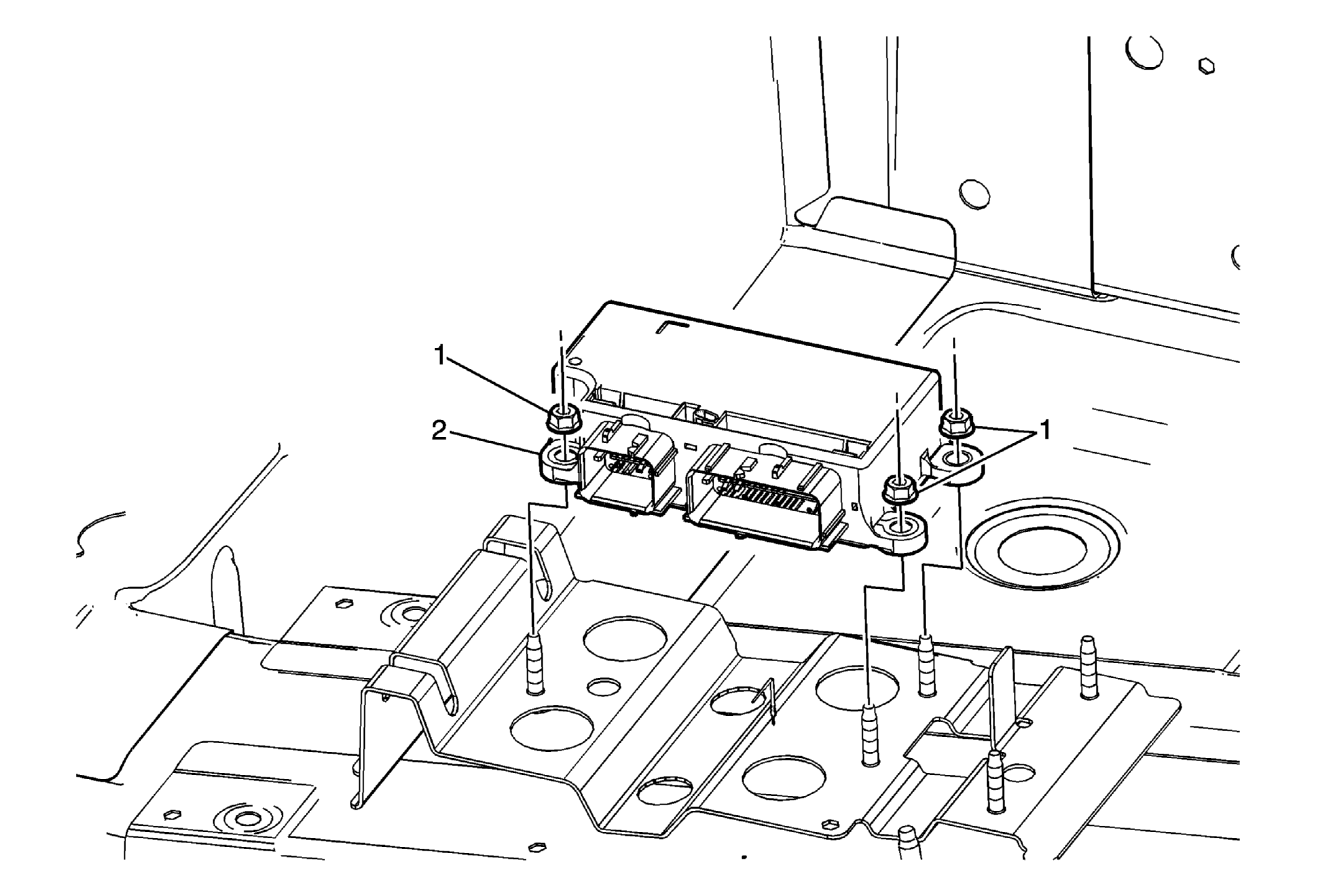

Fig 1: Inflatable Restraint Sensing And Diagnostic Module And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Do not strike or jolt the inflatable restraint Sensing and Diagnostic Module (SDM). Before applying power to the SDM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs. WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the console. Refer to Front Floor Console Replacement . Remove the auxiliary blower motor. Refer to Auxiliary Blower Motor Replacement . Disconnect the electrical connector.
1	Inflatable Restraint Sensing and Diagnostic Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (56 lb in)
2	Inflatable Restraint Sensing and Diagnostic Module Assembly TIP: If installing a replacement module, program the module. Refer to Control Module References .

Callout

Component Name

WARNING:

Do not strike or jolt the inflatable restraint Sensing and Diagnostic Module (SDM). Before applying power to the SDM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the console. Refer to Front Floor Console Replacement .
Remove the auxiliary blower motor. Refer to Auxiliary Blower Motor Replacement .
Disconnect the electrical connector.

Inflatable Restraint Sensing and Diagnostic Module Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
7 N.m (56 lb in)

Inflatable Restraint Sensing and Diagnostic Module Assembly
TIP: If installing a replacement module, program the module. Refer to Control Module References .
