Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

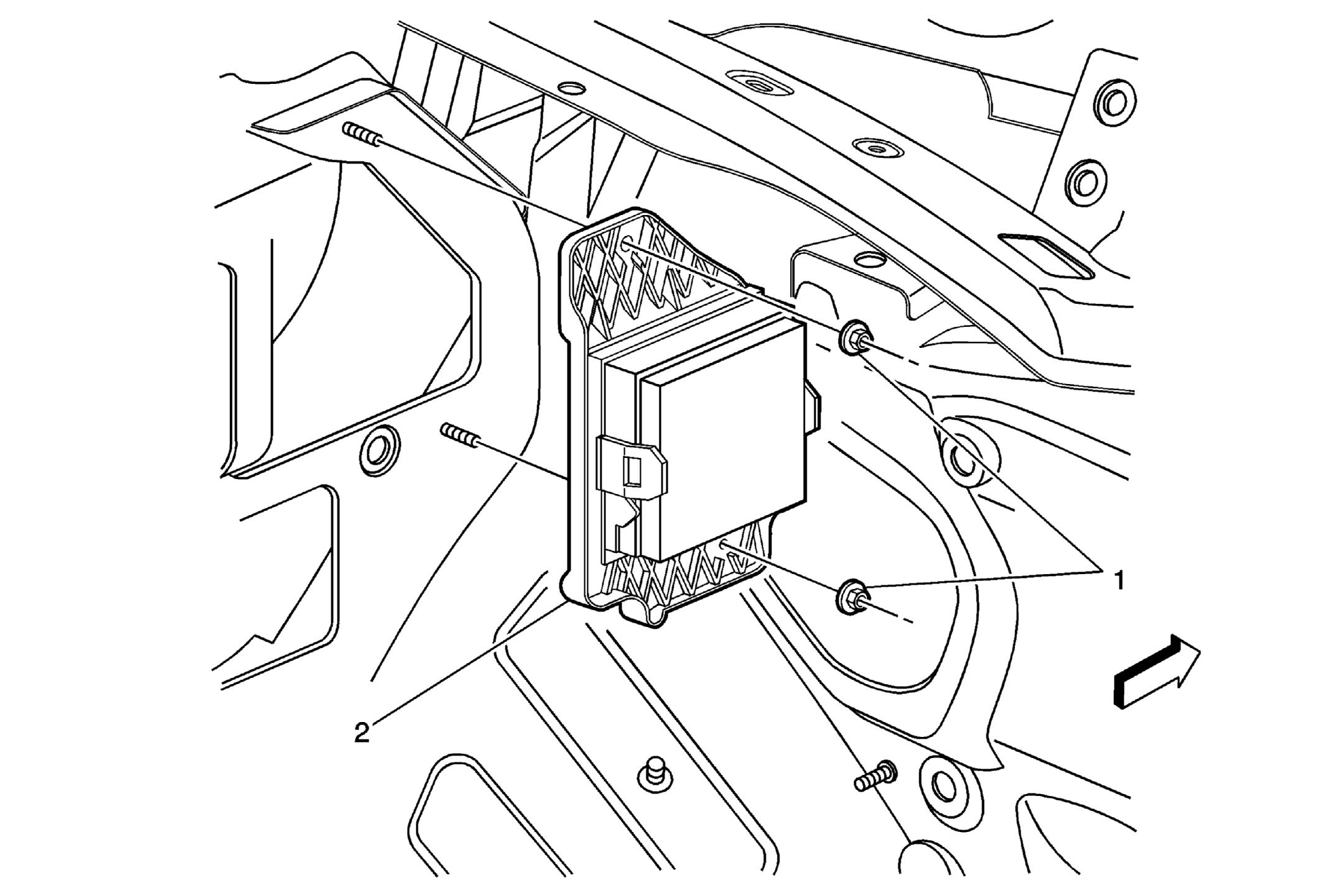

Fig 1: Identifying Headlamp Control Module & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the body control module. Refer to Body Control Module Replacement and mounting bracket.
1	Headlamp Control Module Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Headlamp Control Module Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the body control module. Refer to Body Control Module Replacement and mounting bracket.

Headlamp Control Module Nuts (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and set up procedures.
