Accessory and Liftgate Control Module Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

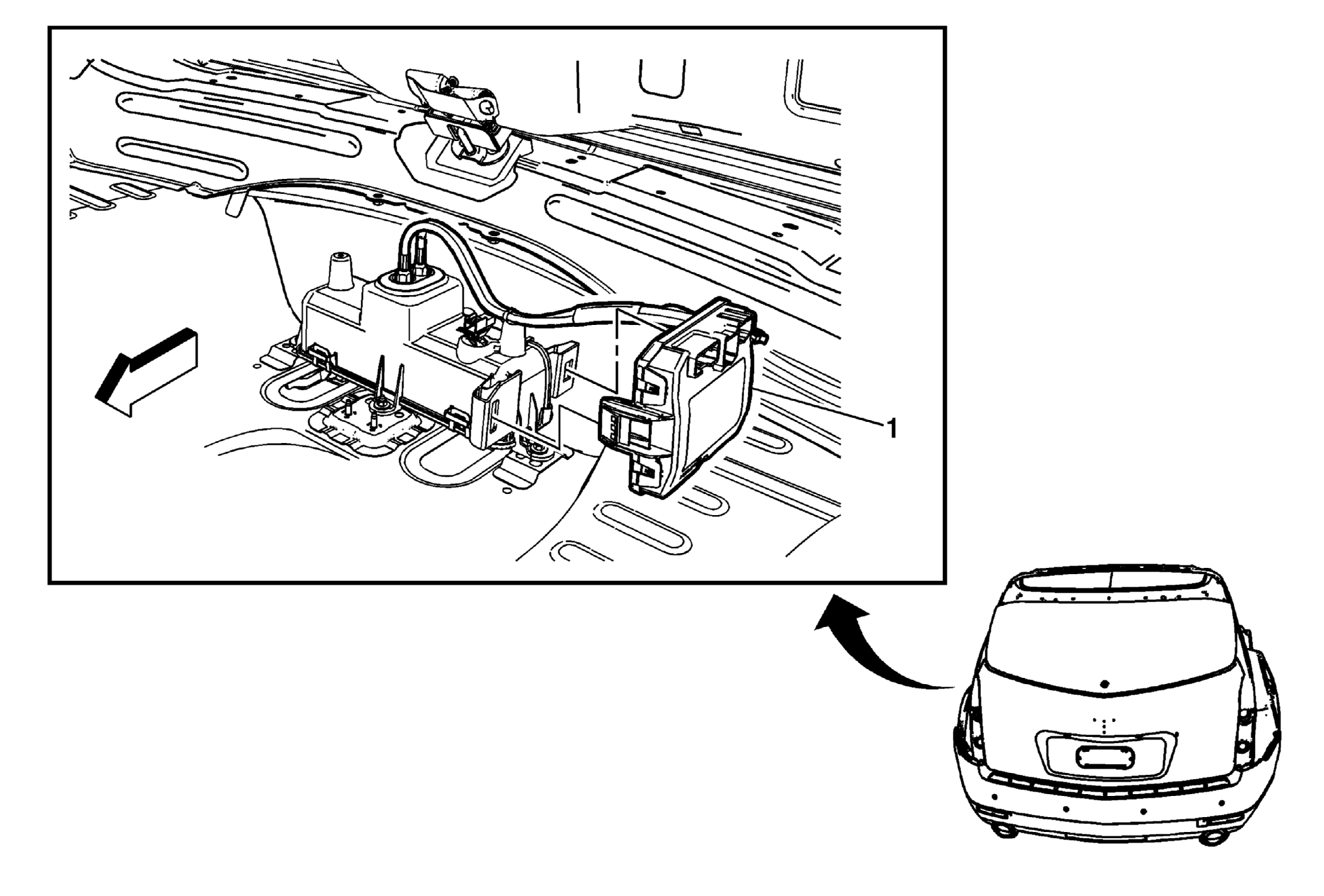

Fig 1: Locating Accessory and Liftgate Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement .
1	Accessory and Liftgate Control Module Procedure Disconnect the electrical connectors. Push in tabs to release module from the liftgate pump assembly. Reprogram the control module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement .

Accessory and Liftgate Control Module

Procedure

Disconnect the electrical connectors.
Push in tabs to release module from the liftgate pump assembly.
Reprogram the control module if replaced. Refer to Control Module References .
