Multifunction Relay Module Bracket Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

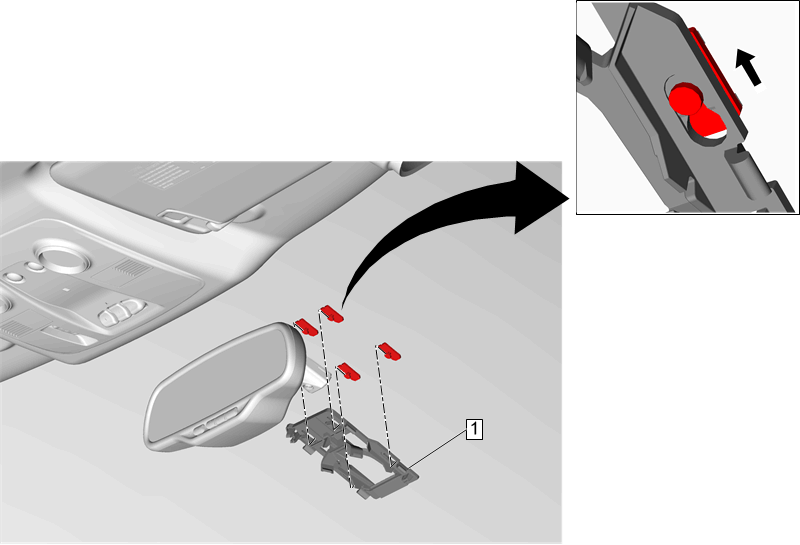

Fig 1: Multifunction Relay Module Bracket
GM4322555Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front View Camera Replacement
1 Multifunction Relay Module Bracket

Procedure

  1. Slide the bracket upward to disengage pins, gently pull from windshield.
  2. Ensure the inside of the windshield is clean before reinstalling the bracket.
NOTE:

Do Not remove or service the sensor farm pins.
