3rd Row Center Seat Belt Replacement

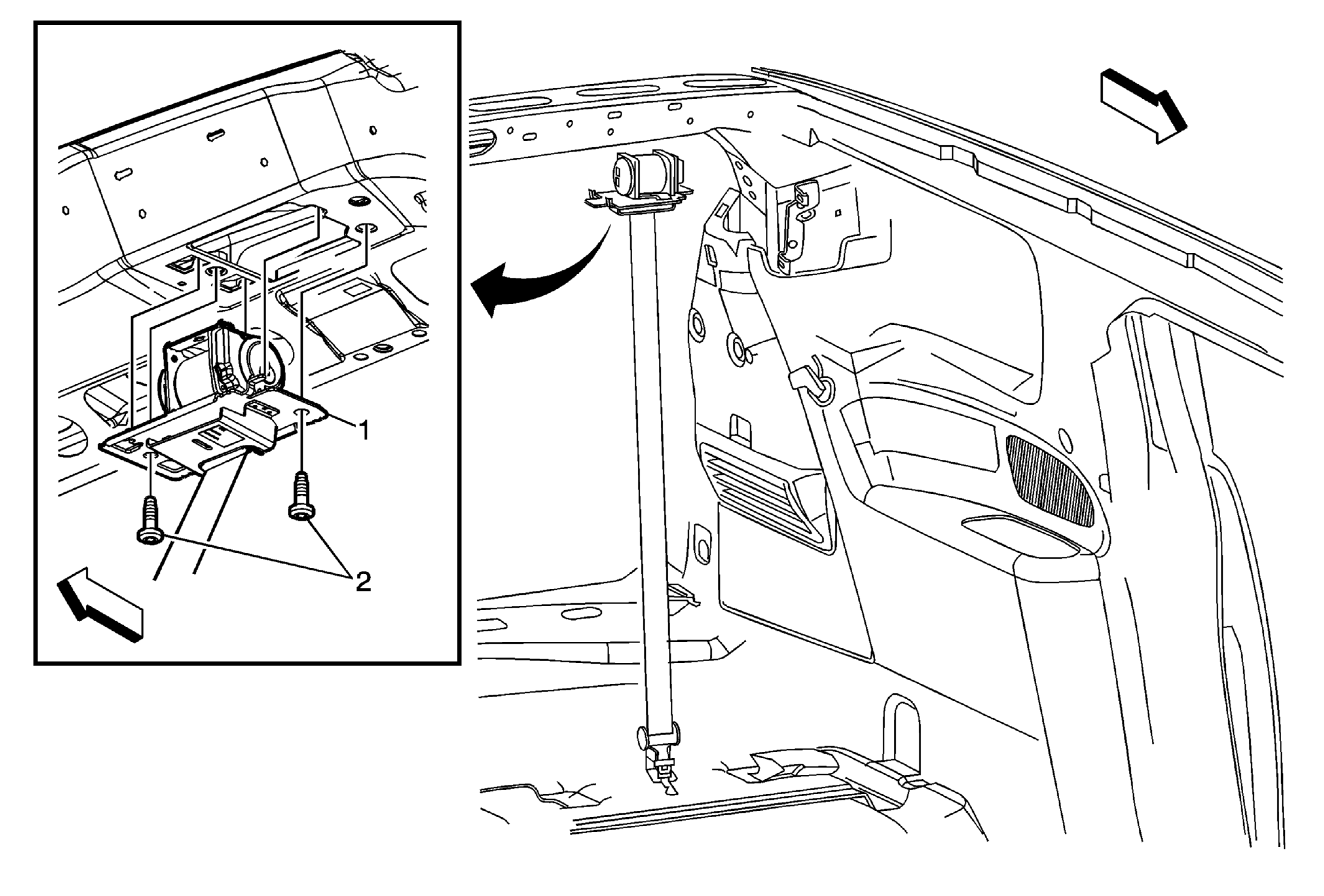

Fig 1: 3rd Row Center Seat Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the headliner assembly. Refer to Headlining Trim Panel Replacement .
1	Rear Seat Number 2 Center Seat Belt Retractor Assembly
2	Rear Seat Number 2 Center Seat Belt Retractor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)

Callout

Component Name

Preliminary Procedures

Rear Seat Number 2 Center Seat Belt Retractor Assembly

Rear Seat Number 2 Center Seat Belt Retractor Bolt (Qty: 2)

CAUTION:

Tighten
45 N.m (33 lb ft)
