Front Seat Belt Guide Adjuster Replacement

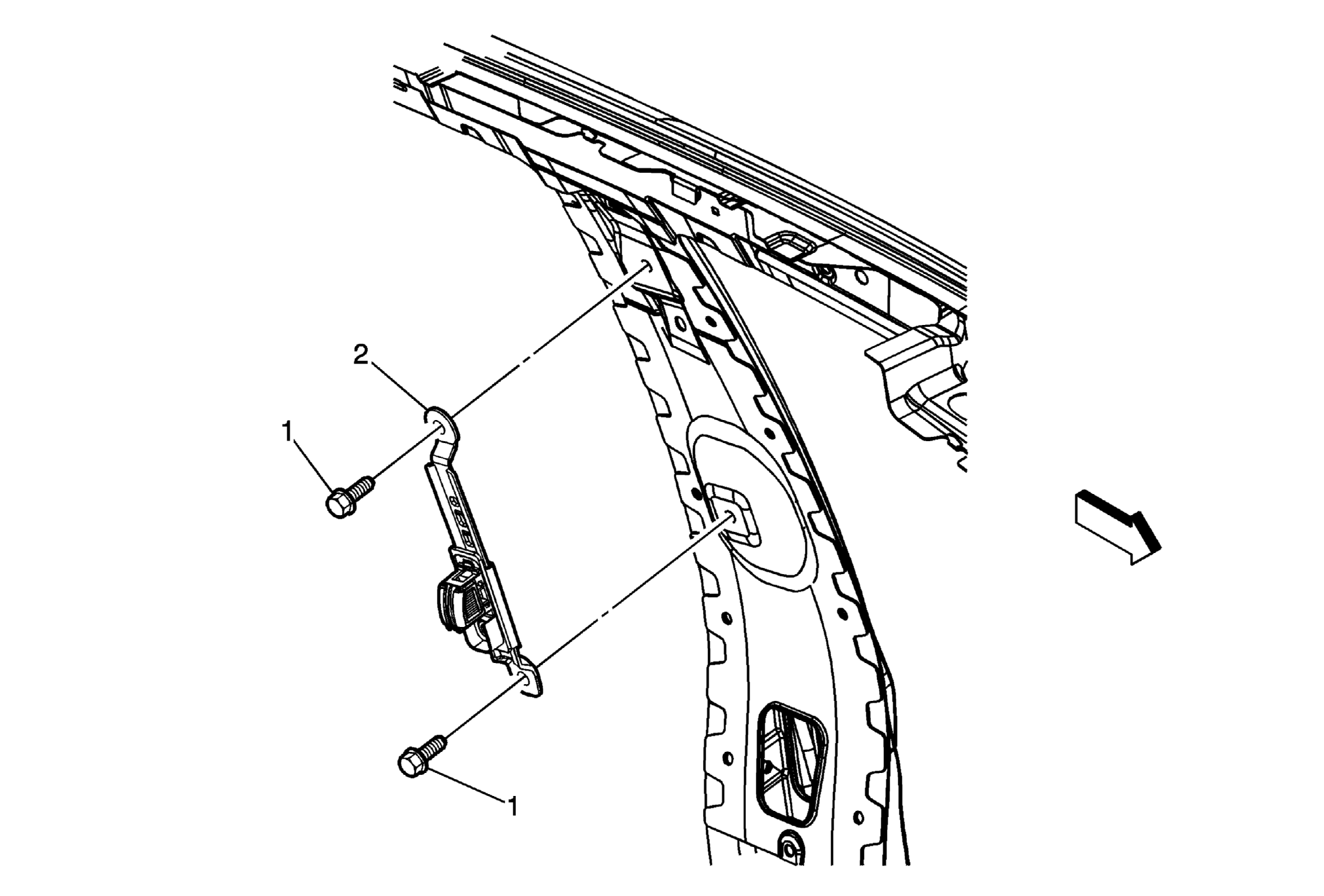

Fig 1: View Of Shoulder Belt Guide Adjuster - Front

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remover center pillar upper molding. Refer to Center Pillar Upper Garnish Molding Replacement . Remove front seat belt. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1	Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Front Seat Shoulder Belt Guide Adjuster Assembly

Callout

Component Name

Preliminary Procedures

Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2)

CAUTION:

Tighten
50 N.m (37 lb ft)

Front Seat Shoulder Belt Guide Adjuster Assembly
