Installation Procedure

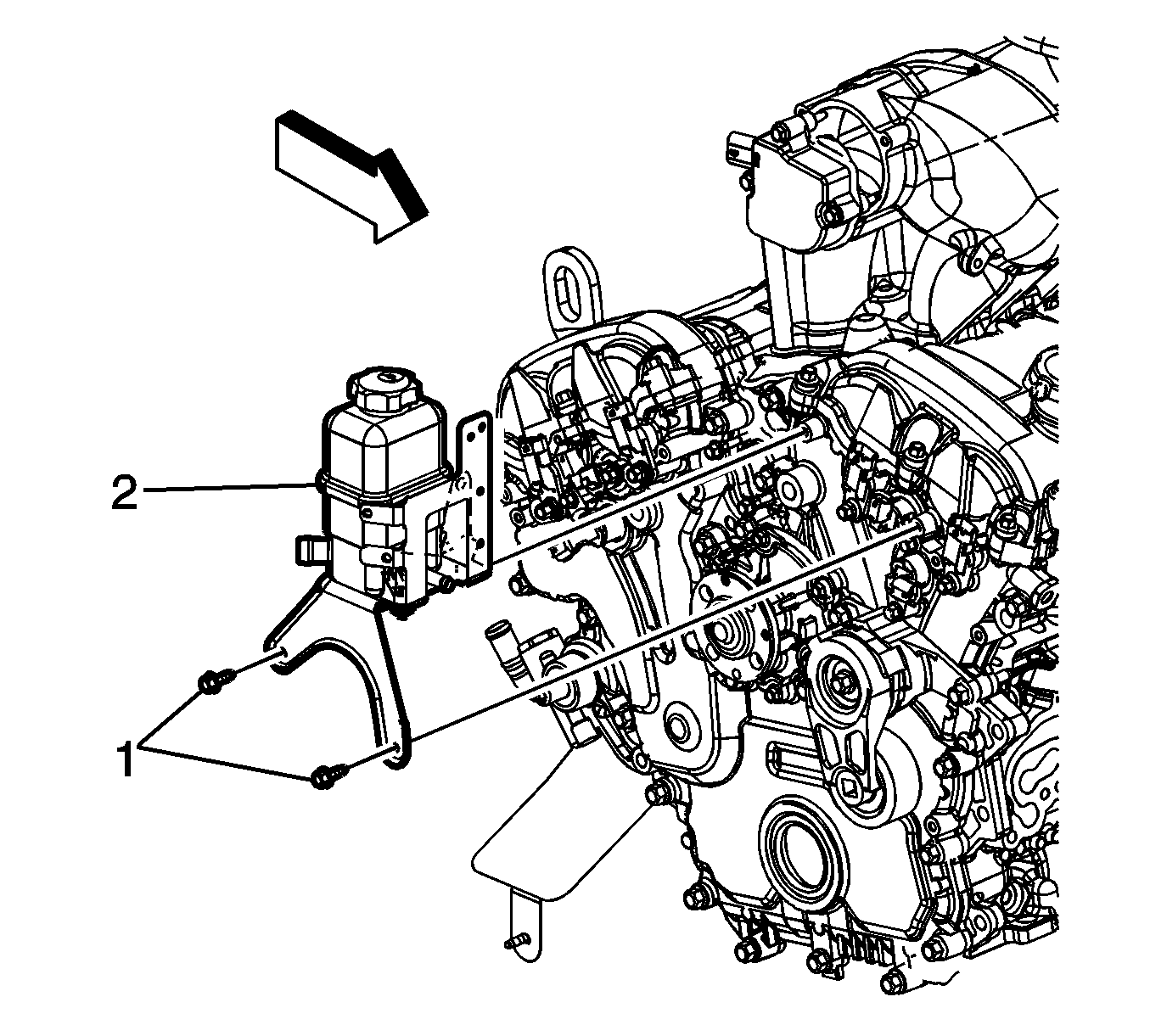

    Fig 1: Identifying Power Steering Fluid Reservoir Bracket & Bolts
    GM2075295Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the remote power steering fluid reservoir bracket (2).
  2. Install the remote power steering fluid reservoir bracket bolts (1) and tighten to 9 (80 lb in).
    3. Fig 2: View Of Power Steering Fluid Reservoir Outlet Hose & Clamp
    GM1856009Courtesy of GENERAL MOTORS COMPANY
  3. Connect the power steering fluid reservoir outlet hose (1).
    4. Fig 3: Identifying Power Steering Reservoir Inlet Hose & Clamp
    GM1856010Courtesy of GENERAL MOTORS COMPANY
  4. Connect the power steering reservoir inlet hose (1).
  5. Clean all excess fluid from the vehicle and remove the drain pans.
  6. Install the right side engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement - Right Side .
  7. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
  8. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
