Installation Procedure
- Install the steering linkage outer tie rod (3) to the steering linkage inner tie rod (1) with the same number of complete rotations counted during the removal. Do not tighten the steering linkage inner tie rod nut (2), yet.
- Connect the steering linkage outer tie rod (2) to the steering knuckle (1).

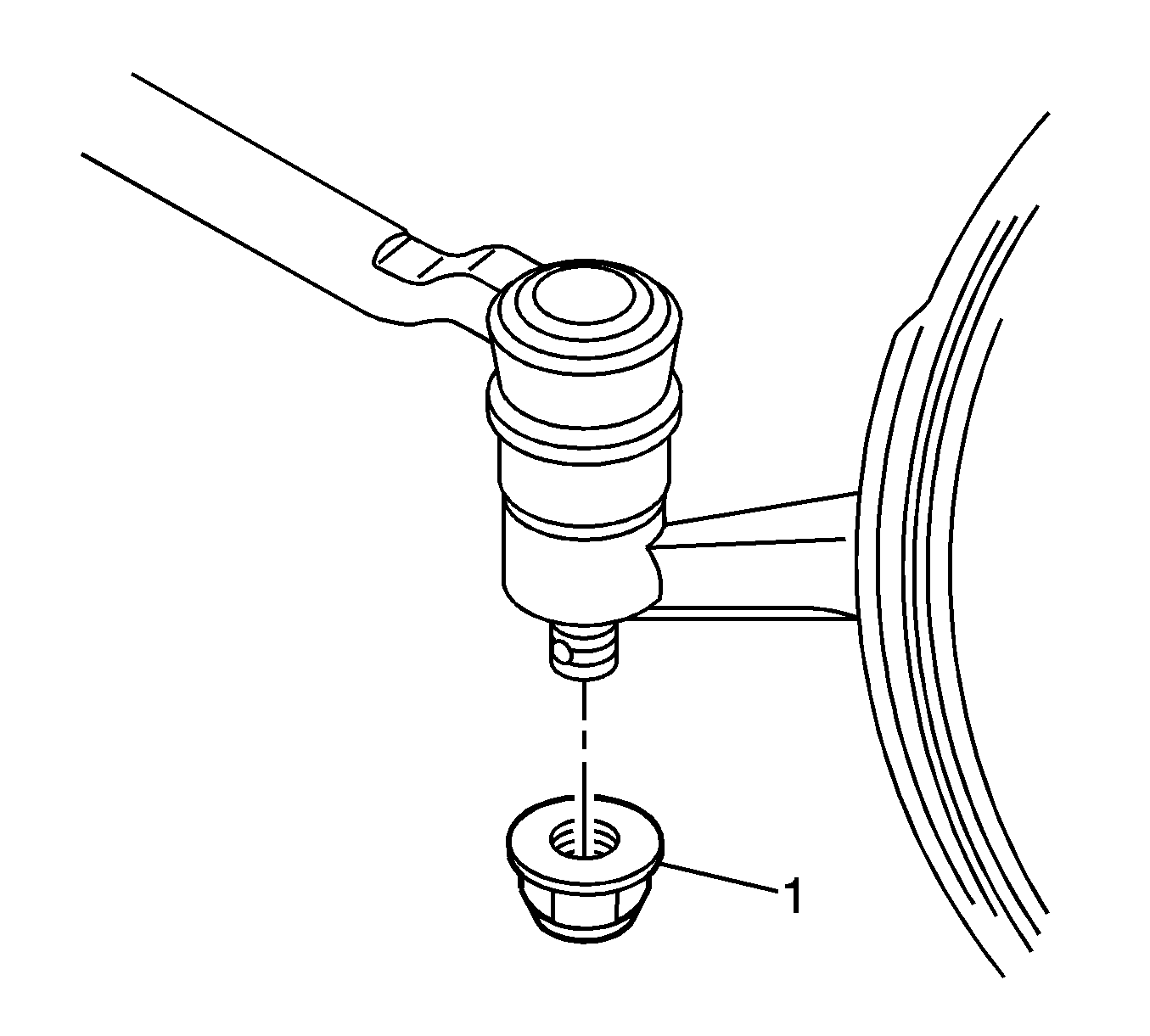

- Ensure the threads on the steering linkage outer tie rod nut (1) and on the outer tie rod stud are clean an free from corrosion. If the threads on a part are corroded, replace the corroded part.
- Install the steering linkage outer tie rod nut to the outer tie rod stud. Ensure the nut develops 2 N.m (18 lb in) of torque, or drag, on the stud prior to the nut seating. If the nut does NOT meet this specification, replace the nut.
- Tighten the steering linkage outer tie rod nut to 30 N.m (22 lb ft).
- Tighten the steering linkage outer tie rod nut an additional 120 degrees.
- Ensure that 2.5-4.5 steering linkage outer tie rod threads are visible beyond the steering linkage outer tie rod nut nylon.
- Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
- Tighten the steering linkage inner tie rod nut (1) to 75 N.m (55 lb ft).
CAUTION:
Refer to Fastener Caution .
