Automatic Transmission Shift Lock Control Actuator Replacement (Push-To-Release Style Solenoid)

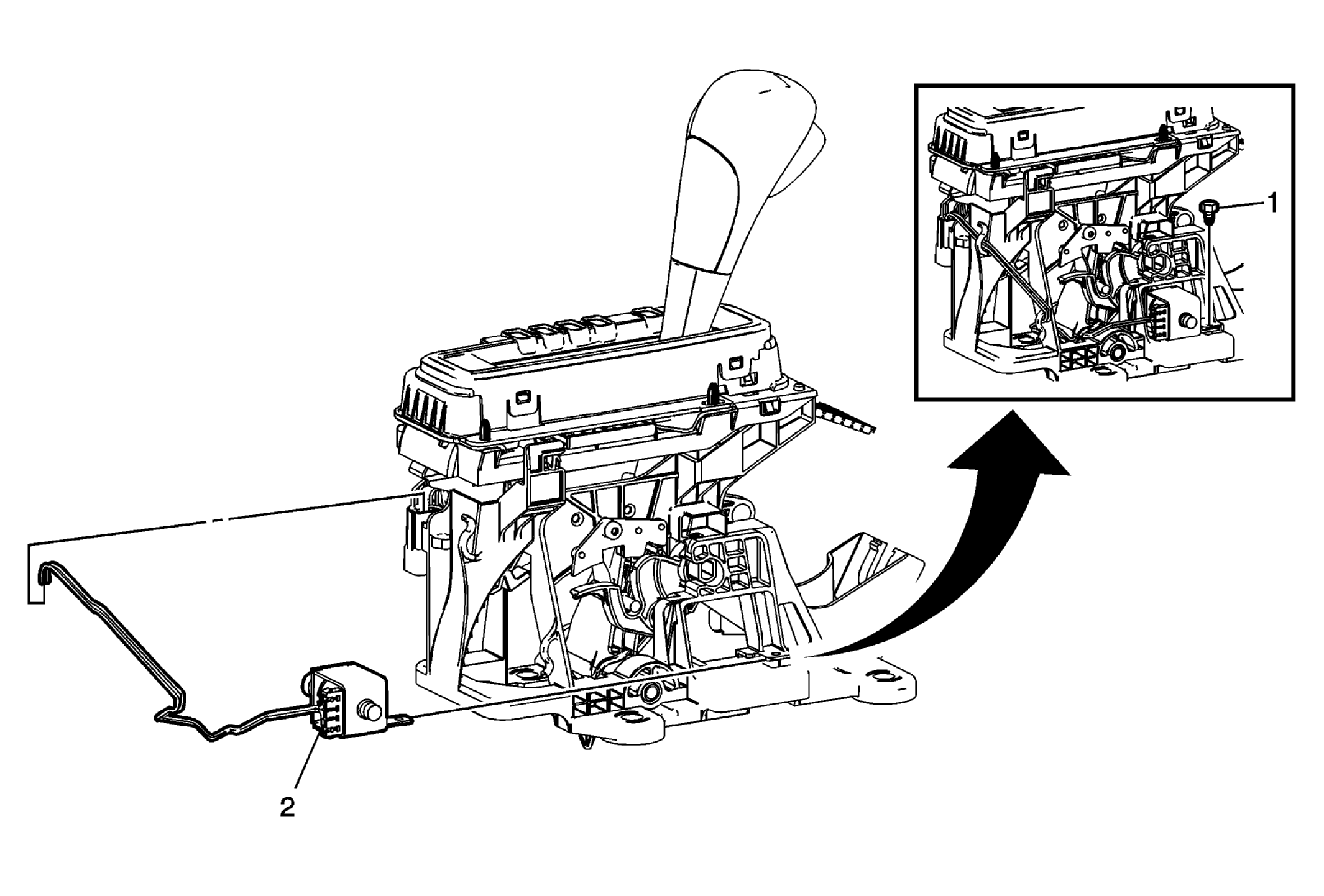

Fig 1: Identifying Automatic Transmission Shift Lock Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement - Right Side (Enclave) , Front Floor Console Extension Panel Replacement - Right Side (Traverse) , Front Floor Console Extension Panel Replacement - Right Side (Acadia) , and Front Floor Console Extension Panel Replacement - Left Side (Enclave) , Front Floor Console Extension Panel Replacement - Left Side (Traverse) , Front Floor Console Extension Panel Replacement - Left Side (Acadia) .
1	Shift Lock Actuator Screw CAUTION: Refer to Fastener Caution Tighten 4 N.m (35 lb in)
2	Shift Lock Actuator Procedure Shift lock actuator wires must be de-pinned from the electrical connector.
