Keyless Entry Receiver: Locations

Passenger Compartment/Roof Component Views

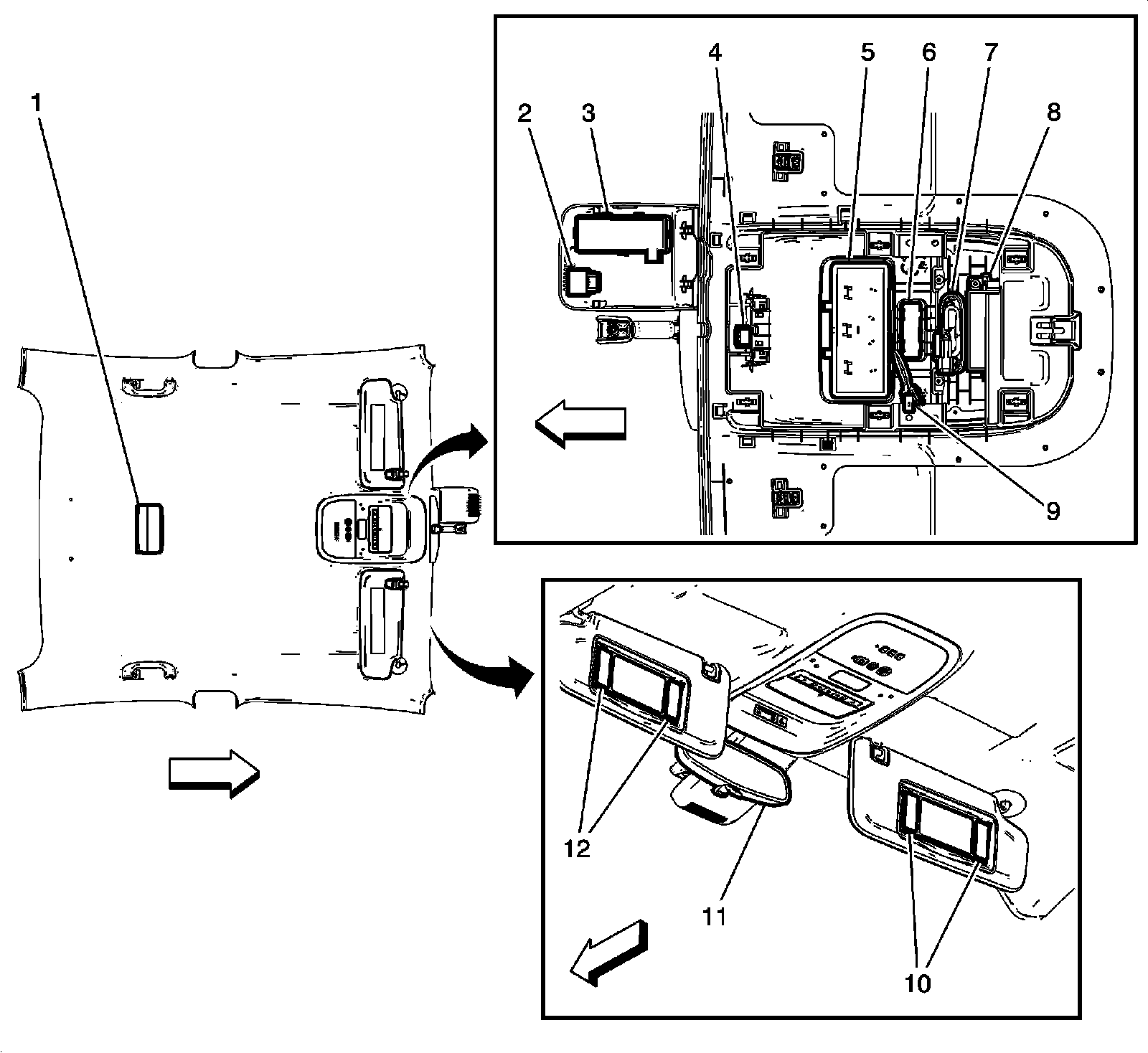

Headliner Components




1 - E36AH Dome Lamp
2 - B160 Windshield Temperature and Inside Moisture Sensor
3 - K77 Remote Control Door Lock Receiver
4 - P14 Passenger Air Bag Disable Indicator
5 - E37F Dome/Reading Lamps - Front
6 - S48B Multi-Function Switch - Overhead Console
7 - S51 Telematics Button Assembly
8 - S25 Garage Door Opener
9 - B24 Cellular Phone Microphone
10 - E31R Sunshade Mirror Lamp - Right
11 - A10 Inside Rearview Mirror
12 - E31L Sunshade Mirror Lamp - Left
