Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

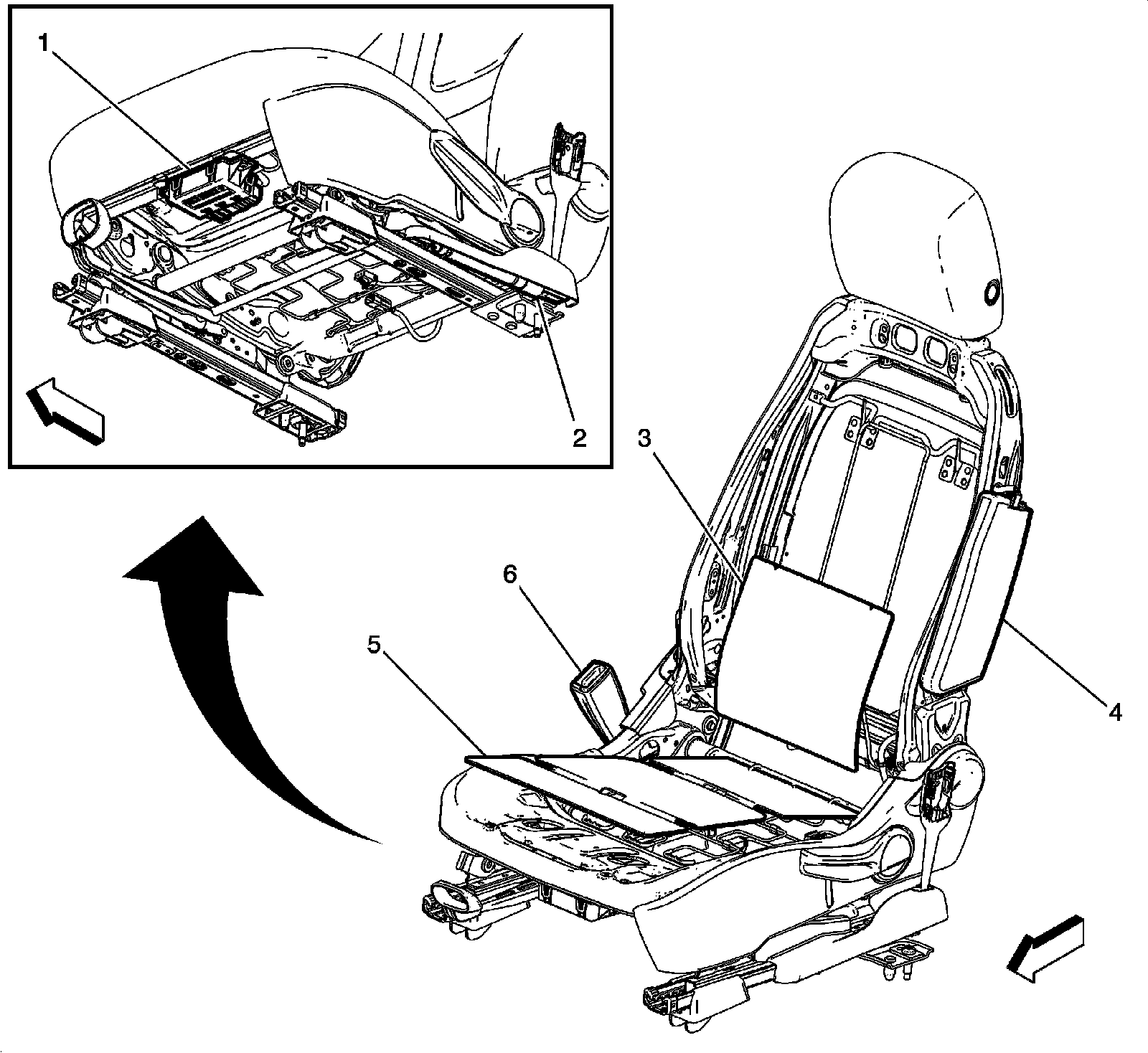

Driver Seat Components




1 - K29 Seat Heating Control Module
2 - F113D Seat Belt Anchor Pretensioner - Driver
3 - E14A Seat Heating Element - Driver Back
4 - F106L Side Air Bag - Left
5 - E14B Seat Heating Element - Driver Cushion
6 - B88D Seat Belt Switch - Driver (Part of Buckle)
