Telematics Communication Interface Module X2

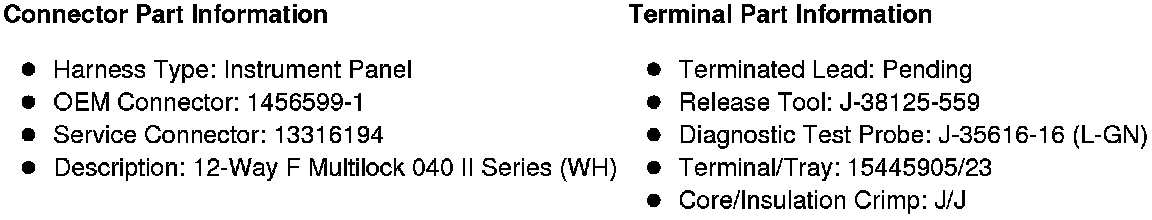

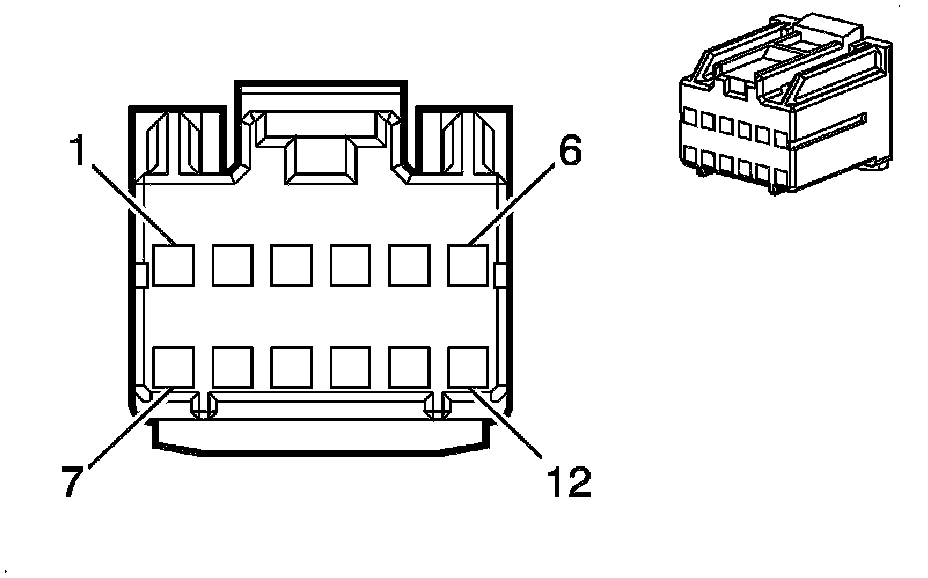

Component Connector End Views

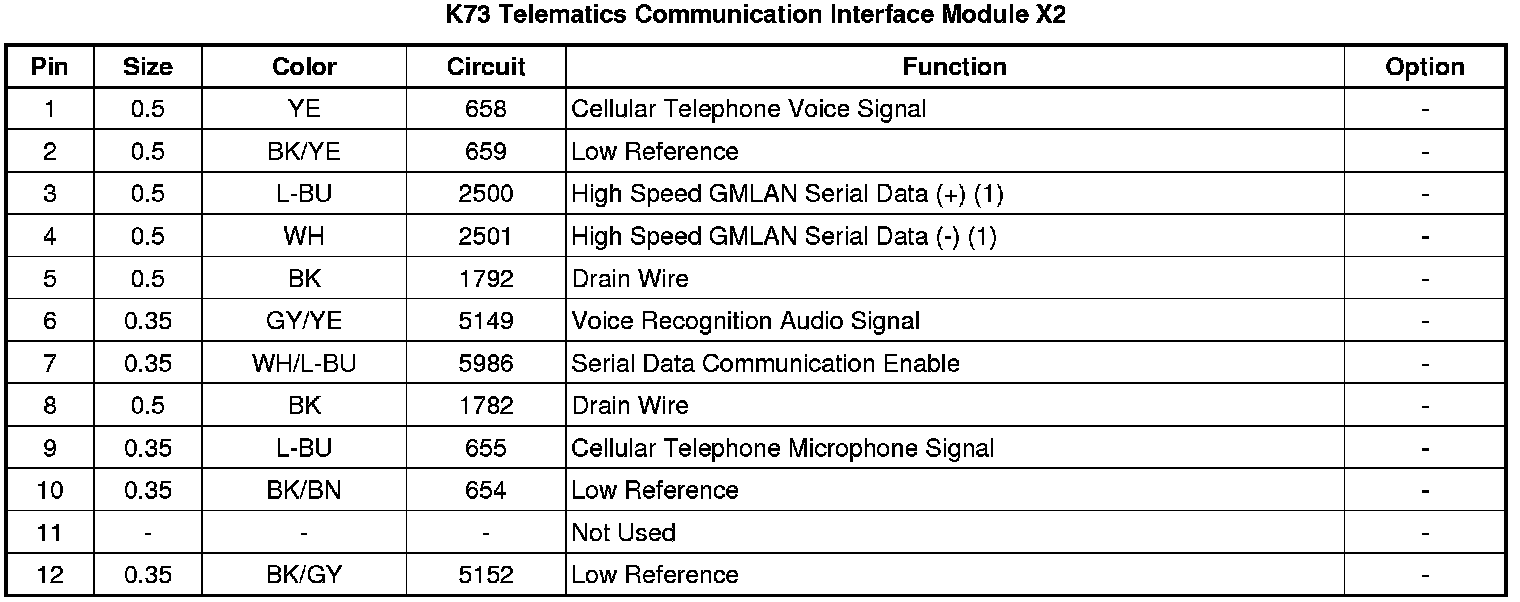

K73 Telematics Communication Interface Module X2
