Front Object Sensor - Left Middle

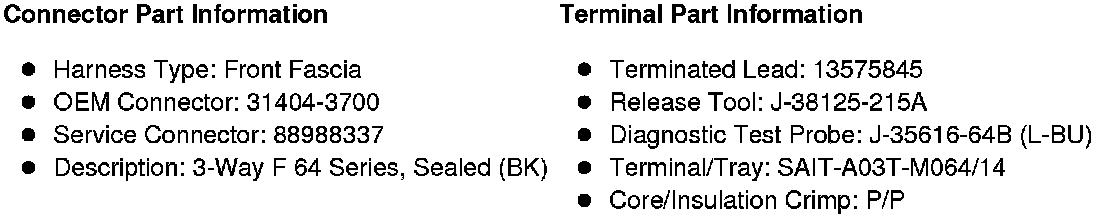

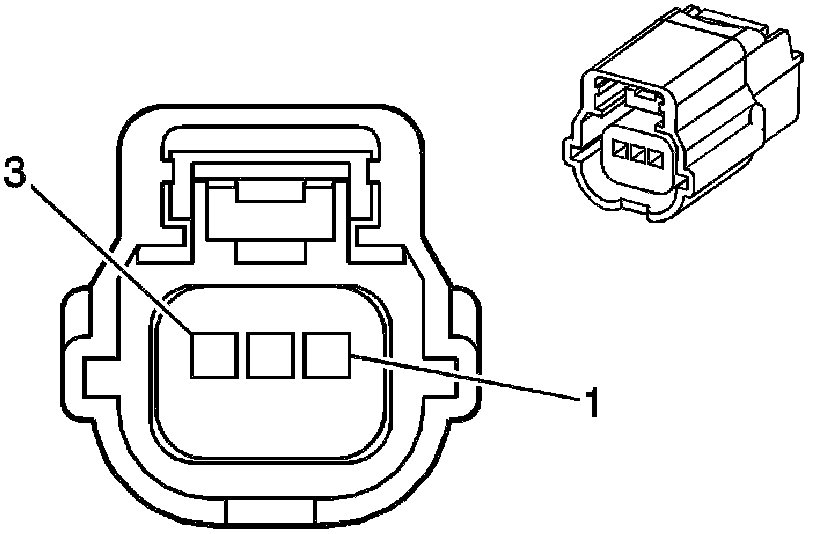

Component Connector End Views

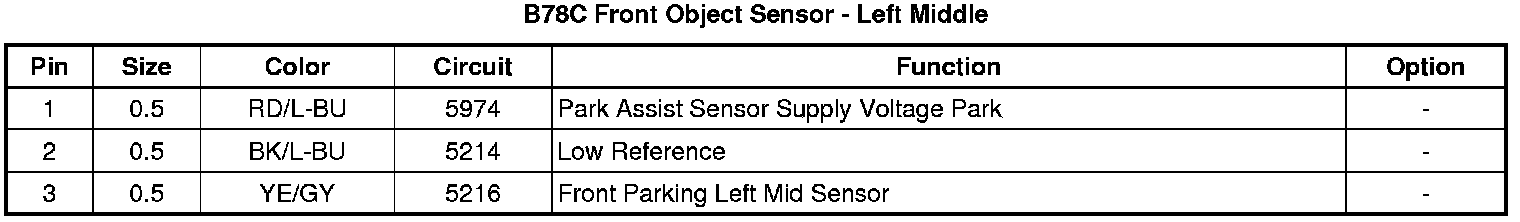

B78C Front Object Sensor - Left Middle
