Power Inverter Module Assembly Cable Cover

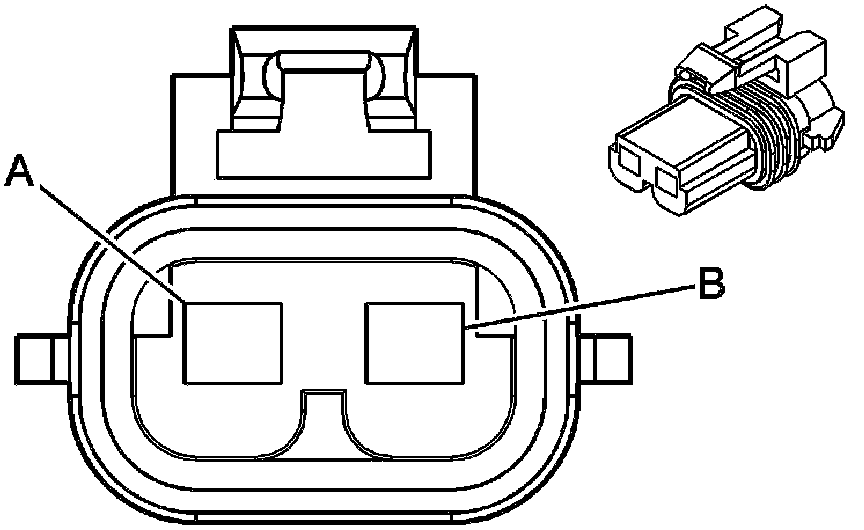

Component Connector End Views

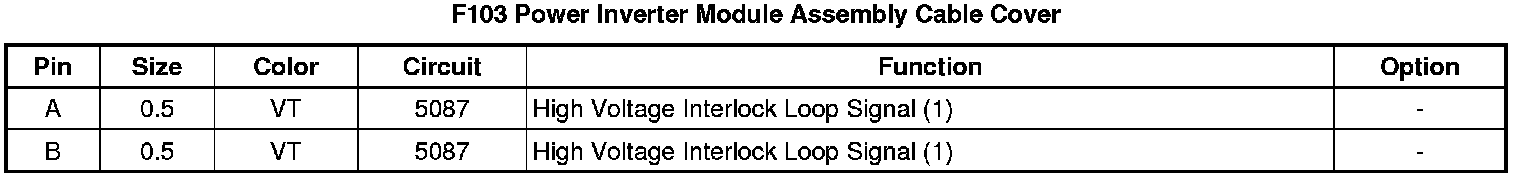

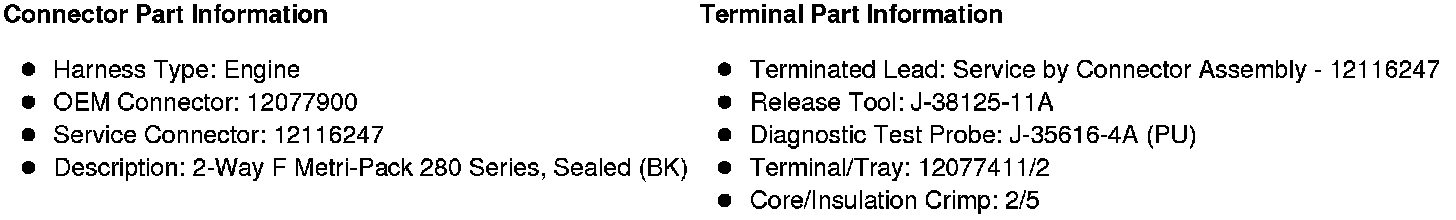

F103 Power Inverter Module Assembly Cable Cover
