Power Inverter Module Assembly X2




Component Connector End Views

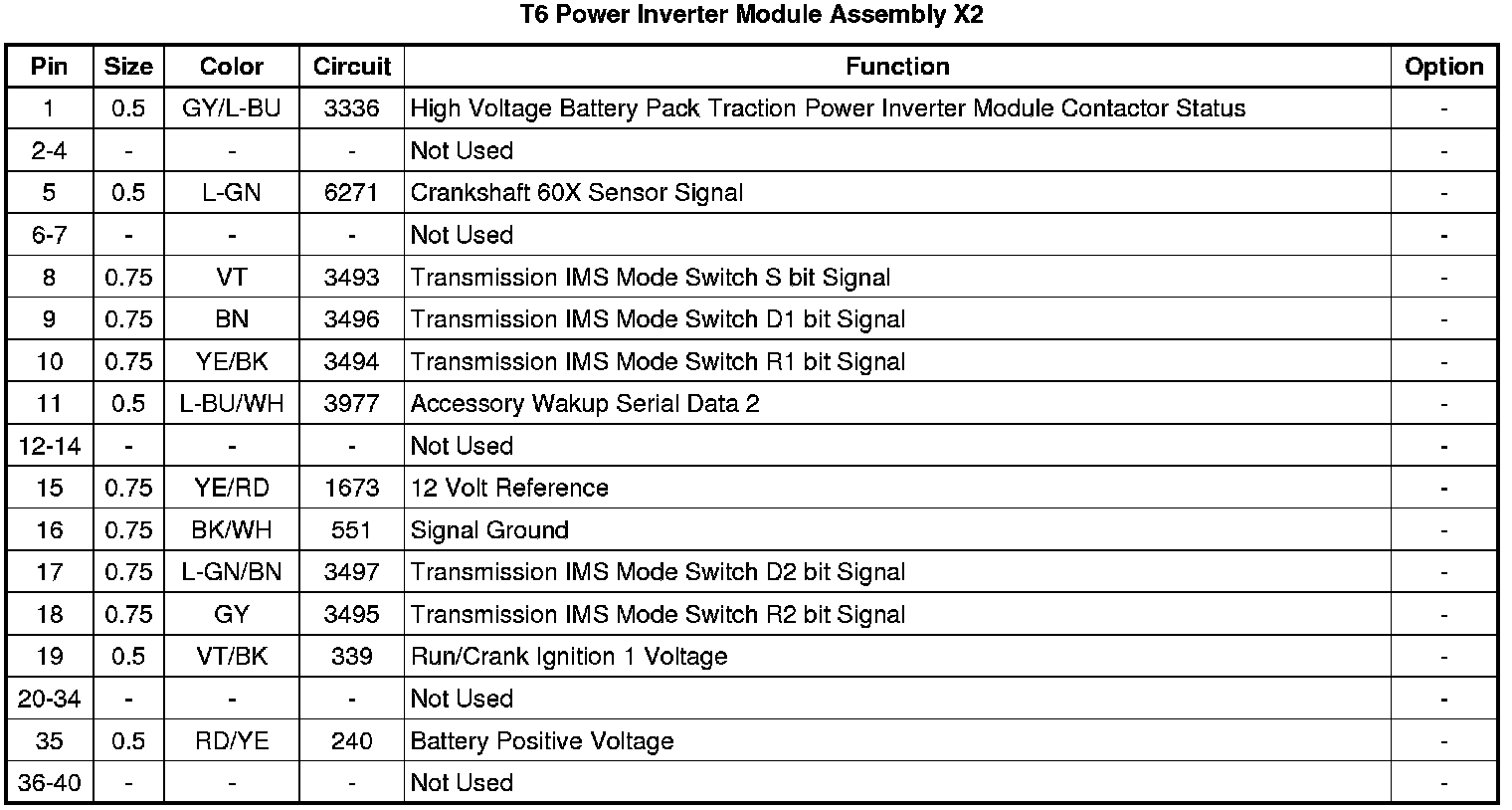

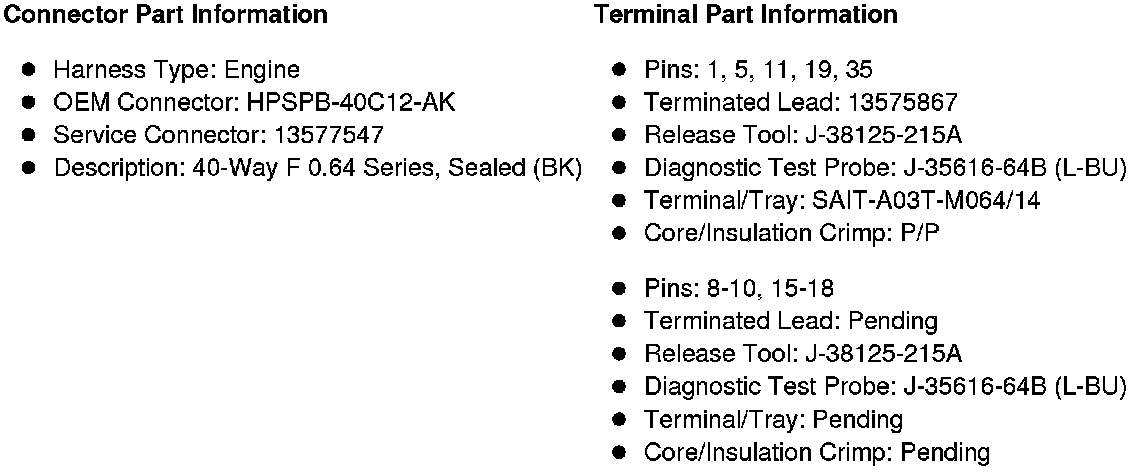

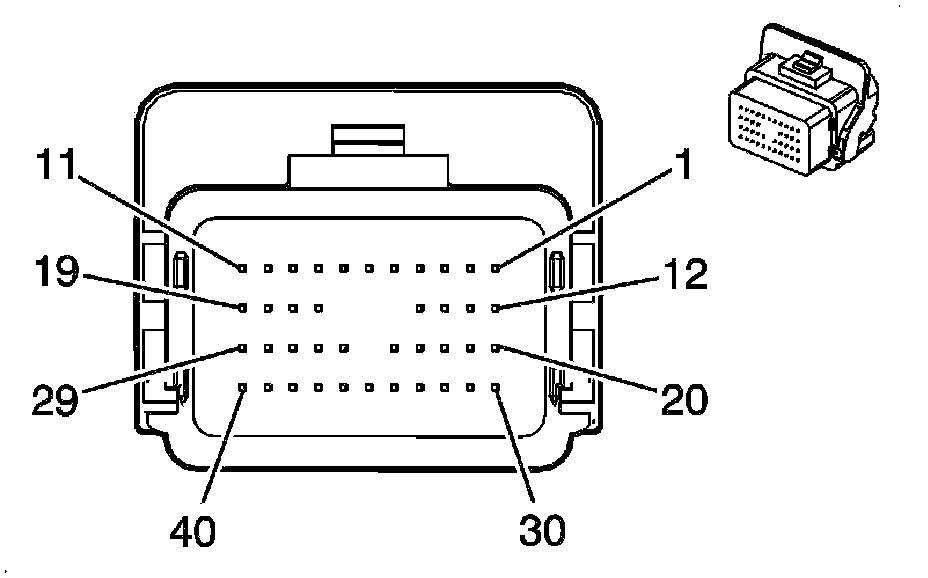

T6 Power Inverter Module Assembly X2
