14V Power Module Jumper Connector

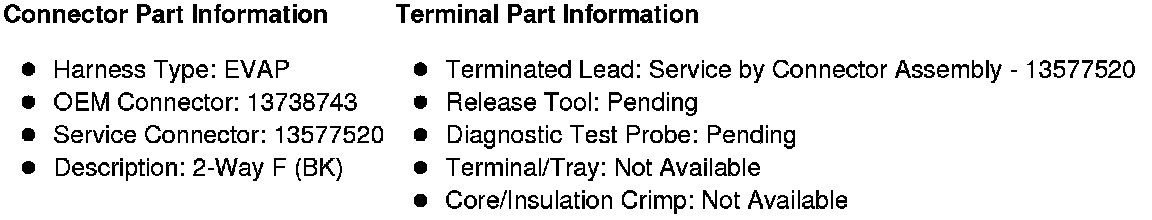

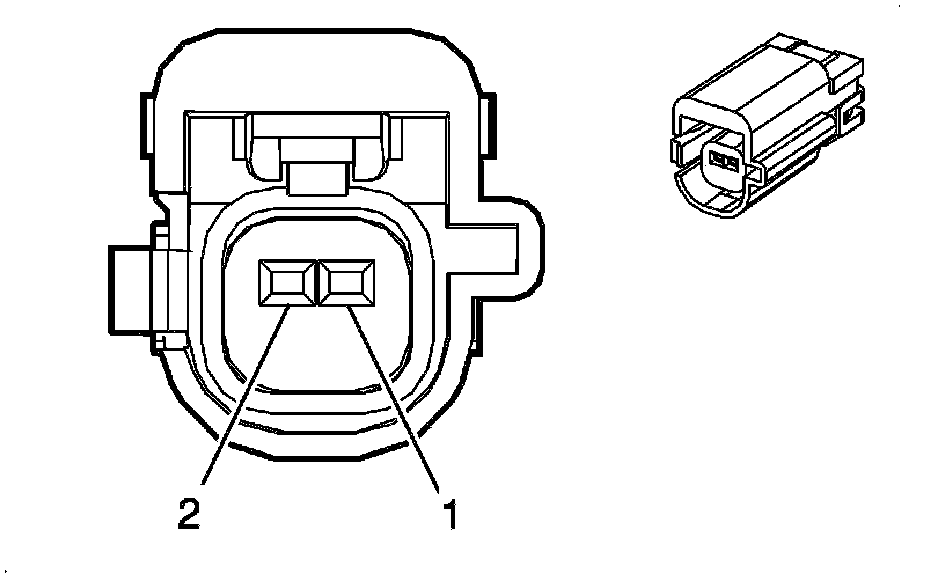

Component Connector End Views

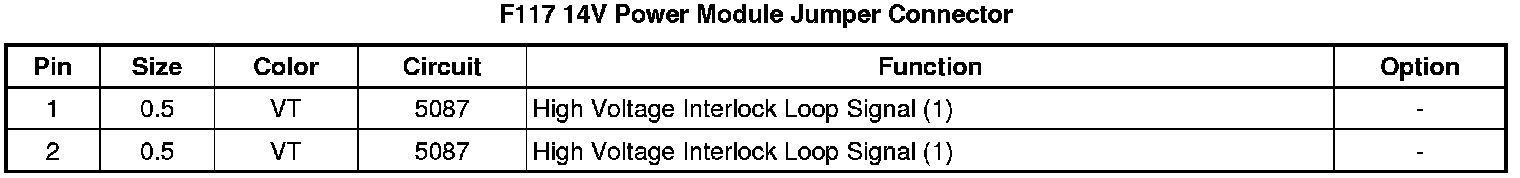

F117 14V Power Module Jumper Connector
