Drive Motor Battery Interface Control Module Replacement (Module 1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

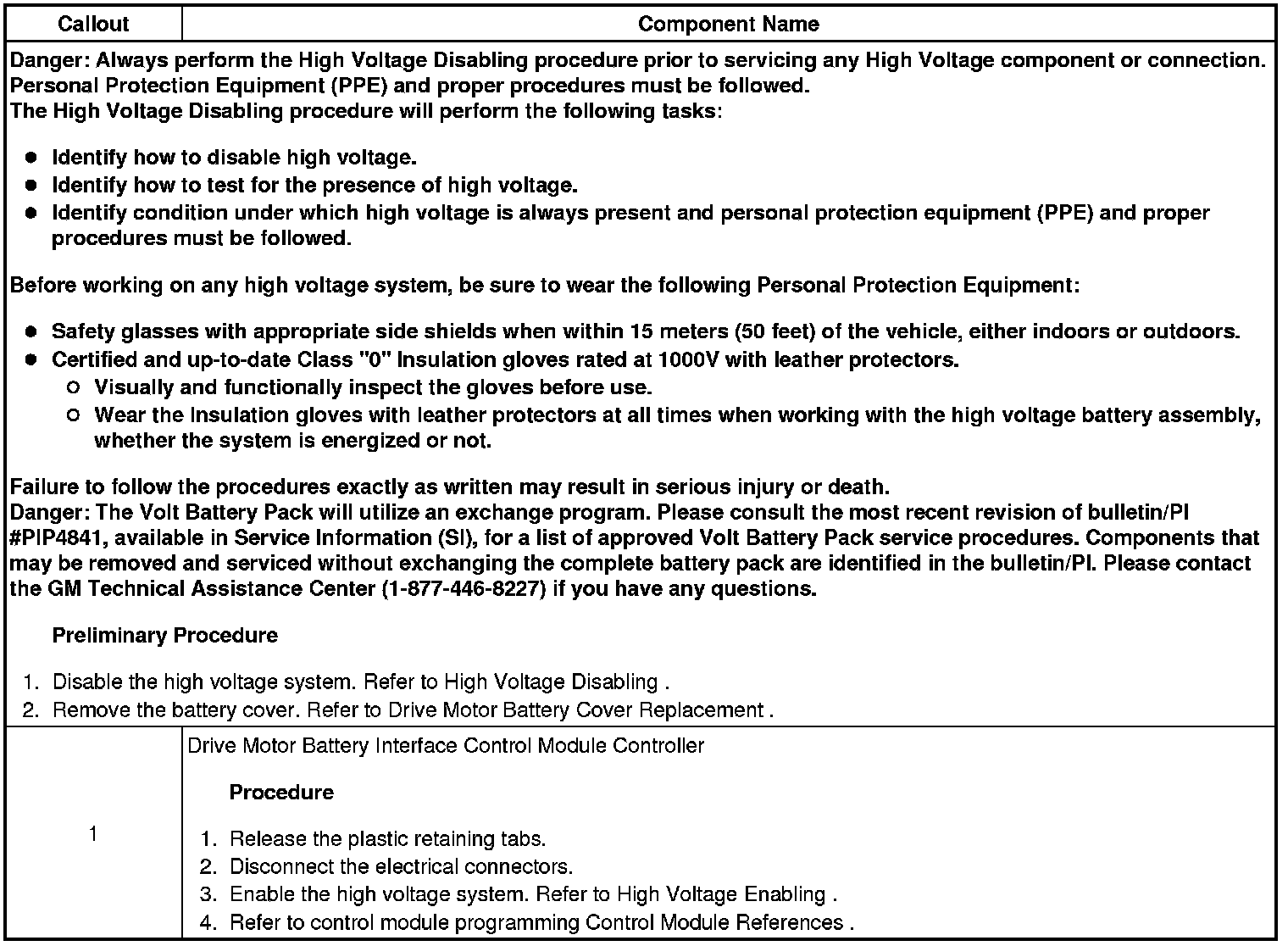

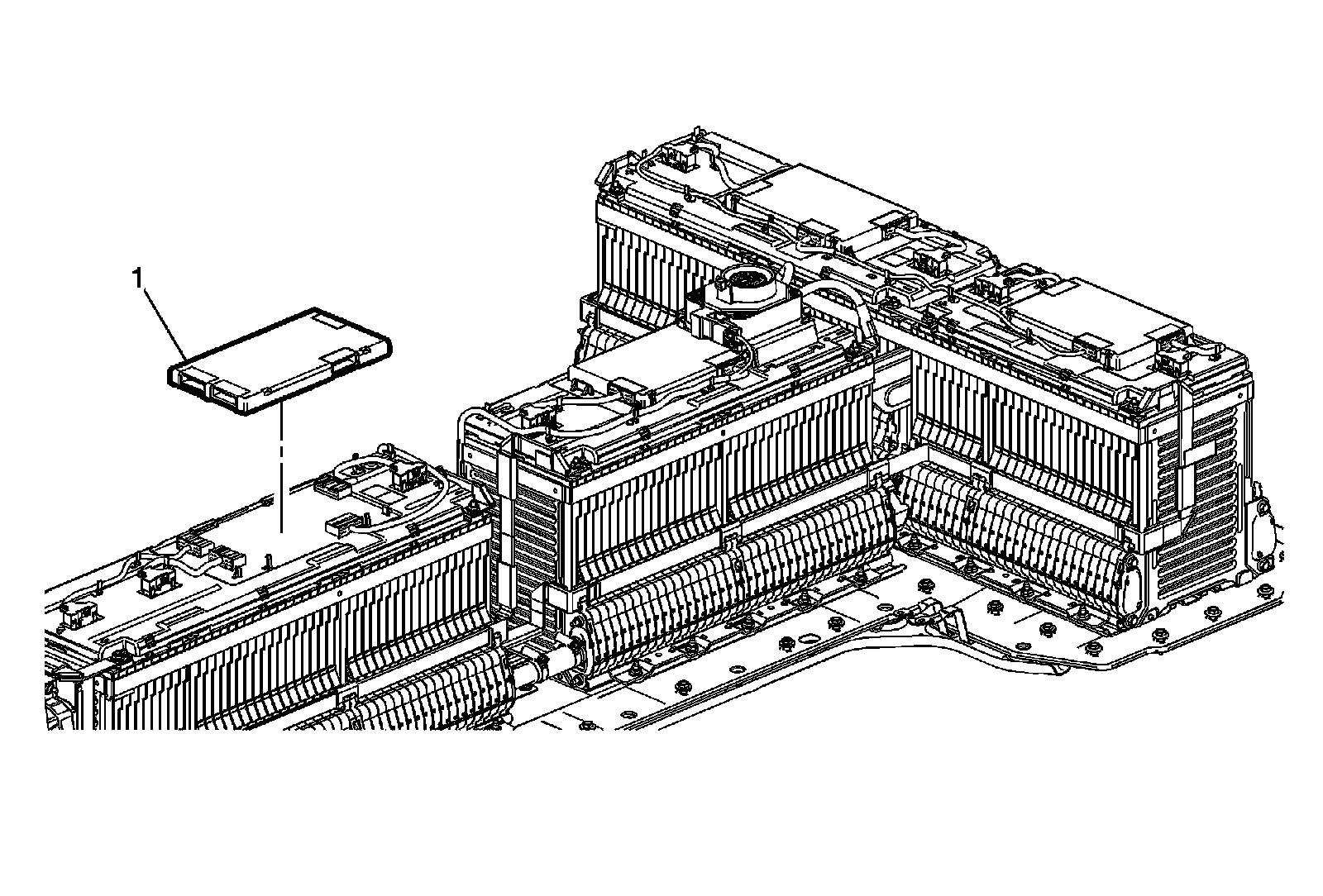

Drive Motor Battery Interface Control Module Replacement (Module 1)
Drive Motor Battery Interface Control Module Replacement (Module 1)
