Center Console Components

Instrument Panel/Center Console Component Views

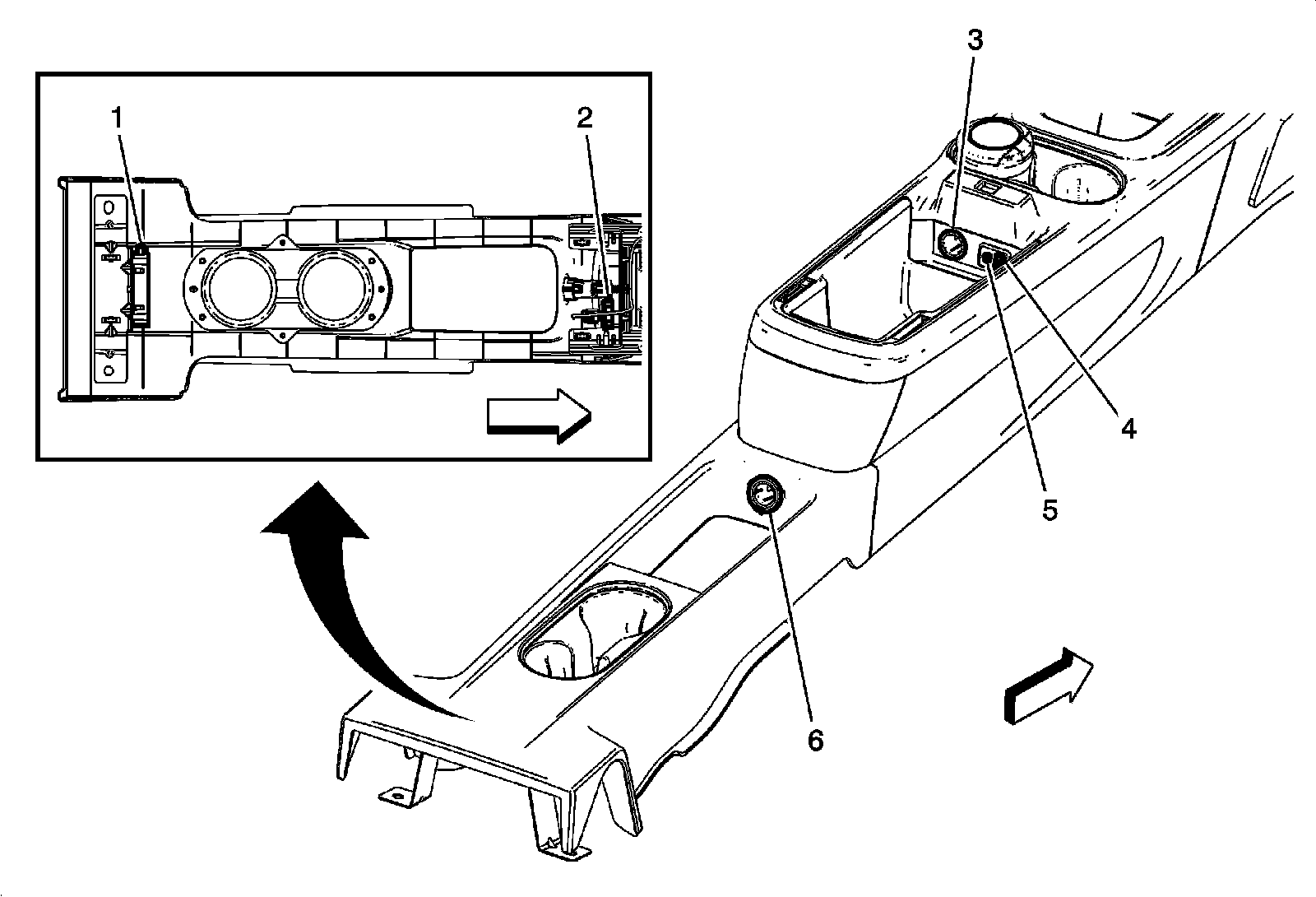

Center Console Components




1 - T10E Keyless Entry Antenna - Rear Compartment
2 - T10K Keyless Entry Antenna - Center Console Rear
3 - X80H Accessory Power Receptacle - Center Console
4 - X92 USB Receptacle
5 - X83 Auxiliary Audio Input
6 - X80L Accessory Power Receptacle - Rear Console
