Steering Column Components

Instrument Panel/Center Console Component Views

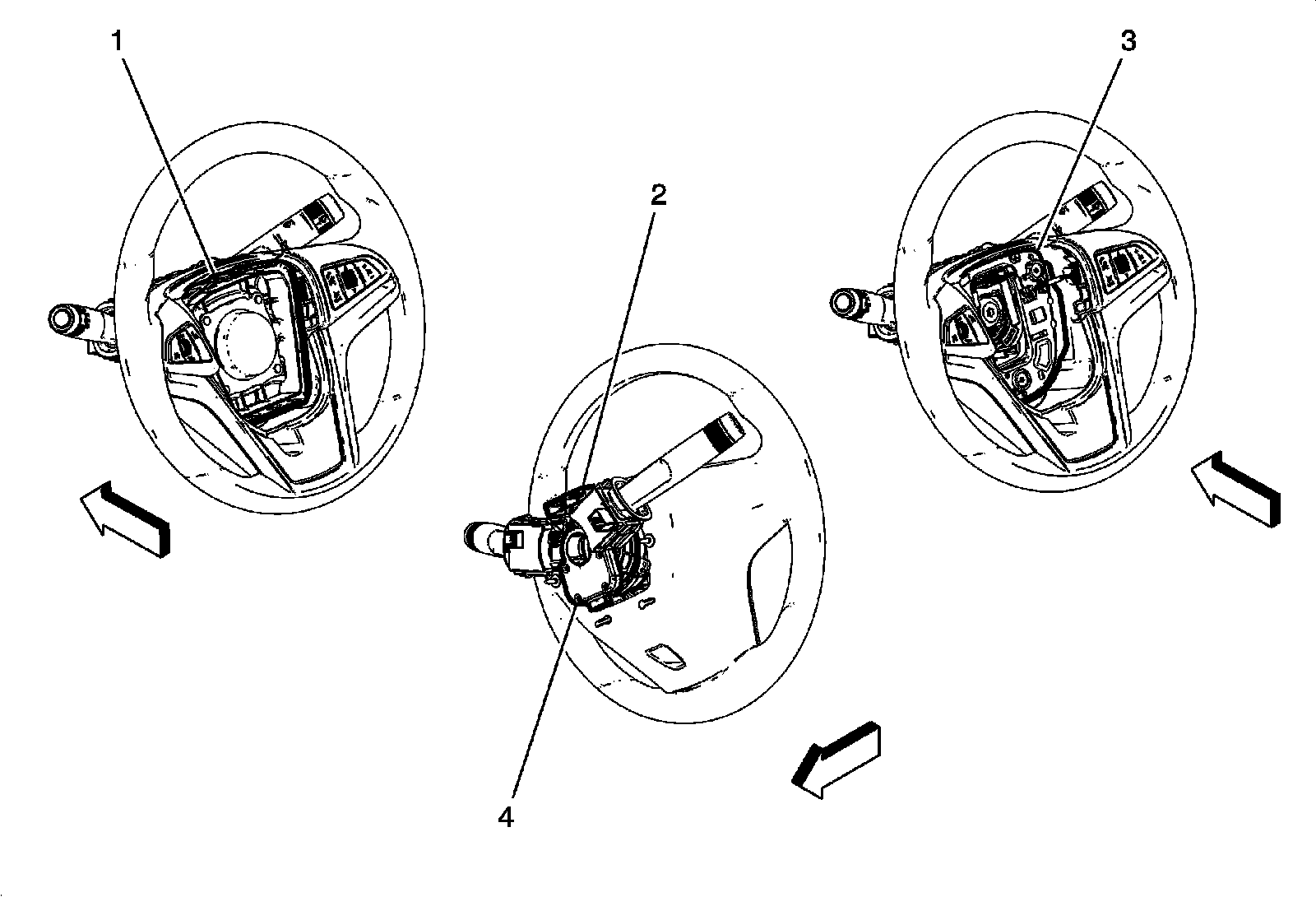

Steering Column Components




1 - F107 Steering Wheel Air Bag
2 - X85 Steering Wheel Air Bag Coil
3 - S33 Horn Switch
4 - B99 Steering Wheel Angle Sensor
