Timing Component Alignment Marks: Locations

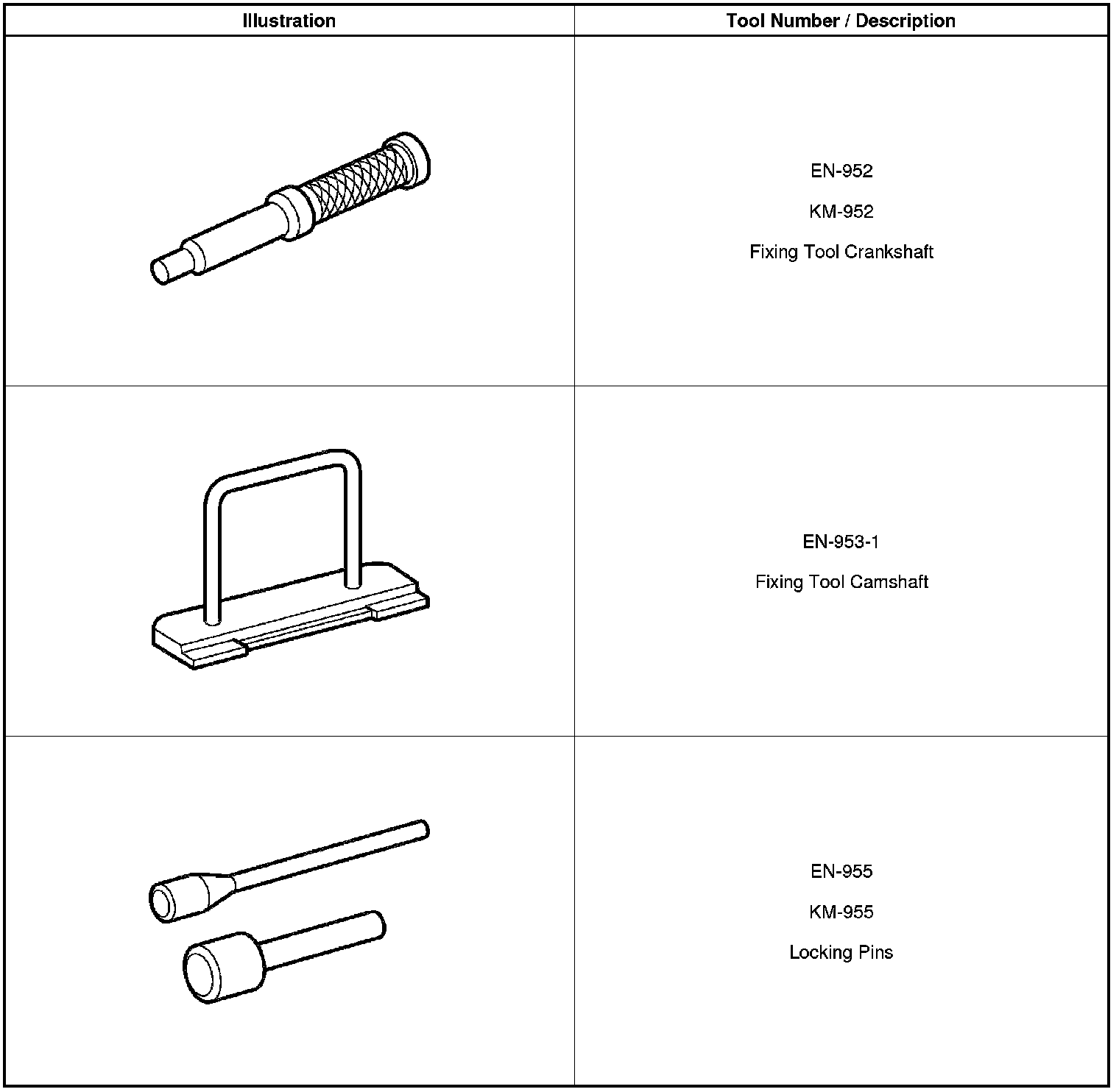

Special Tools
* EN-952 - Fixing Pin
* EN-953-A - Fixing Tool
* EN-955-1 - Fixing Pin from EN-955 - Kit






The engine should be adjusted to TDC.
The crankshaft should be fixed with EN-952 - fixing pin.
The camshaft should be fixed with EN-953-A - fixing tool.
