Air Flow Meter/Sensor: Locations

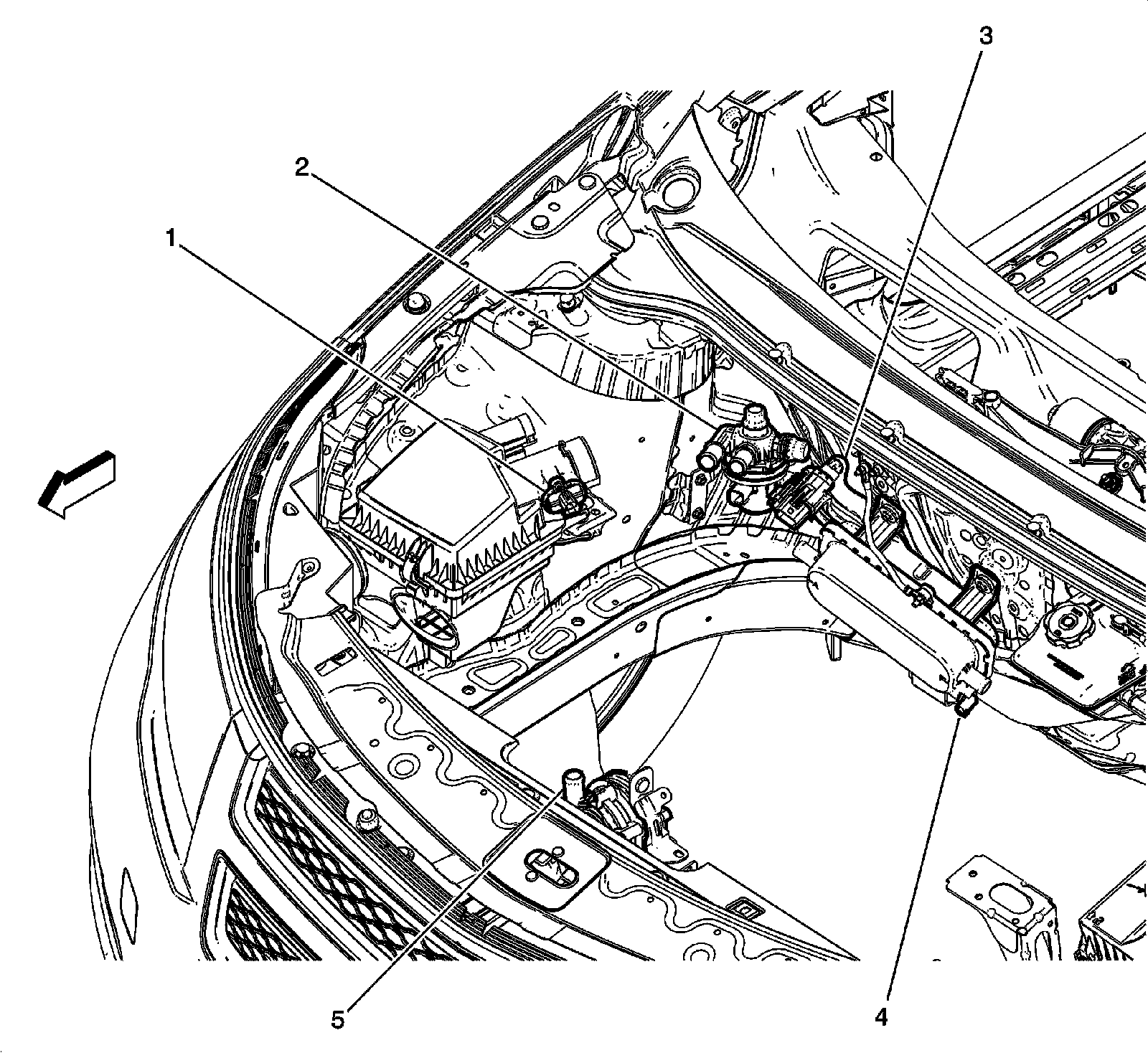

Front of Vehicle/Engine Compartment Component Views

Engine Compartment Components - Right




1 - B75B Mass Air Flow/Intake Air Temperature Sensor
2 - Q65 Hybrid Battery Pack Coolant Control Valve
3 - B135 Coolant Heater Temperature Sensor
4 - K10 Coolant Heater Control Module
5 - G36 Auxiliary Heater Coolant Pump
