Knock Sensor: Locations

Powertrain Component Views

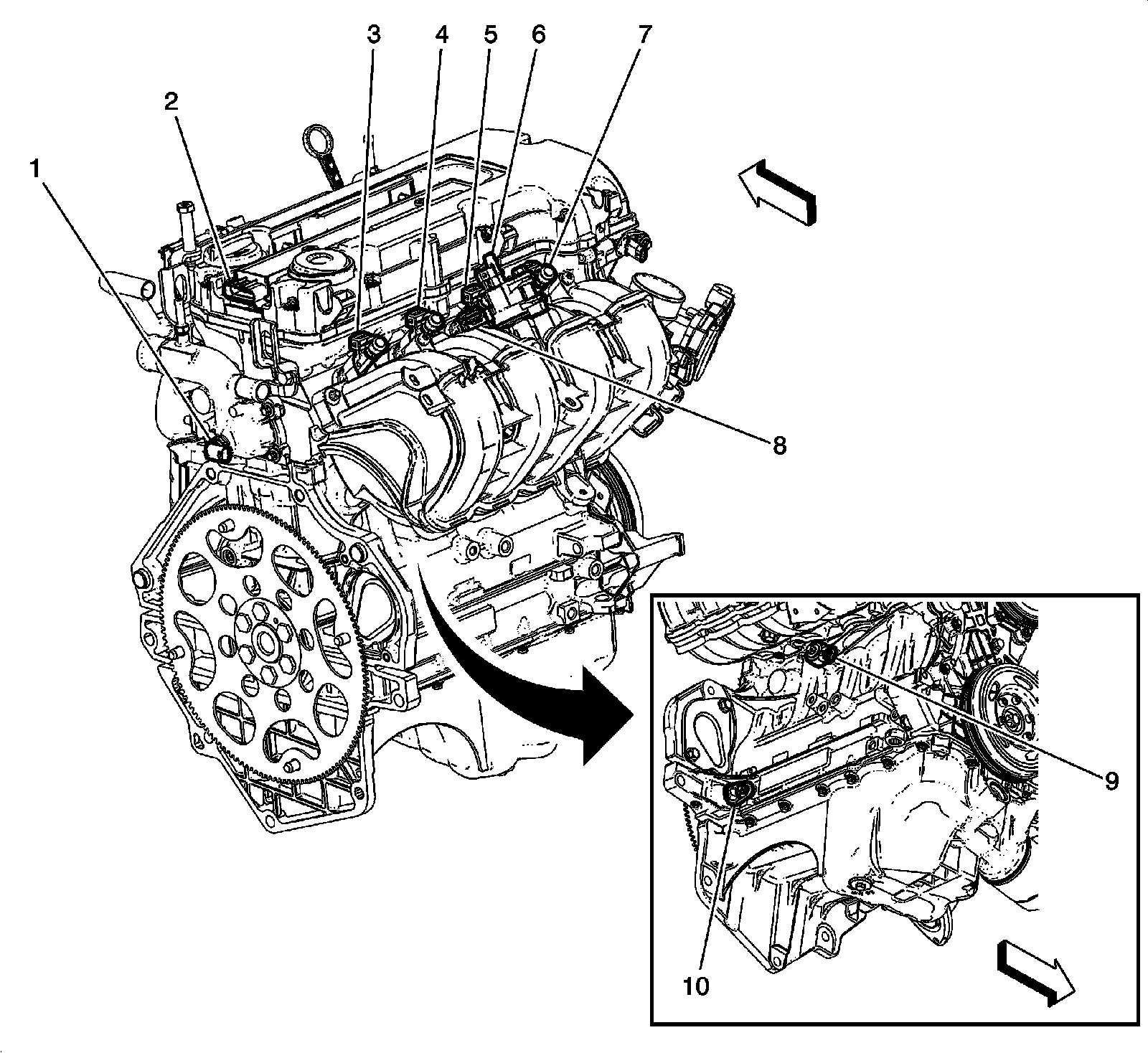

Left Rear of Engine Components




1 - B34 Engine Coolant Temperature Sensor
2 - K35 Ignition Coil Module
3 - Q17D Fuel Injector 4
4 - Q17C Fuel Injector 3
5 - Q12 Evaporative Emission Purge Solenoid Valve
6 - Q17B Fuel Injector 2
7 - Q17A Fuel Injector 1
8 - B74 Manifold Absolute Pressure Sensor
9 - B68 Knock Sensor
10 - B26 Crankshaft Position Sensor
