Water Pump

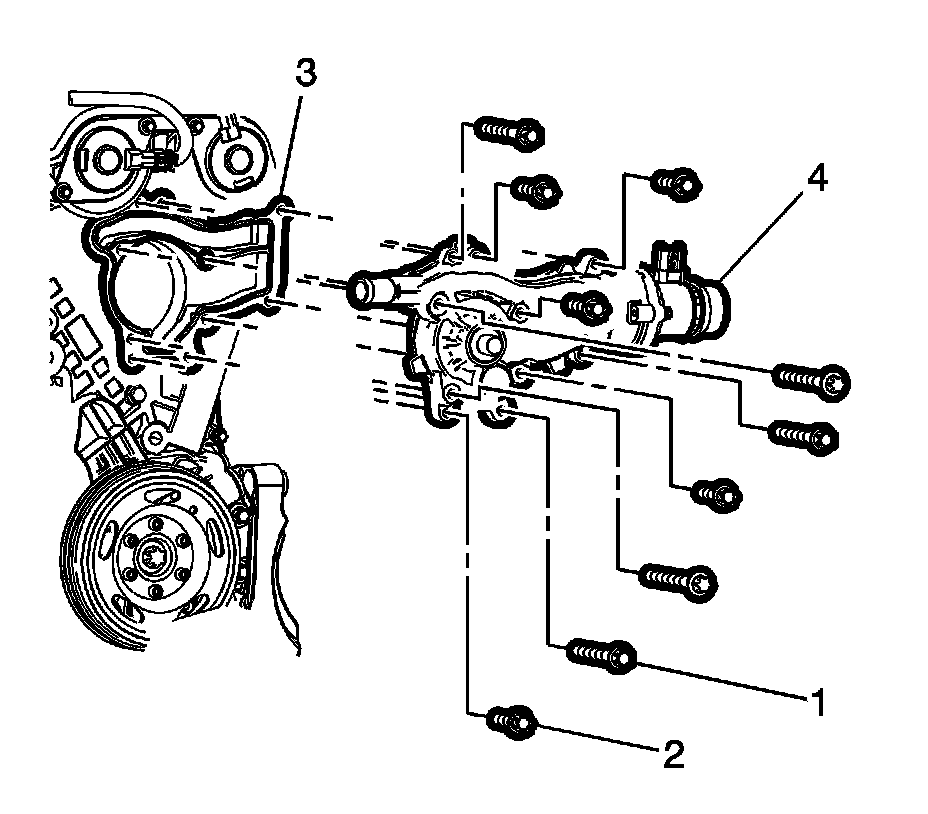

Install the water pump (4) and a NEW water pump gasket (3).
Install the 5 short water pump bolts (2) and the 5 long water pump bolts (1) and tighten in a cross sequence to 8 Nm (71 lb in).
Install the water pump (4) and a NEW water pump gasket (3).
Install the 5 short water pump bolts (2) and the 5 long water pump bolts (1) and tighten in a cross sequence to 8 Nm (71 lb in).
