Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Rear)

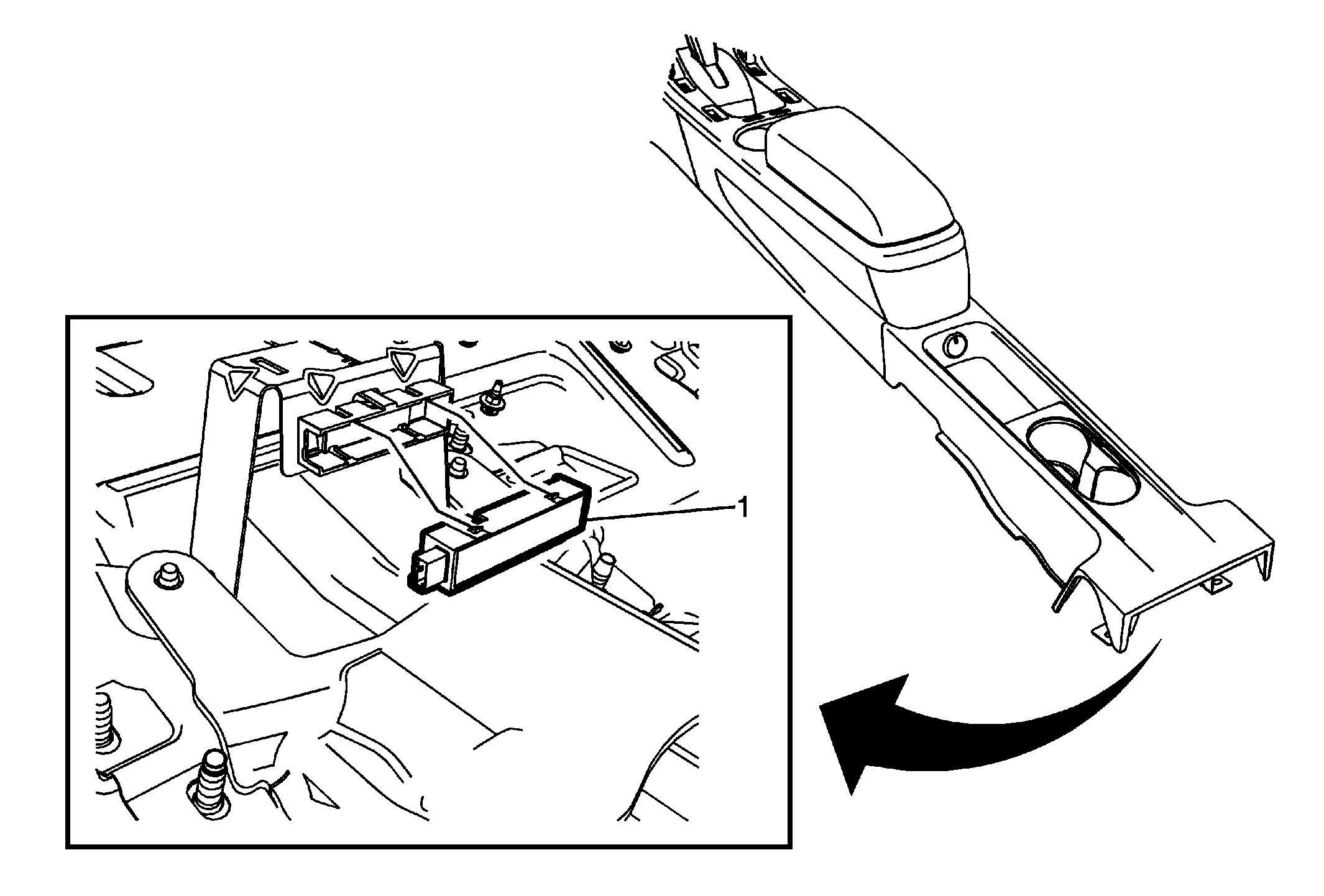

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor rear console. Refer to Front Floor Rear Console Replacement
1	Ignition Lock Key Transmitter Antenna Assembly Procedure Disconnect the electrical connector. Using the appropriate tool, unsnap tabs on the antenna from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the front floor rear console. Refer to Front Floor Rear Console Replacement

Ignition Lock Key Transmitter Antenna Assembly

Procedure
