Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

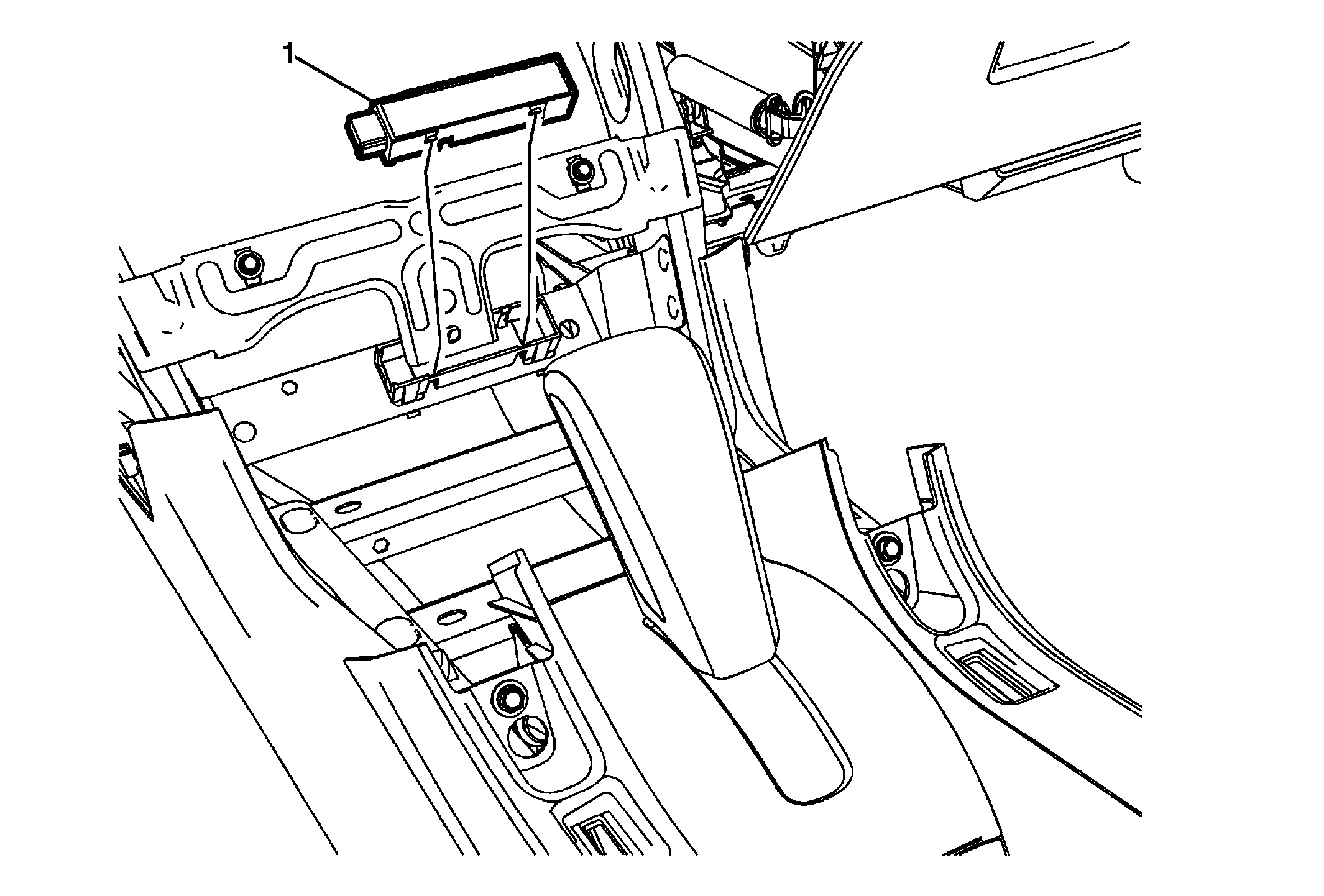

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower inner trim pad. Refer to Lower Trim Pad Retainer Replacement (Outer) , Lower Trim Pad Retainer Replacement (Inner)
1	Ignition Lock Key Transmitter Antenna Assembly Procedure Disconnect the electrical connector. Using the appropriate tool, depress tabs and unsnap antenna from bracket.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower inner trim pad. Refer to Lower Trim Pad Retainer Replacement (Outer) , Lower Trim Pad Retainer Replacement (Inner)

Ignition Lock Key Transmitter Antenna Assembly

Procedure
