Keyless Entry Control Module Replacement

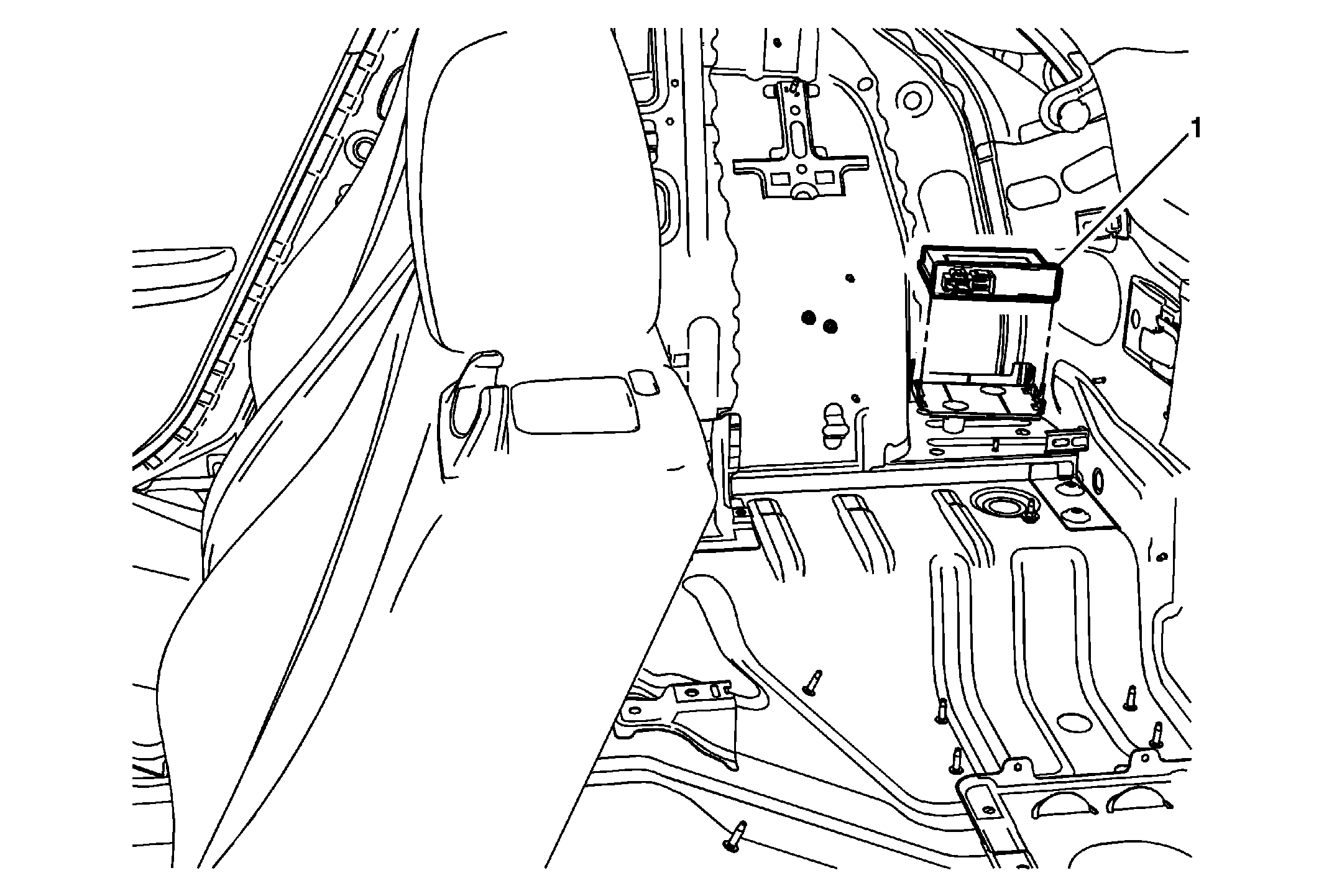

Fig 1: Keyless Entry Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right side quarter inner trim panel. Refer to Quarter Inner Trim Finish Panel Replacement .
1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Unsnap the receiver from the bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the right side quarter inner trim panel. Refer to Quarter Inner Trim Finish Panel Replacement .

Keyless Entry Control Module

Procedure
