Remote Control Door Lock Receiver Replacement

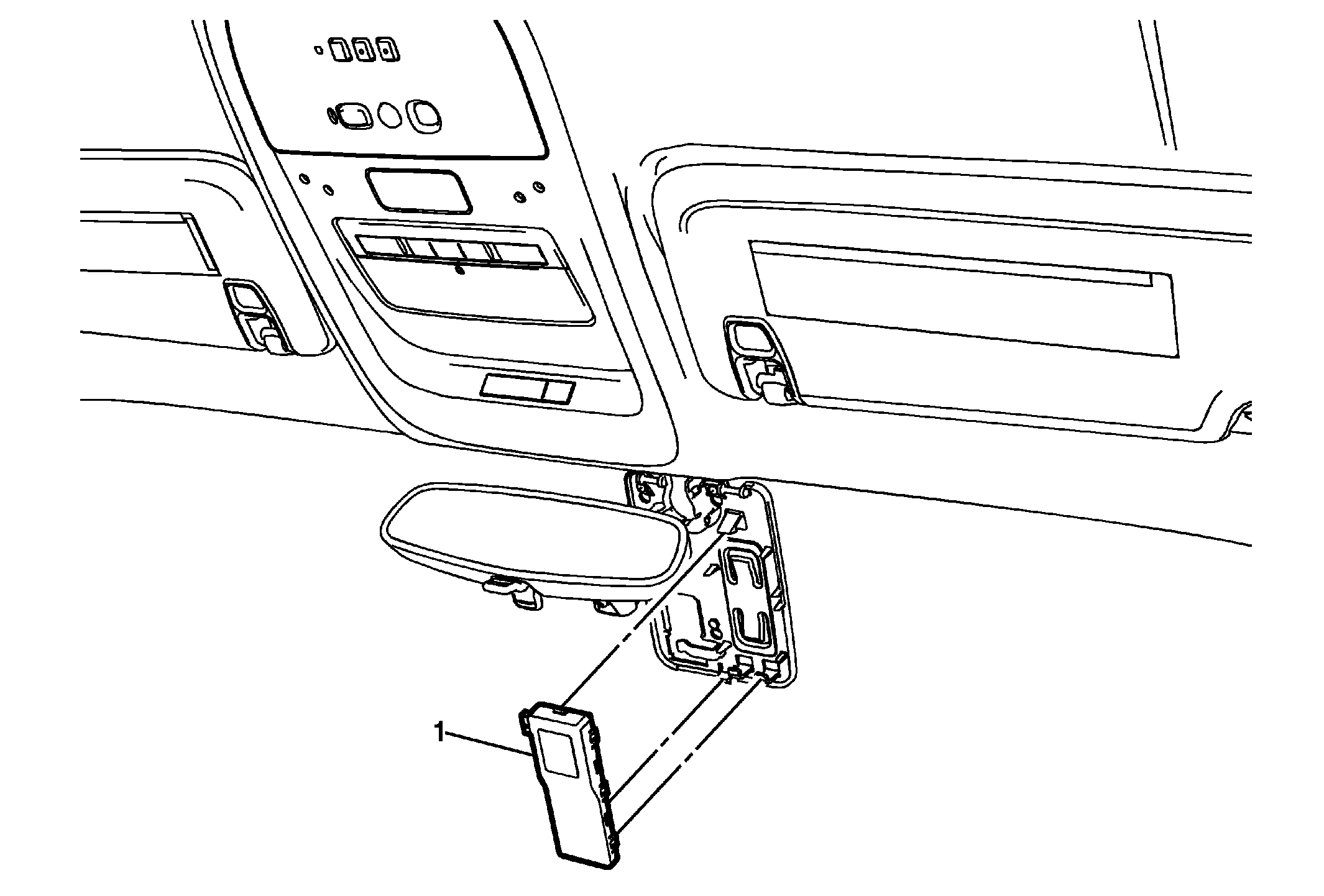

Fig 1: Remote Control Door Lock Receiver
GM2395003Courtesy of GENERAL MOTORS COMPANY
Remote Control Door Lock Receiver Replacement

Callout Component Name
Preliminary Procedure
Remove the inside rear view mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the receiver from the windshield bracket.
  3. For programming and set up, refer to Control Module References
