Keyless Entry Wiring Schematics

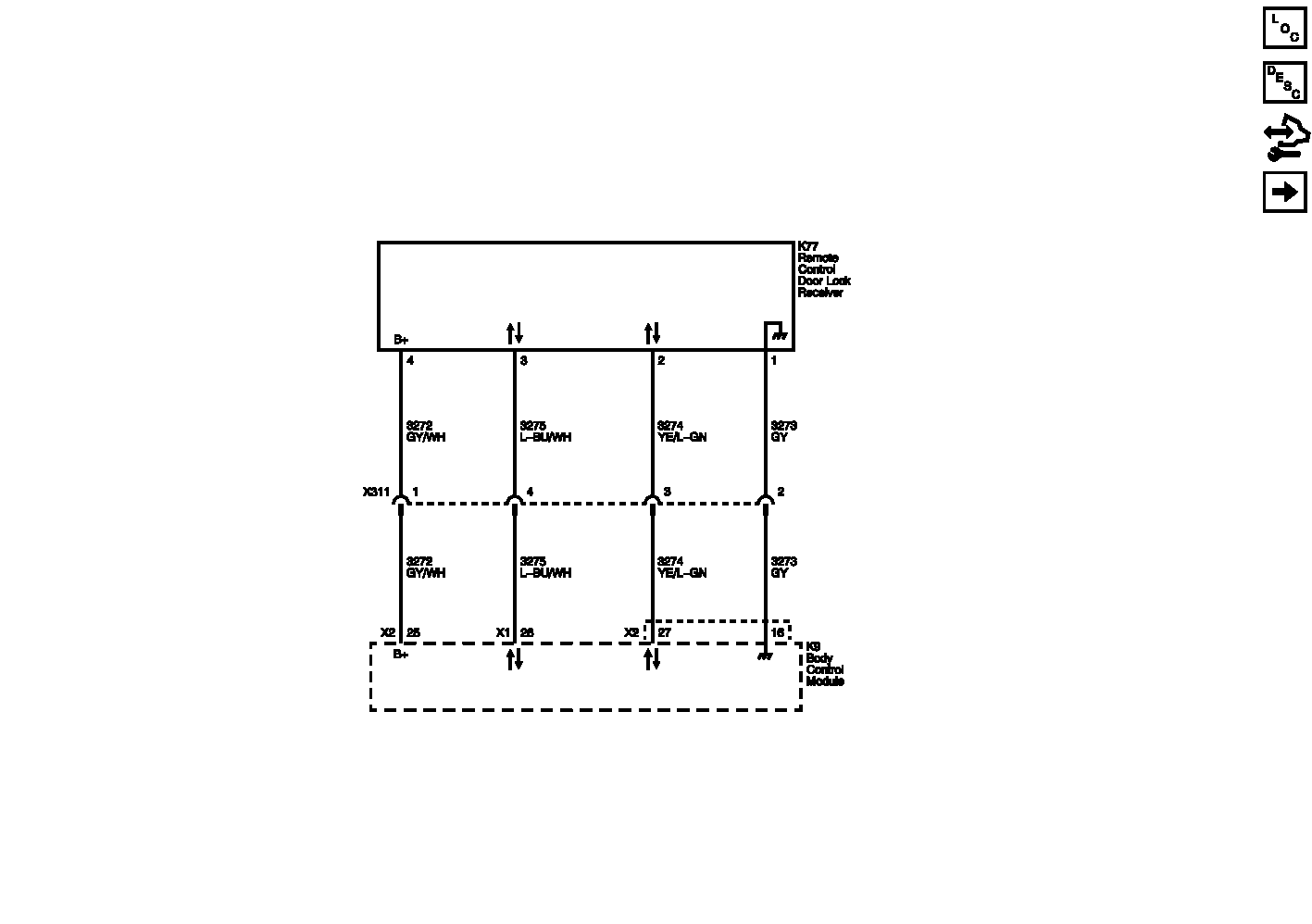

Fig 1: Keyless Entry Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
