Theft Deterrent Module Replacement

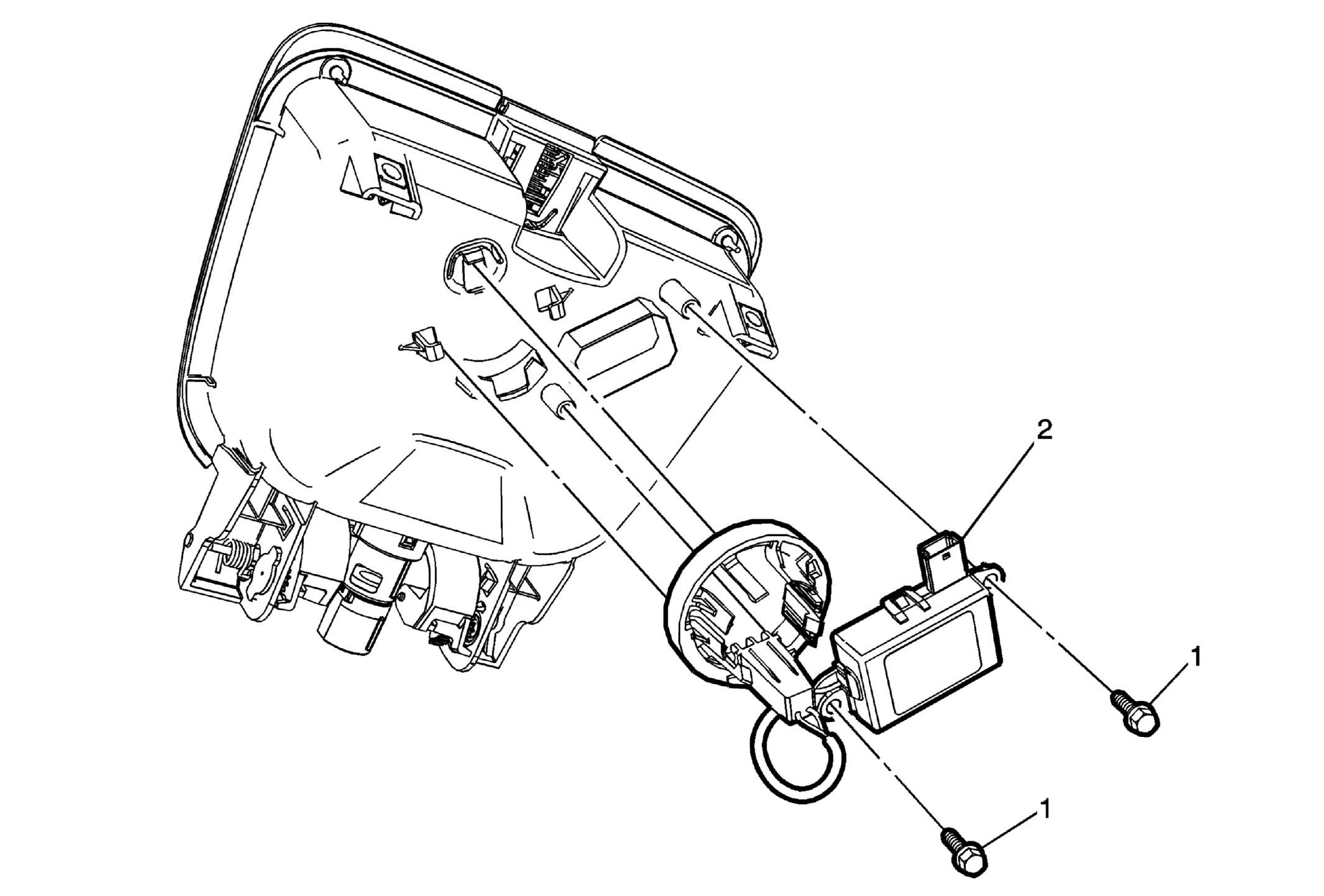

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper center compartment. Refer to Instrument Panel Upper Center Compartment Replacement .
1	Theft Deterrent Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Disengage the tabs on the module. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel upper center compartment. Refer to Instrument Panel Upper Center Compartment Replacement .

Theft Deterrent Module Fastener (Qty: 2)

CAUTION:

Theft Deterrent Module

Procedure
