Outside Remote Control Rearview Mirror Switch Replacement

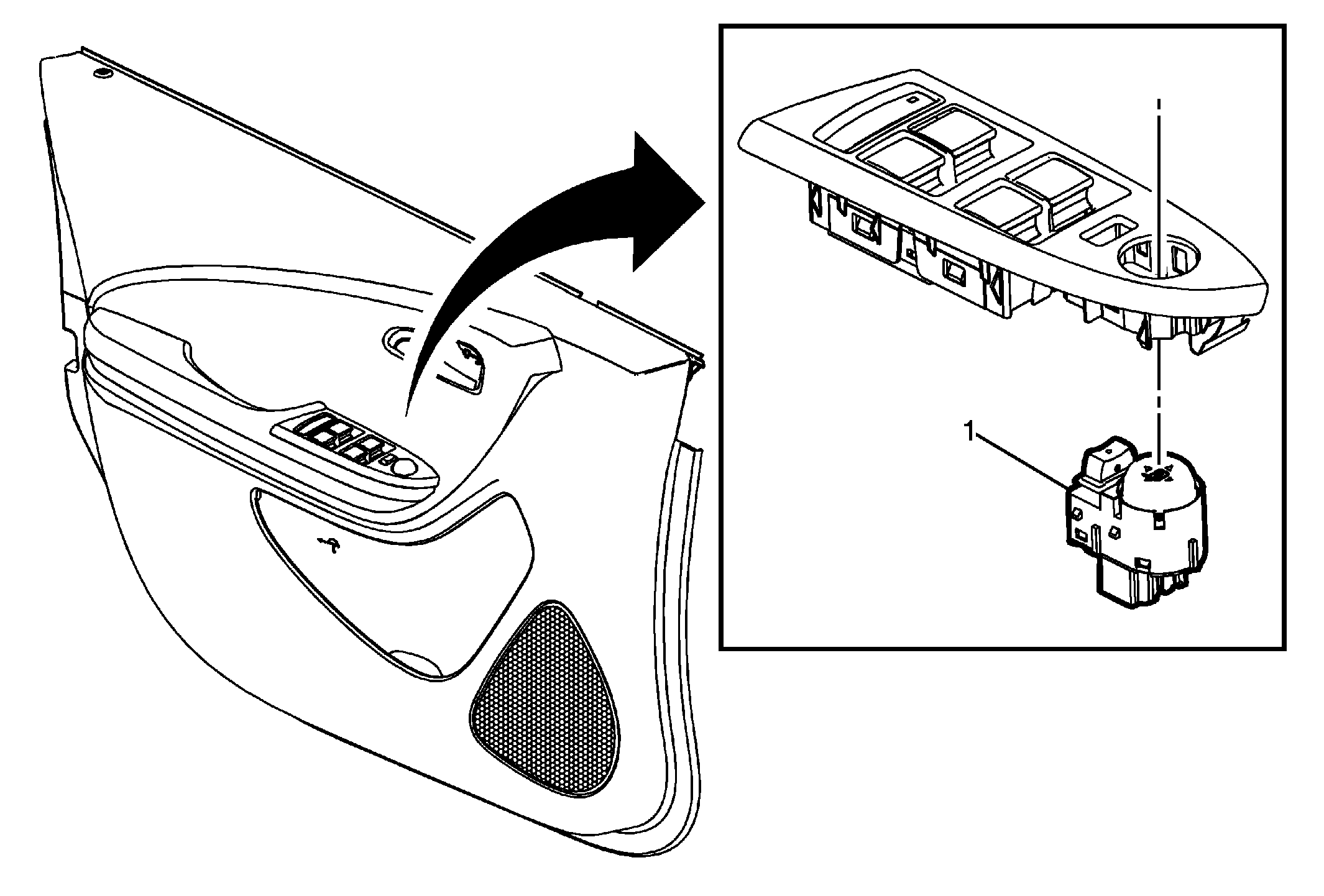

Fig 1: Outside Remote Control Rearview Mirror Switch

Courtesy of GENERAL MOTORS COMPANY

Outside Remote Control Rearview Mirror Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the drivers side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement (Passenger Side Door) , Front Side Door Accessory Switch Mount Plate Replacement (Drivers Side Door) .
1	Outside Remote Control Rearview Mirror Switch Assembly Procedure  Disconnect the electrical connector.
