Installation Procedure

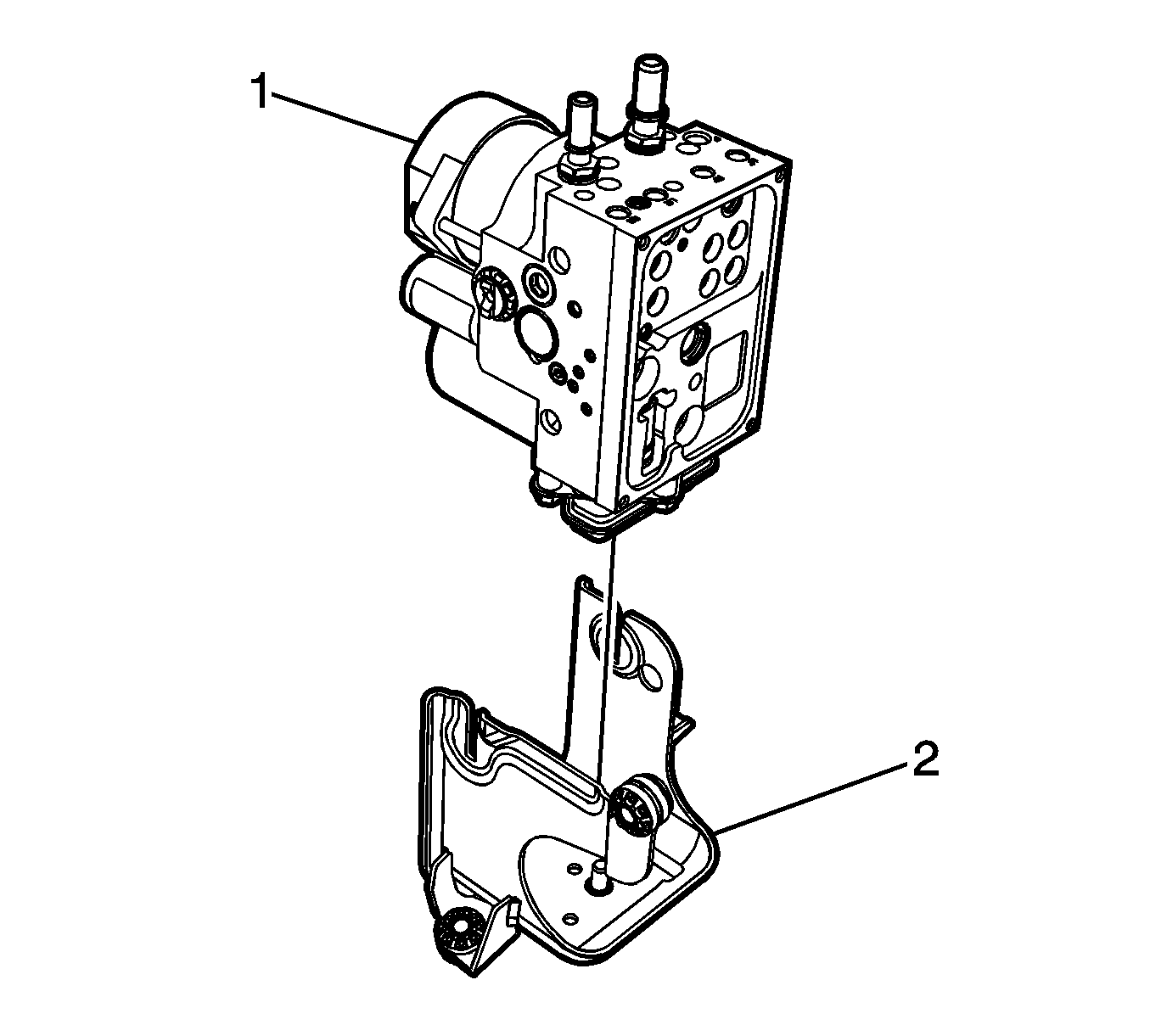

    Fig 1: BPMV Mounting Bracket
    GM2375851Courtesy of GENERAL MOTORS COMPANY
  1. Install the BPMV assembly (1) to the bracket (2).

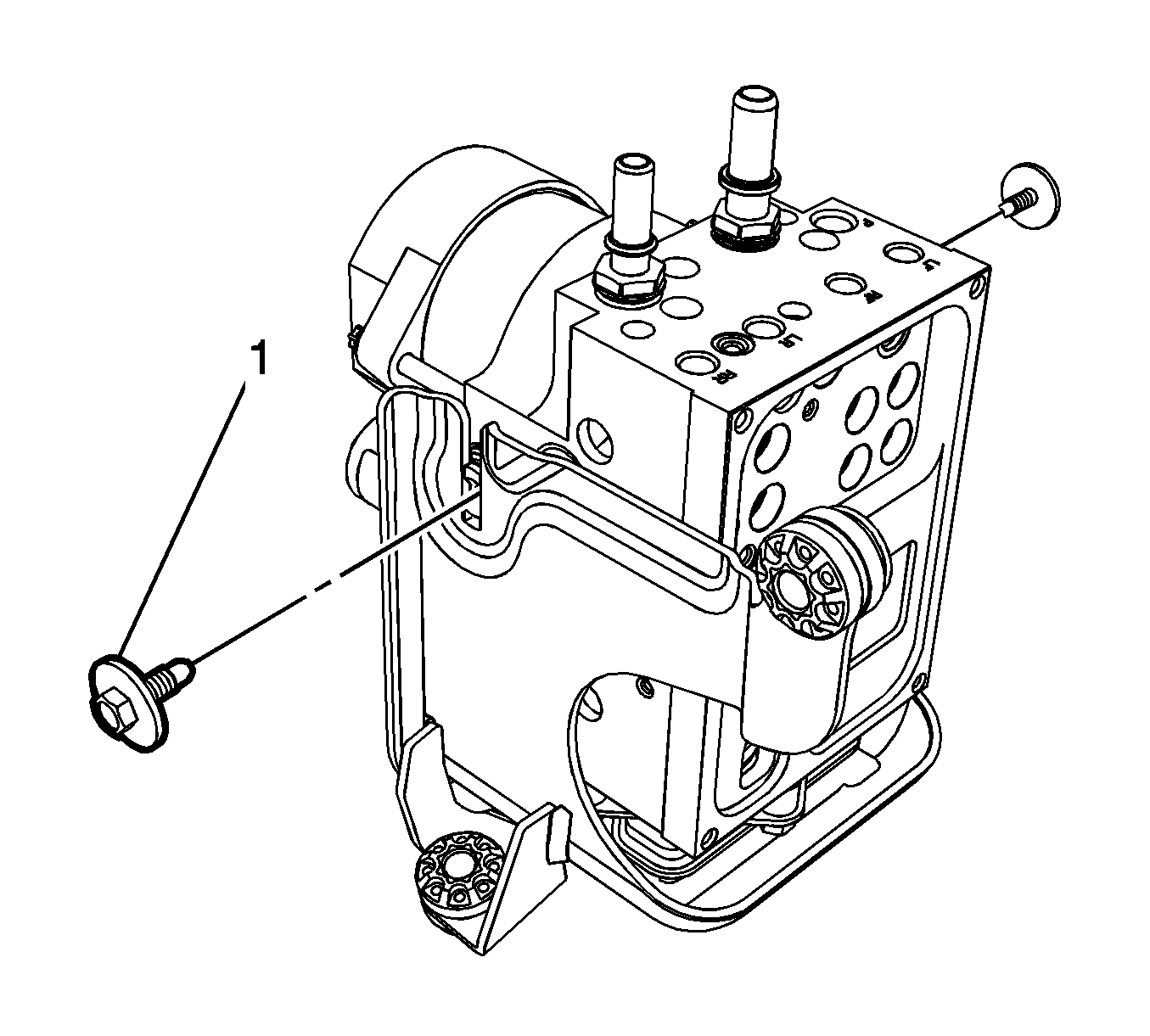

    2. Fig 2: Brake Pressure Modulator Valve (BPMV) And Bolts
    GM2375850Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 BPMV bolts (1) and tighten to 8 N.m (71 lb in).
  3. Install the EBCM. Refer to Electronic Brake Control Module Replacement .
